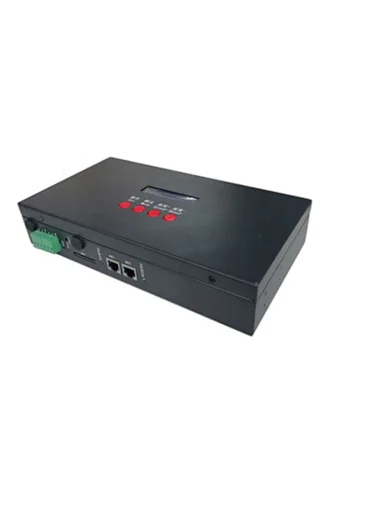

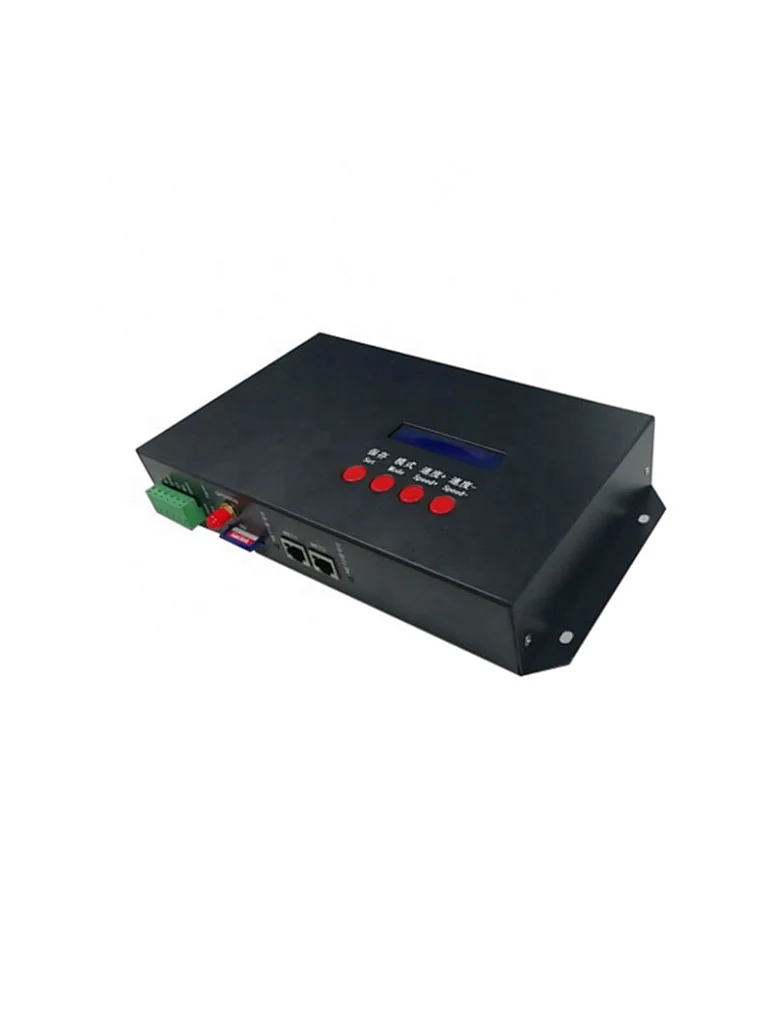

China XB-Z2 LED master pixel controller;can carry up to 160,000 pixels or 60 slaver controllers(T-700K/T-790)

Features

Salient features:
1. Powerful performance, up to 100,000 pixels or 50 sub-controllers can be loaded.
2. Integrate GPS/BDS satellite synchronization function and offline playback function into one, easy to use and reliable.
3. Any timing and multi-level encryption function can be realized.

Conventional features:
1. The playback content is stored in the SD card. The SD card can store up to 32 effect files. The SD card capacity supports 4G-32GB, supports single effect playback, effect loop playback, and effects acceleration and deceleration.
2. The main control can automatically/manually number the sub-control IDs. Multiple controllers can be numbered together or individually.
3. The controller adopts standard TCP/IP network protocol, and the signal transmission is more stable.
4. Support timing (holiday) playback.
5. Support GPS/BDS dual mode-satellite timing synchronization.
6. It can be used offline with our T-700K/T-790.
7. The IC controller for DMX lamps has its own address writing function; in addition, with our latest LedEdit-K software, you can set the one-key address writing function. Long press SET to write the address.

2. Support controller:
T-790 / T-700K


Specification

Working temperature: -20°C—75°C
Power supply: AC100—240V
Power consumption: 5W
Weight: 2.3kg
Data interfacenetwork port
Dimensions: L260mm * W160mm * H52mm
