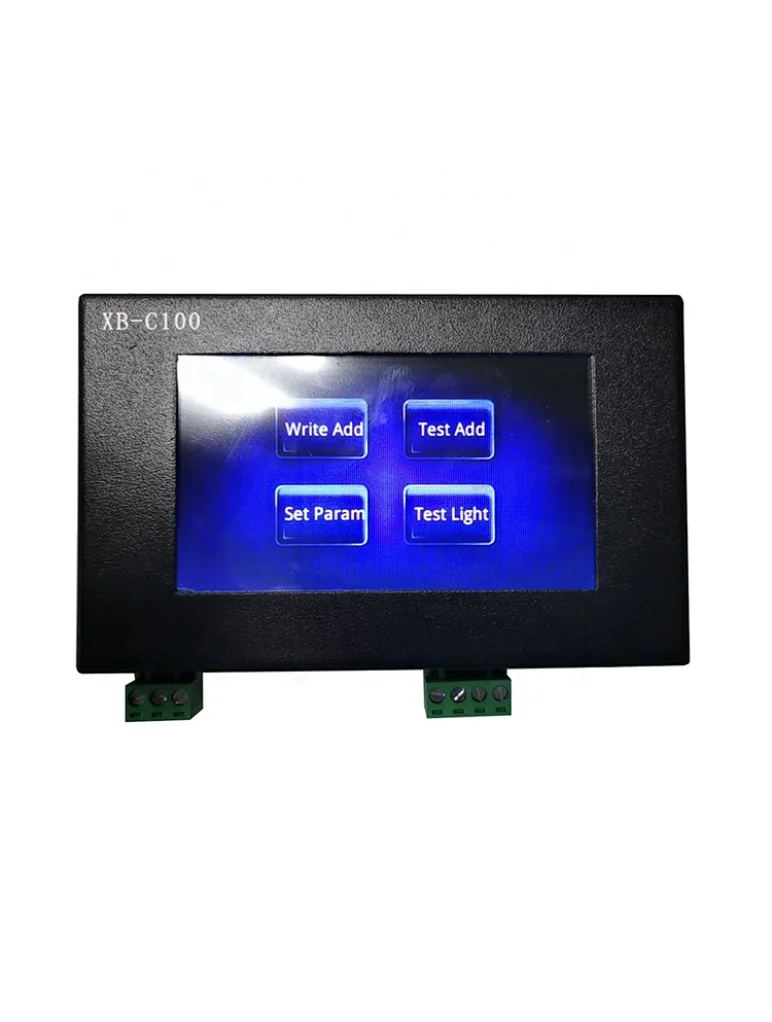

China XB-C100 RGB RGBW DMX 512 IC Chip address code writer
Features
1.XB-C100 code editor：Large display panel, convenient touch screen operation and rich display.
2.XB-C100 supports operating system upgrade.
3.XB-C100 adopts built-in battery, support continuous work for 10 hours.
4.XB-C100 supports mainstream model DMX512 chip, can write code and write parameters to DMX512IC.
5.XB-C100 can perform DMX512IC lamp channel address test and test results.
6.XB-C100 port outputs enhanced TTL and 485 differential (DMX) signals, which can load TTL/DMX512 lamps.
7.XB-C100 can support maximum 512/2048 pixels (DMX lamps with a maximum of 512 pixels, for example with three channels).
8.XB-C100 22 built-in test effects (optional three-channel / four-channel built-in effects).
9.XB-C100 can insert SD card to play effects (software effect output selection K-1000), using the same as the K-1000C controller.
| Code editor interface and indicator definition | |||
| No. | Name | Port silkscreen | Definition |
| 1 | Charging port | VCC/GND/VCC | DC12-24V power supply socket |
| 2 | Power Indicator | POWER | Power indicator (normally on when power on) |
| 3 | Status Indicator | Status | Status Indicator |
| 4 | SD card slot | SD | SD card slot (play program) |
| 5 | Signal output port | GND/A/B/ADDR | Single wire DMX512 connection port |
| 6 | USB charging port | DC5V | USB DC 5V power supply port |
| 7 | Switch | SWITCH | Code editor switch |
| 8 | Touch screen | / | Code writer operation panel (touch screen) |
| Support IC | IC Model | |
| UCS series | UCS512-A | UCS512-B |
| UCS512-C4 | UCS512-CN | |
| UCS512-D | UCS512-E (NOTE) | |
| UCS512-F | UCS512-G6 | |
| SM series | SM1651X-3CH | SM1651X-4CH |
| SM17512 | SM1752X | |
| SM17500 | SM17500 | |
| SM1852X | ||
| TM Series | TM512AB | TM512AL |
| TM512AC | TM512AD | |
| TM512AE | ||
| HI Series | Hi512A0 | Hi512A4 |
| Hi512A6 | Hi512D | |
| GS Series | GS8511 | GS8512 |
| GS8513 | GS8515 | |
| QE Series | QED512P | |
