型号
T-700K LED controller
交货:
EXW
最小起订量:
5 个
供货能力:
300000 个 / 月
原出产地:
深圳
备货期:
7 天
数量:

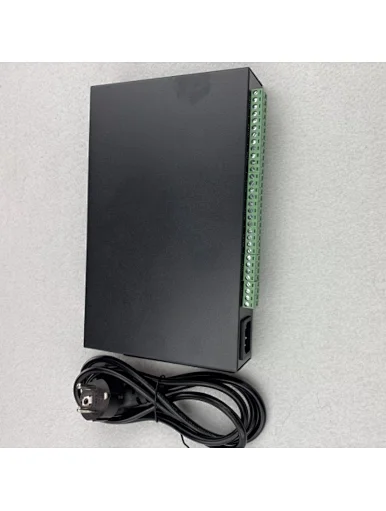

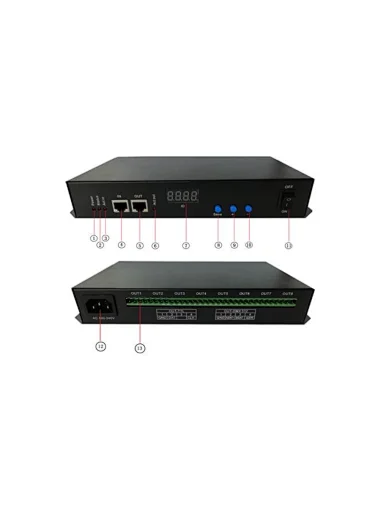

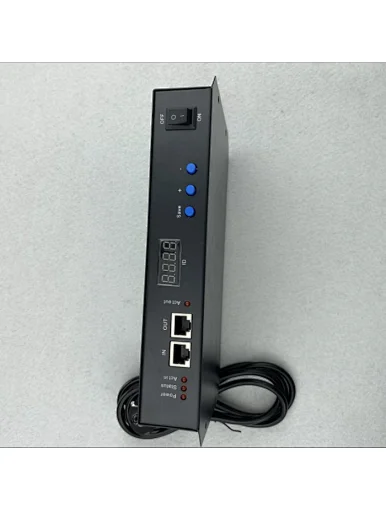

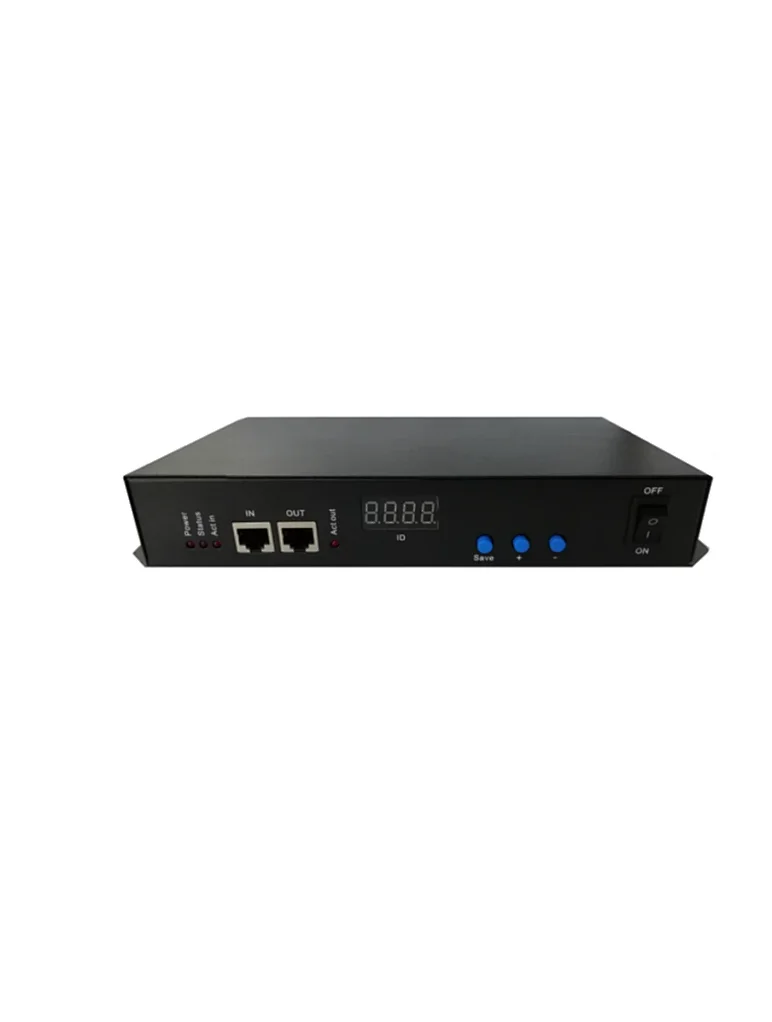

China PC online AC100-240V T-700K digital led strip Sub controller

Product Detail

Features

1.32-65536 gray level control, software Gamma correction processing.
2.Support various point, line, and surface light sources, various rules, and special-shaped processing.
3.Each sub-control has 8 ports, each port can be equipped with a maximum of 512 (DMX)/768 (TTL) pixel lights, and output enhanced TTL and 485 differential signals.

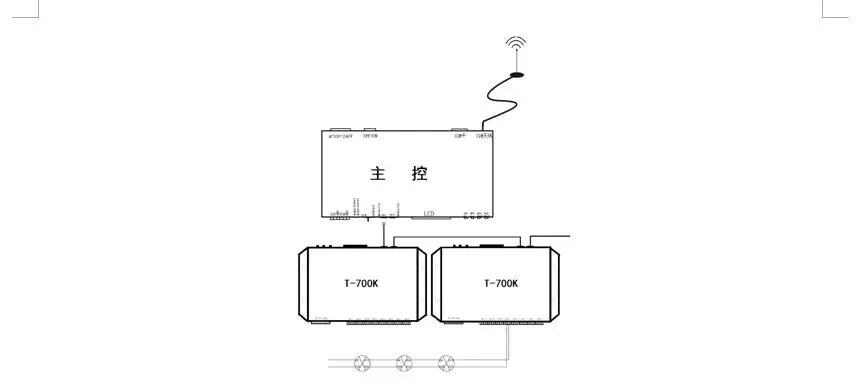

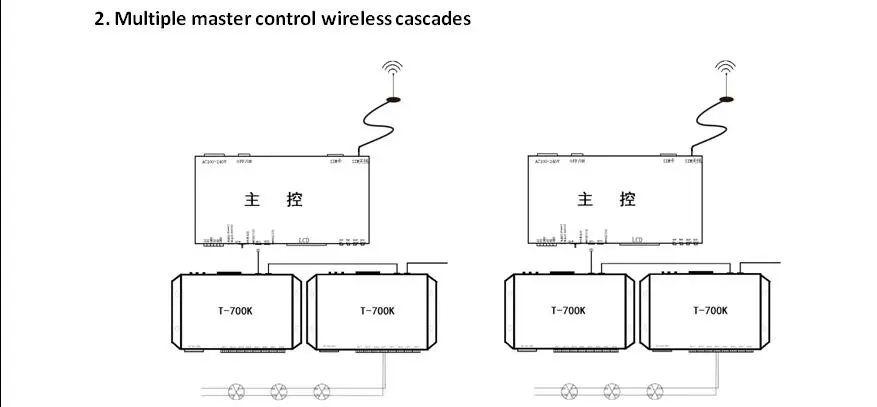

4.Adopt the control method of master control and sub-control, the playback effect is stored in the SD card of the main controller (offline player), the same project only needs to insert the main control card, and the sub-control does not need to insert the card.

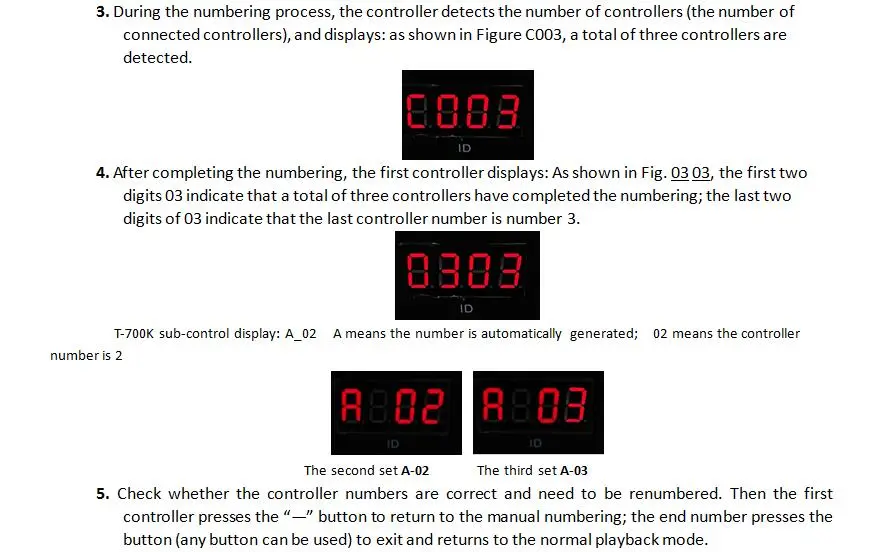

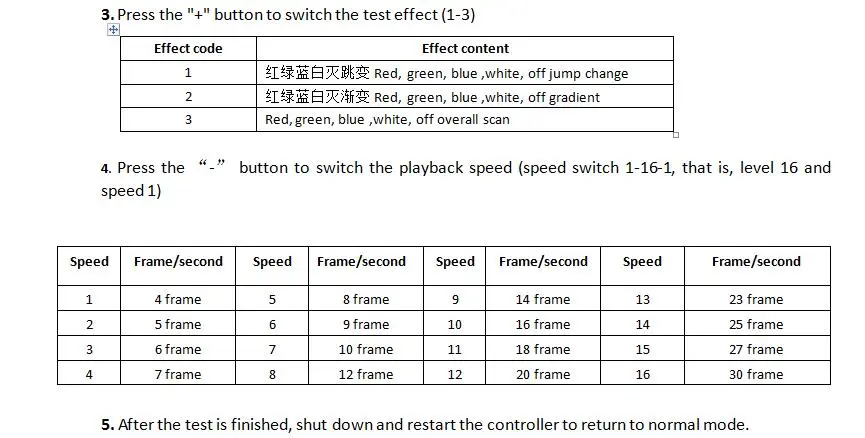

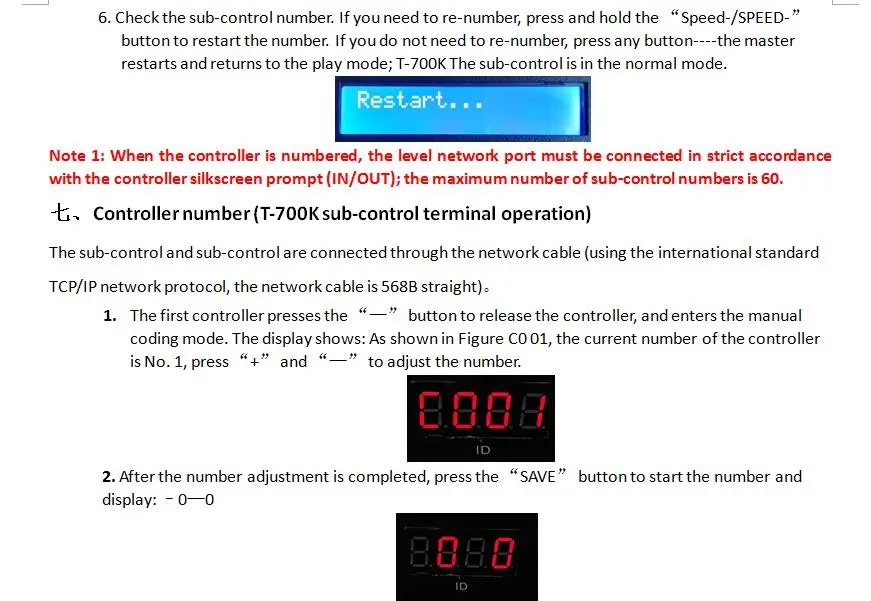

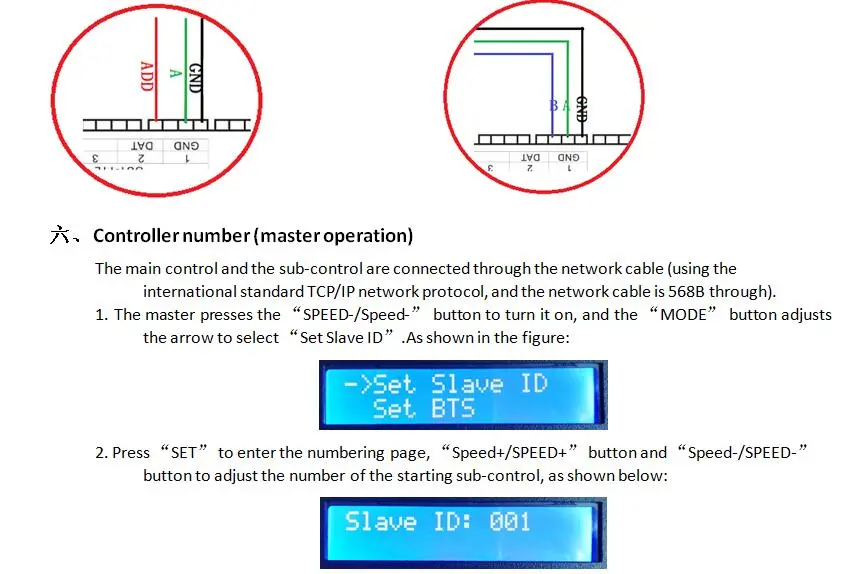

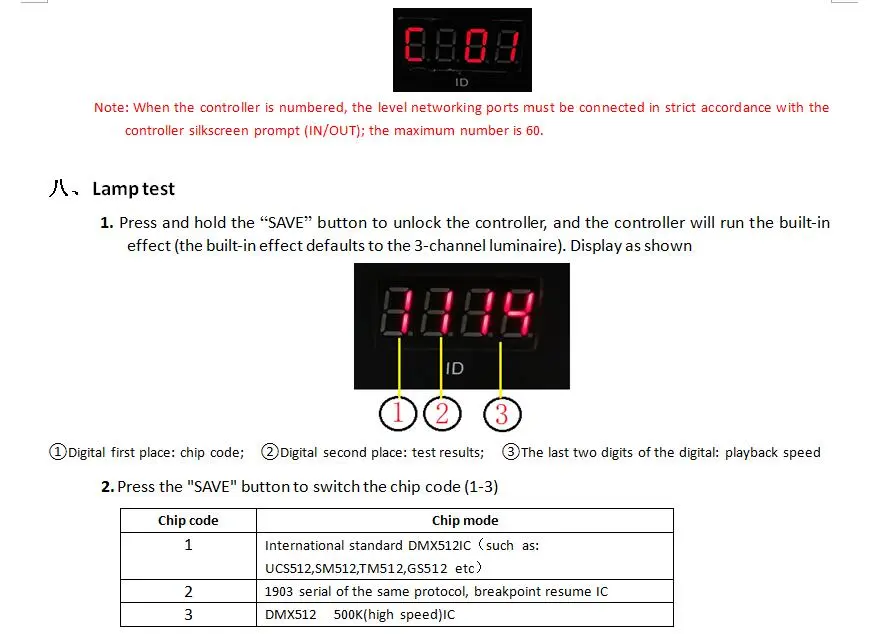

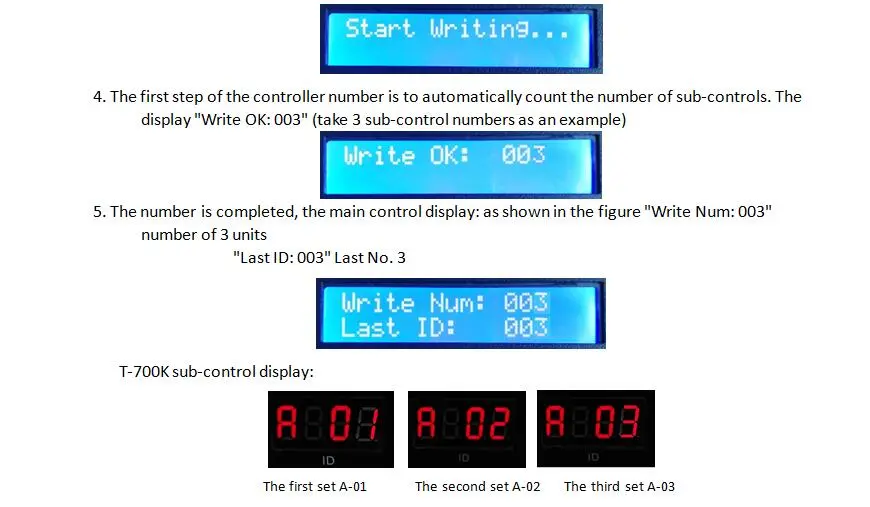

5.Sub-control number: The master control number the sub-controller, and the sub-controller also numbers the individual. 6.Sub-control test function: select the lamp loaded IC by adjusting the button, with 3 kinds of test programs (the built-in effect is loaded with 3 channels by default).
7.A single master (offline player) can load up to 50 sets of sub-controllers or up to 100,000 points.
8.The communication between the controllers adopts the international standard TCP/IP network protocol.


Specification

Input Voltage: DC9V
Power Consumption: 1W
Drive Pixels Number: 400000
Weight: 1.3KG
Dimension: L183 x W139 x H40
Carton Size: L205 x W168 x H69

Supported Chips (software edition select T-700K )

Support chips

Max. support lights

Remarks

International standard DMX512(like:UCS512,SM512,TM512,GS512 etc)

4096 pixels

Suggest to support 2400 pixels

UCS19**,ucs29**,ucs89**,ucs1603,ucs5603(UCS TTL/SPI /IC)

6144 pixels

Suggest to support 4096 pixels

SM16703,09,12,SM16716,16726(SM full series TTL/SPI signal IC)

6144 pixels

——

TM18** series,TM19** series

6144 pixels

——

WS28**(WS full series TTL/SPI signal IC)

6144 pixels

——

GS8205,8206,8208

6144 pixels

——

P9813,9823,9883

6144 pixels

——

APA102

6144 pixels

——

SK6812

6144 pixels

——

MY9231

6144 pixels

——

GW6205

6144 pixels

——

INK1003

6144 pixels

——

LX1003,1103,1203 etc

6144 pixels

——

Remarks: More ICs are not listed one by one. For details, please refer to the on-board chip of LEDEdit software of the host computer, or consult our sales, technicians.

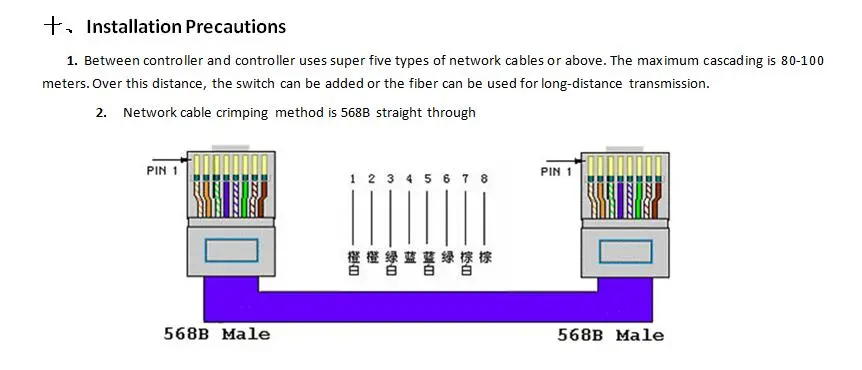

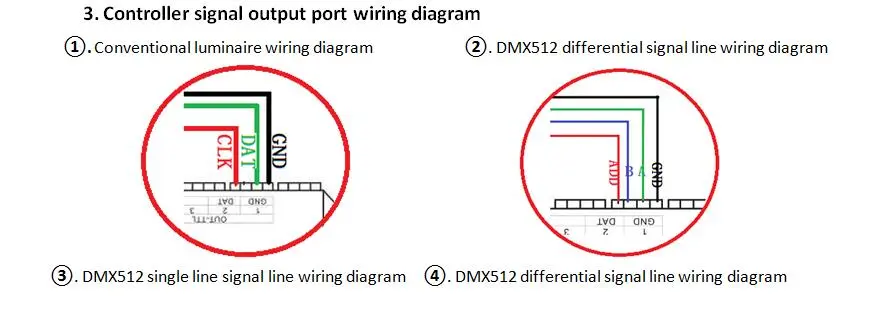

Connection Wire
