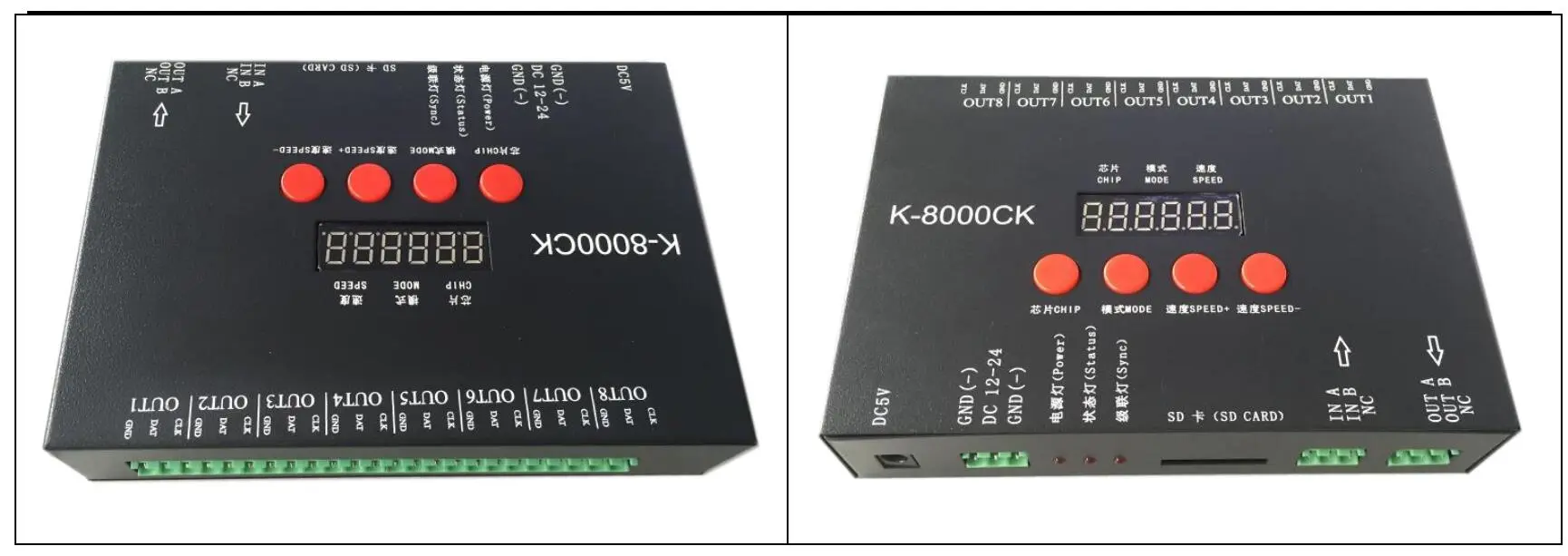

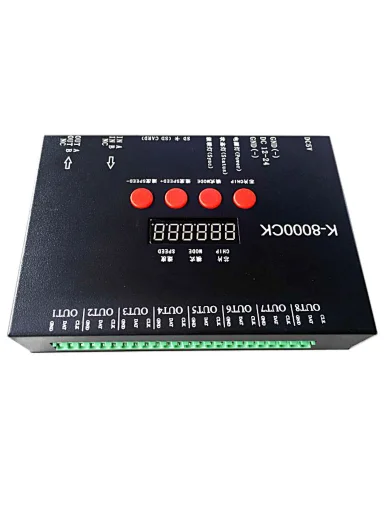

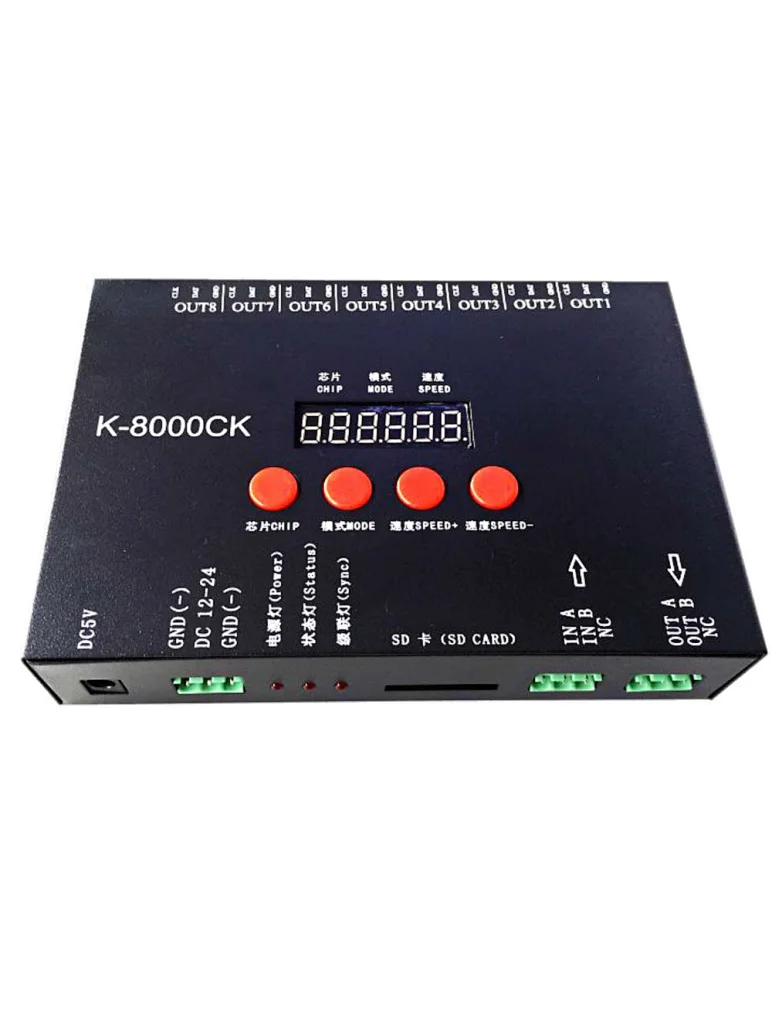

K-8000CLED控制器
K-8000C RGB LED Controller
EXW
5 个
300000个 / 月
深圳
7天
K-8000CLED控制器
数量
Feature

K-8000CK system features:

1.32 to 65536 degree Gray control, Gamma correction procession handle.

2.Support various point, line light source, and all kinds of rules and specific shaped handle.

3.The controller has eight ports output, each port can support up to 1024 lights.

4.The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.

5.The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

6.The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7.The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Notes: 1, The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec, 768 point pixel speed can reach up to 25 frames / sec, 1024 point pixel speed is about 22 frames / sec (the above parameter is an example of 1903 agreement IC, different IC have difference)

Specific parameter:

1.Memory card:

Type: SD card
Capacity: 128MB—32GB
Format: FAT or FAT32 format
Storage file: *.led

2.Physical parameter:

Working temperature:-30℃—85℃
Working power:DC 5V or DC 12-24V input
Power consumption: 5W
