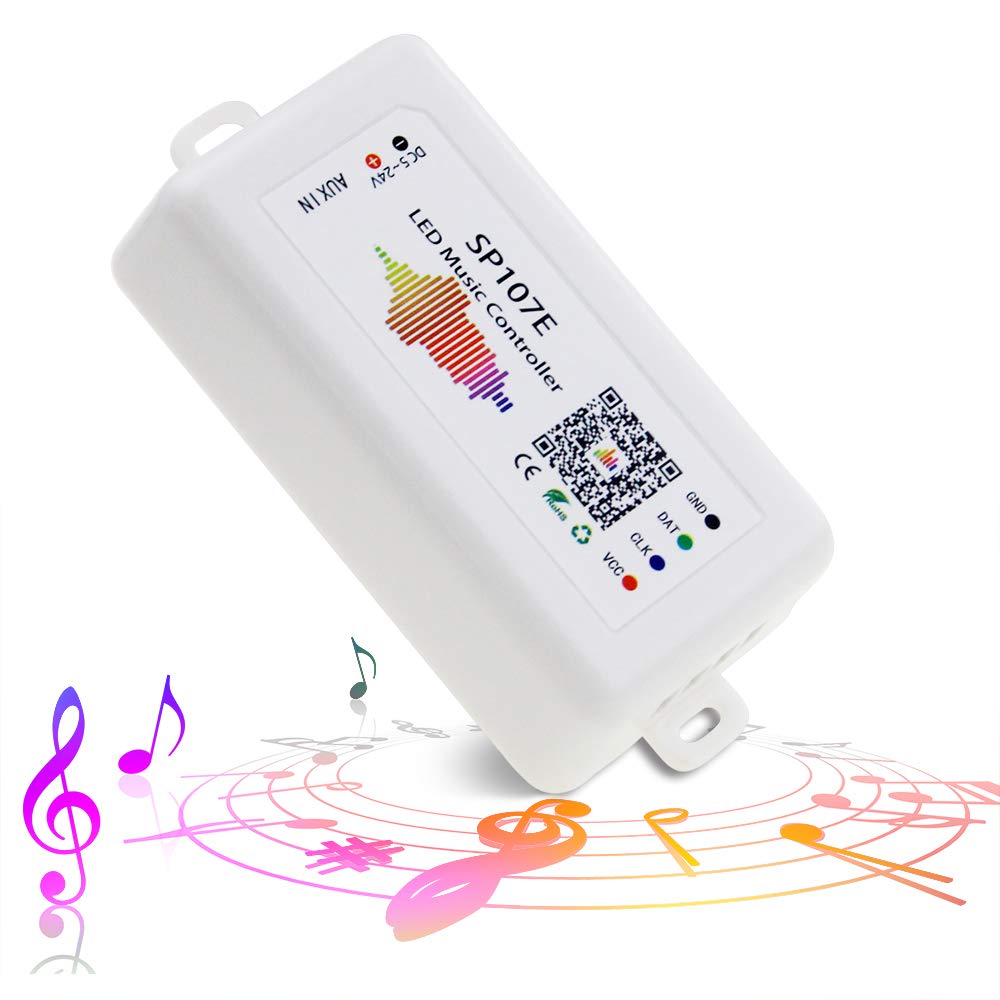

SP107E led controller
SP107 led controller SP107E
led controller SP107E
SP107E LED控制器
SP107E控制器
SP107E
SP107E led controller
SP107 led controller SP107E
led controller SP107E
SP107E LED控制器
SP107E控制器

SP107E LED控制器

型号
SP107E
交货:
FOB Shenzhen
最小起订量:
5 个
供货能力:
300000 个 / 月
原出产地:
深圳
备货期:
7 天
数量:
Feature

Features:
1) Long distance APP remote control via WIFI;
2) Support routing mode(AP) and LAN connection mode(STA);

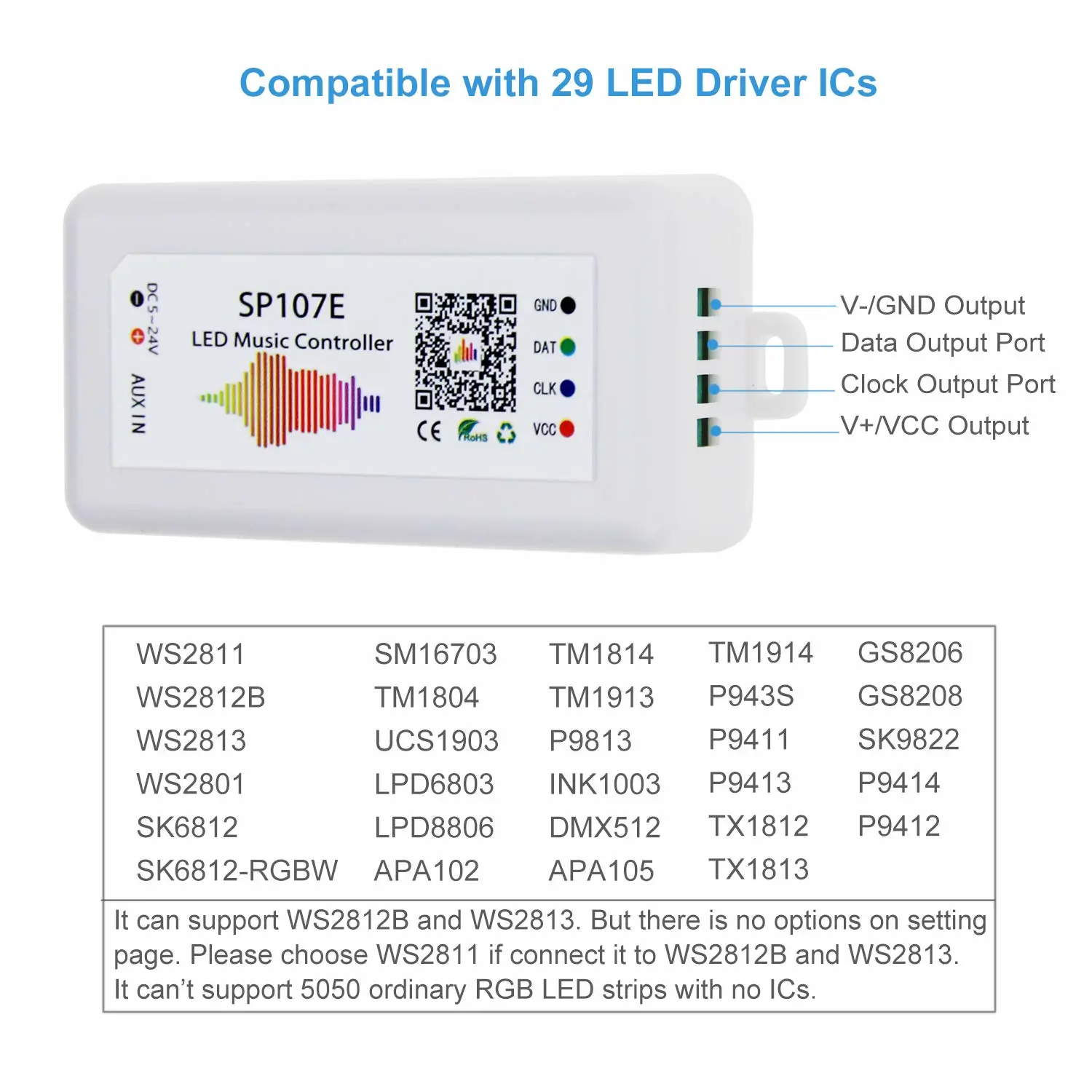

3) Support almost every kind of one-wire or two-wire LED driver IC ;
4) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;
5) Creatively usingfrom-image-to-effect method for user toDIYany effect;
6) Support setting pixel number and segments number, able to control up to 2048pixels;
7) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;
8) User setting saving;

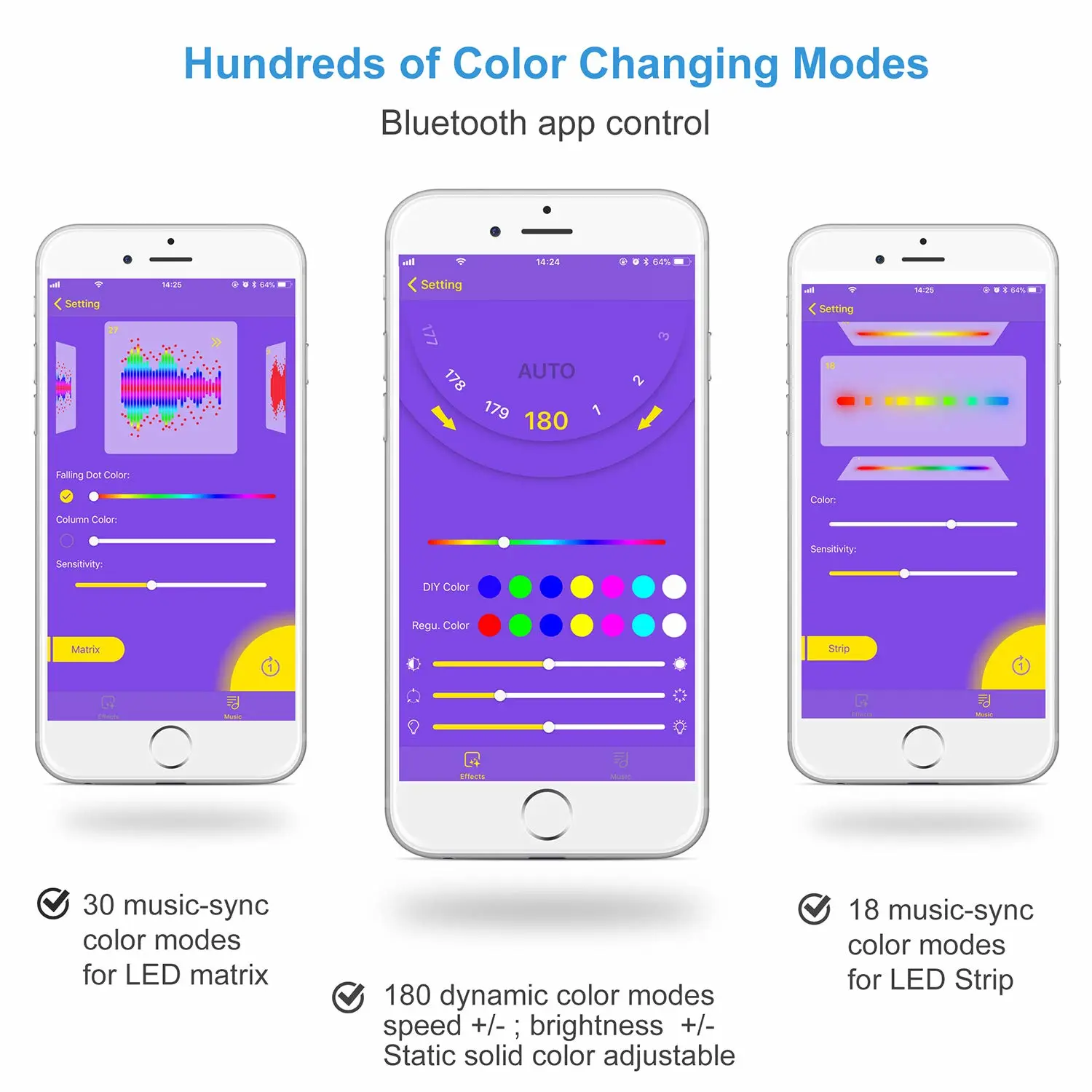

App control:
Both IOS version and Android OS version are available. (hardware should support WIFI)
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App:

Specifications:
Working temperature : -20~60 Degrees Celsius
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;

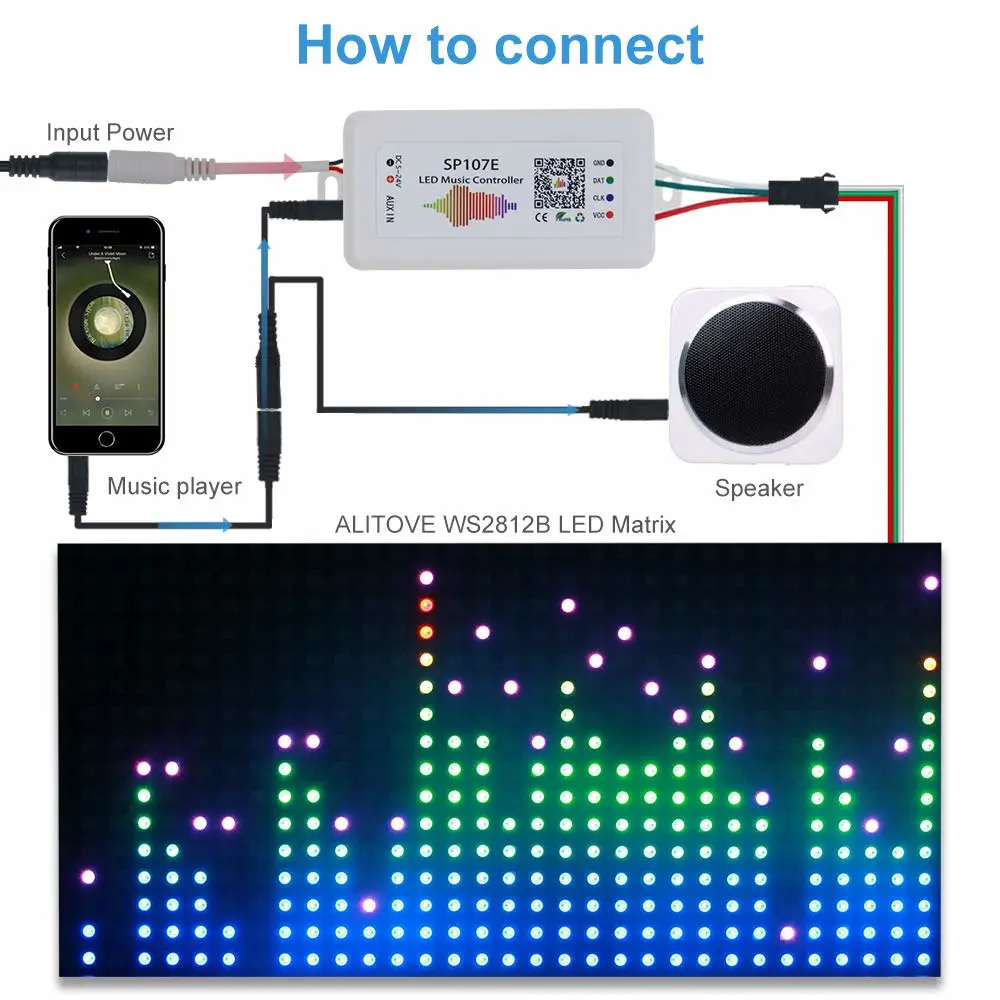

Working Mode and Connecting:
AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.
Connect steps:
1) When the device is not connected to any WIFI network, power on the controller and wait for 20s and then controller will switch intoAP mode ;
2) In the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),
3)Open the LED Shop App ,then the controller will be showed on the device list;

*STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.
Connect steps:
1)When the device is not connected to any WIFI network,power on the controller,controller will be remain inWait-For-Connet mode for 20 seconds;
2) Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish;
3) When controller successfully enter the WIFI network, it will be showed on the device list;
4) User can select the controller and remove it out of the network by pressing theRemove Device button,then the controller will switch into AP mode.

Package includes:
1x SP108E  LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual

This device does not work under 5 ghz wifi
