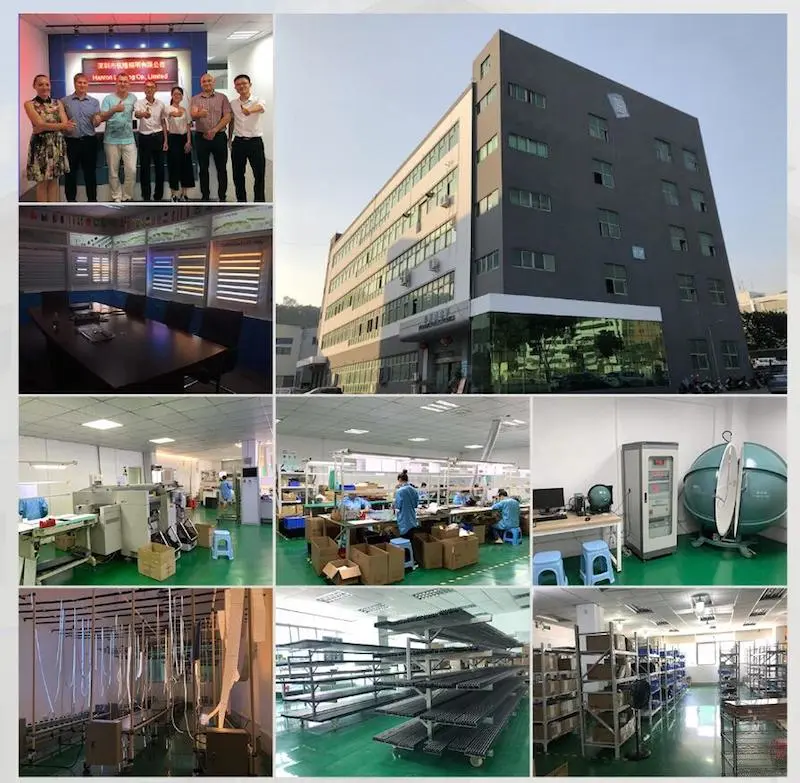

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.


Feature

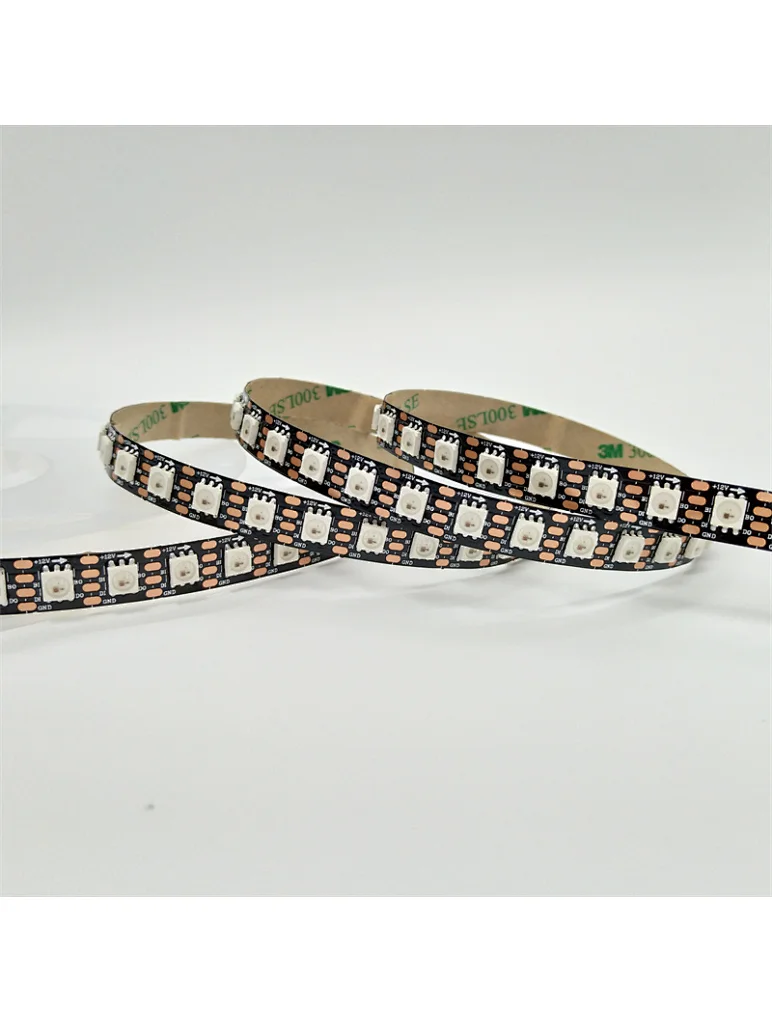

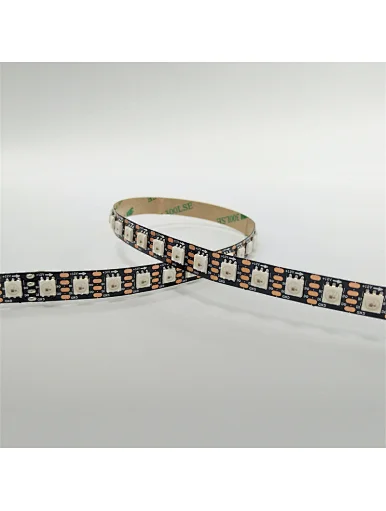

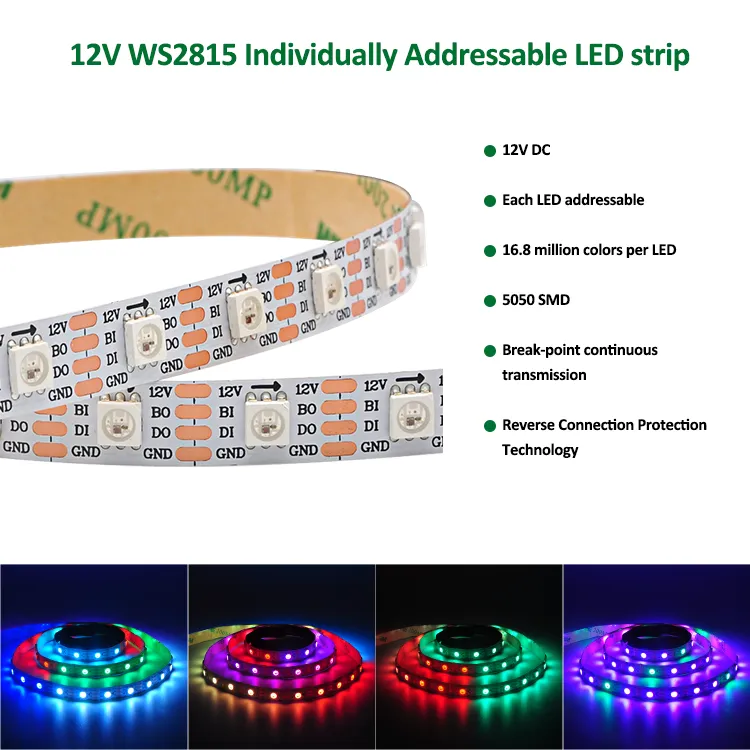

WS2815/SK6813-12V  sk6813 led strip light:

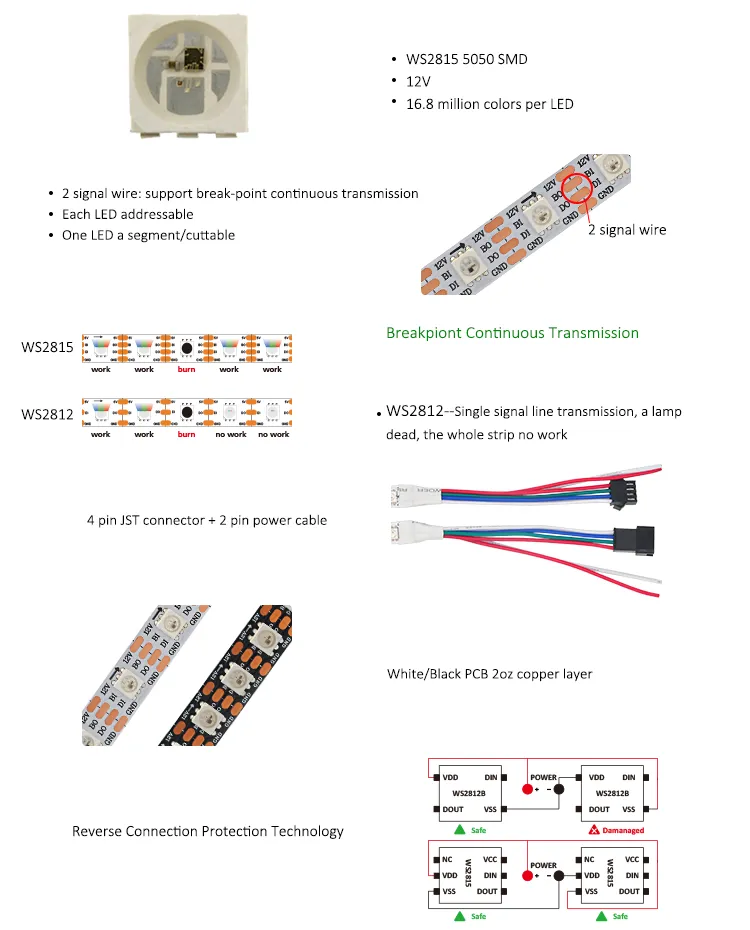

1. 12V individually addressable, breakpoint continuous transmission, more and more popular in the market
2. Original WS2815 or SK6813-12V IC, 256 gray scales, high brightness, fast data transfer, quick screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC12V design with 1led/cut, allow longer connection
5. Strong flexible for heat dissipation and real 3M tape for a strong installation


Specification

---



Item	Specification	Item	Specification
Item Name	WS2815  sk6813 led strip	Light Source	5050 RGB
IC Type	WS2815/SK6813-12V	IC QTY	96pixels/M
LED QTY	96leds/M	IC Location	Internal IC
Color	RGB Dream Color	Voltage	DC12V
Working T	-20 to 45 Degree	Power	23.04W/M
PCB color	Black/White/Yellow	Angle	120 degrees
IP Rating	IP20/65/66/68	Cutting Unit	1.04cm
Package	Anti-Static Bag	OEM&ODM	Available
Dimension	5000mm*10mm	Lifetime	50000hrs
Certificate	ETL,CE, RoHS, Reach...	Warranty	2years

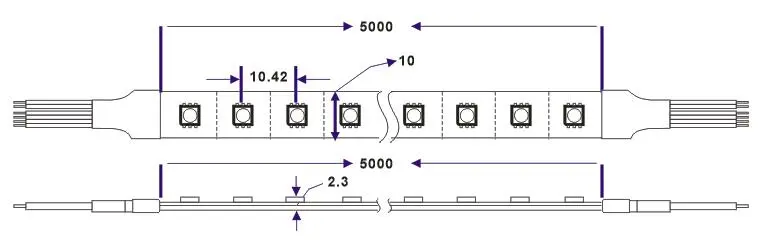

Dimension:mm of sk6813 led strip light

---

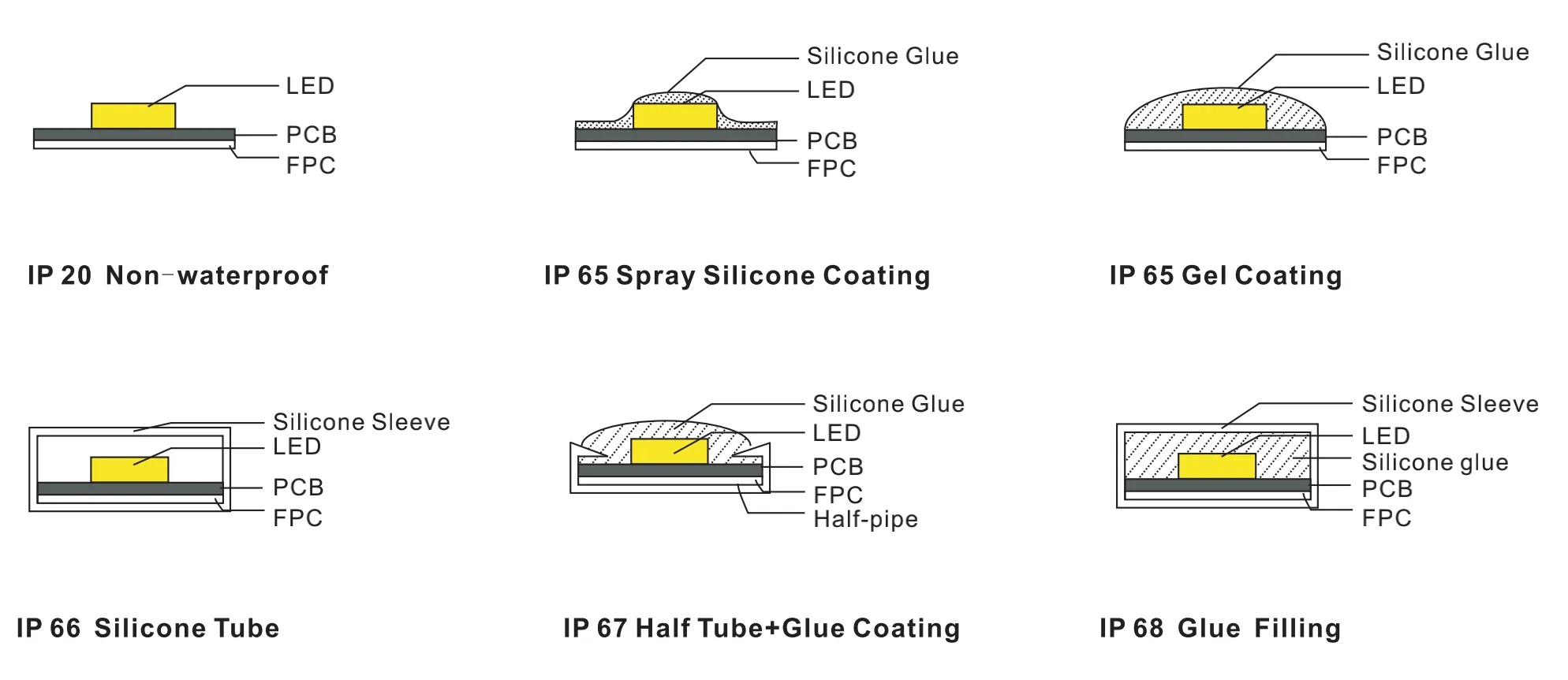

IP Rating

---

Application of sk6813 led strip light

---
