WS2815/SK6813-12V 144灯/米 LED灯带

DC12V, 28W/M, 144pixels/M

交货 :

EXW

最低订单 :

30 米

供货能力 :

600000米 / 月

备货期 :

7-12天

原出产地 :

深圳

数量 :

下载:

发联系信

Welcome for your visit to our website. Established in 2010, Hanron has become a leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.

led strip ws 2815 12v 144 bit

Feature

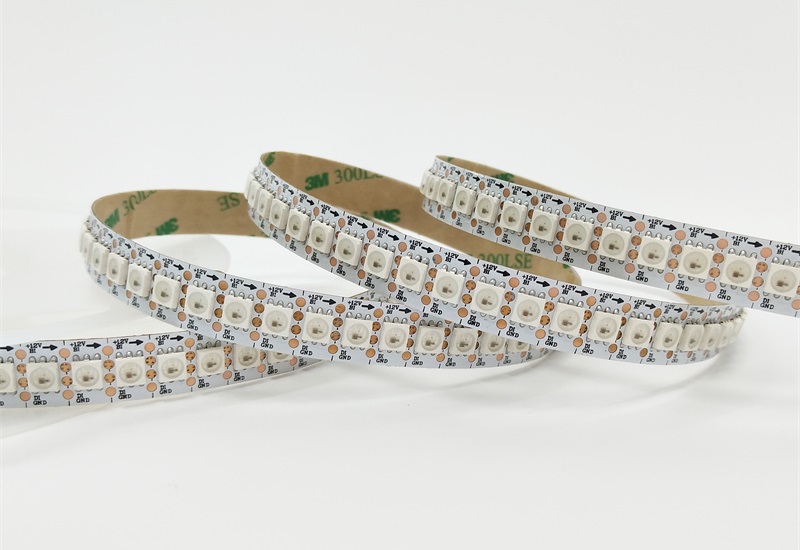

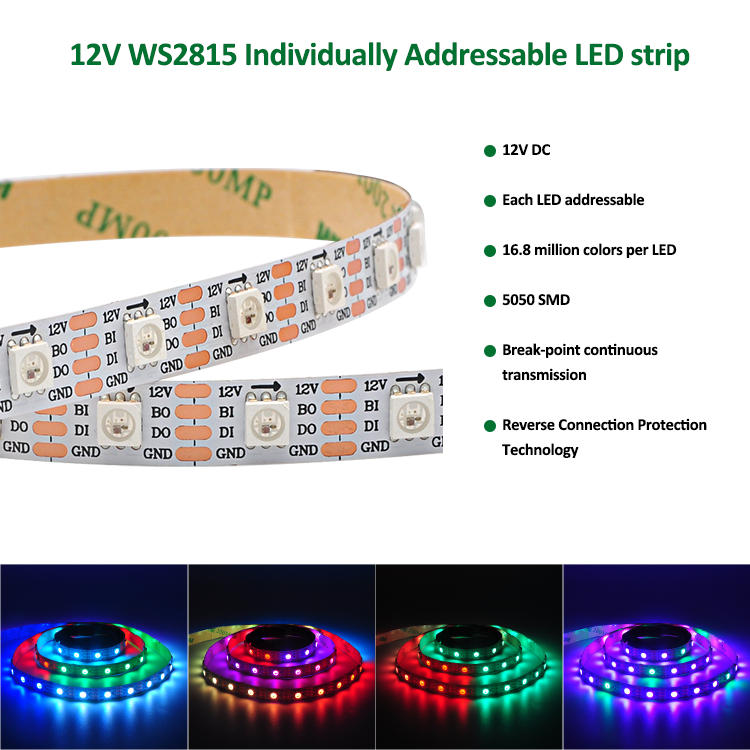

WS2815/SK6813-12V led strip SK6813:

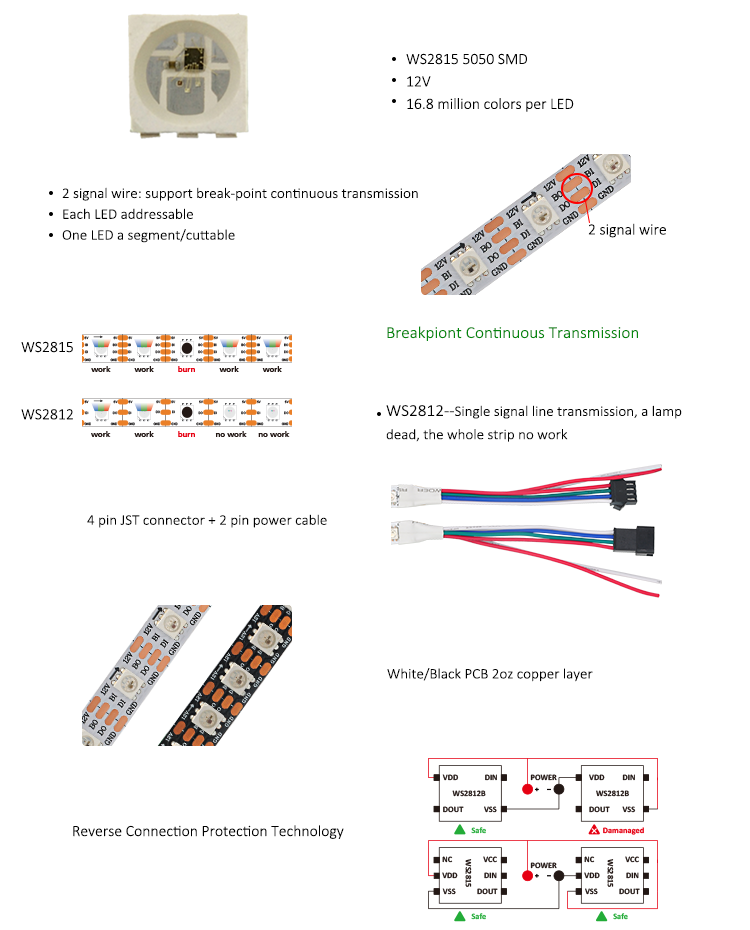

1. 12V individually addressable, breakpoint continuous transmission, more and more popular in the market
2. Original WS2815 or SK6813-12V IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,

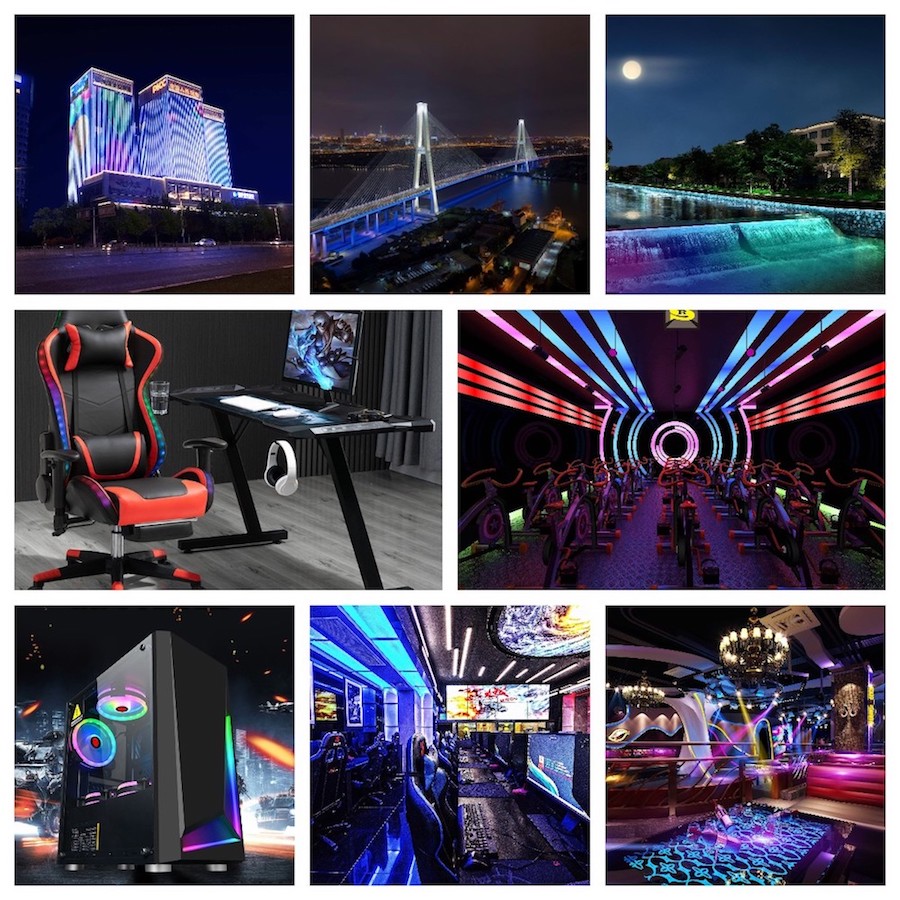

3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC12V design with 1led/cut, allow longer connection
5. Strong flexible for heat dissipation and real 3M tape for a strong installation.

Specification

Item	Specification	Item	Specification
Item Name	12v ws2815 led strip	Light Source	5050 RGB
IC Type	WS2815/SK6813-12V	IC QTY	144pixels/M
LED QTY	144leds/M	IC Location	Internal IC
Color	RGB Dream Color	Voltage	DC12V
Working T	-20 to 45 Degree	Power	28W/M
PCB color	Black/White/Yellow	Angle	120 degrees

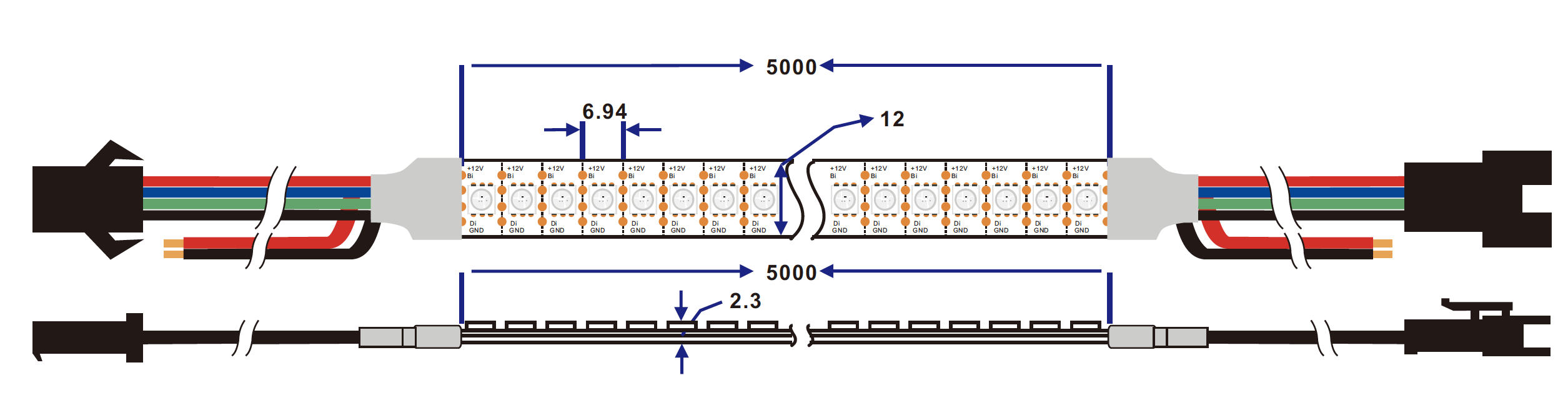

IP Rating	IP20/65/66/68	Cutting Unit	6.94mm
Package	Anti-Static Bag	OEM&ODM	Available
Dimension	5000mm*12mm	Lifetime	50000hrs
Certificate	ETL,CE, RoHS, Reach...	Warranty	3 years
