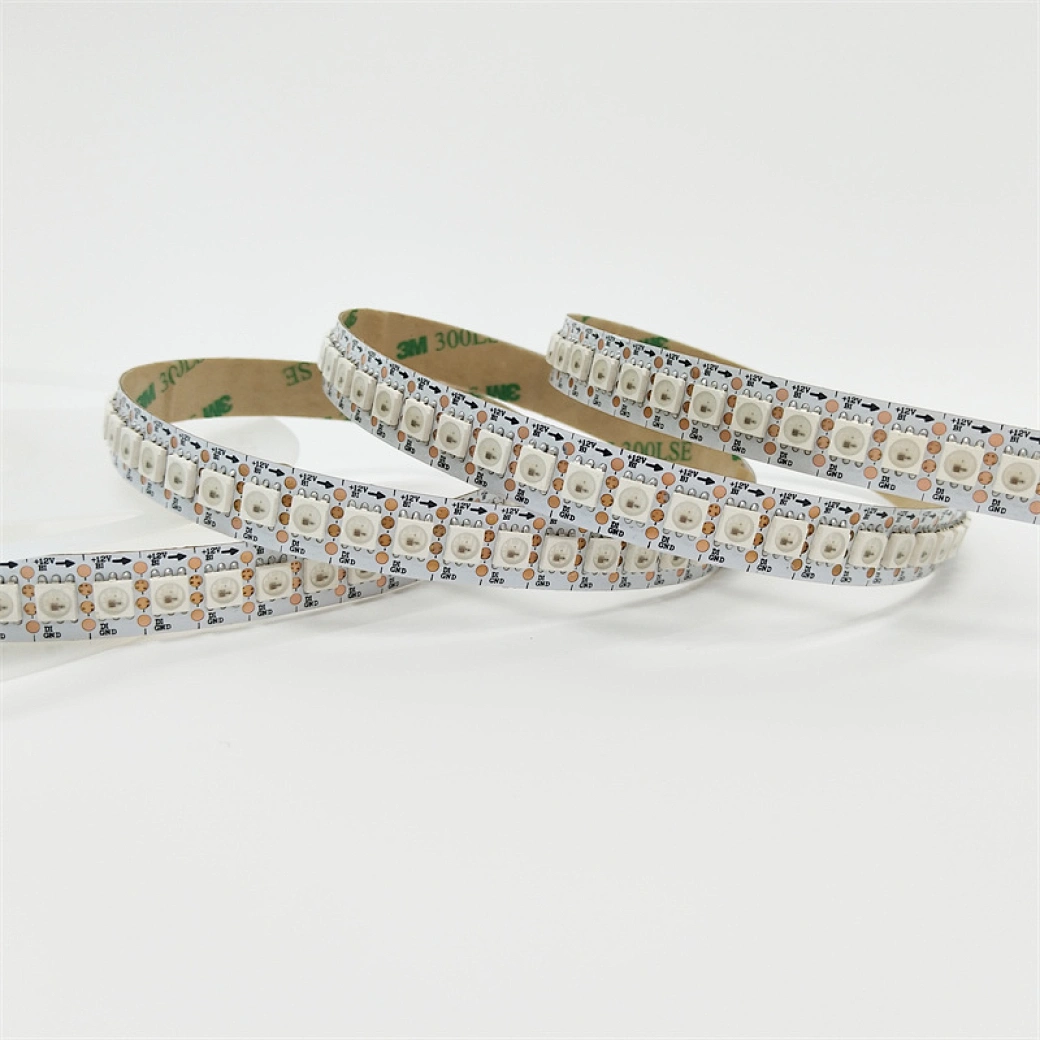

WS2815/SK6813-12V 144leds/M Led Strip
Welcome for your visit to our website. Established in 2010, Hanron has become a leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.
Feature
1. 12V individually addressable, breakpoint continuous transmission, more and more popular in the market
2. Original WS2815 or SK6813-12V IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC12V design with 1led/cut, allow longer connection
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
Specification
| Item | Specification | Item | Specification |
| Item Name | 12v ws2815 led strip | Light Source | 5050 RGB |
| IC Type | WS2815/SK6813-12V | IC QTY | 144pixels/M |
| LED QTY | 144leds/M | IC Location | Internal IC |
| Color | RGB Dream Color | Voltage | DC12V |
| Working T | -20 to 45 Degree | Power | 28W/M |
| PCB color | Black/White/Yellow | Angle | 120 degrees |
| IP Rating | IP20/65/66/68 | Cutting Unit | 6.94mm |
| Package | Anti-Static Bag | OEM&ODM | Available |
| Dimension | 5000mm*12mm | Lifetime | 50000hrs |
| Certificate | ETL,CE, RoHS, Reach... | Warranty | 3 years |
Dimension: mm
Connection

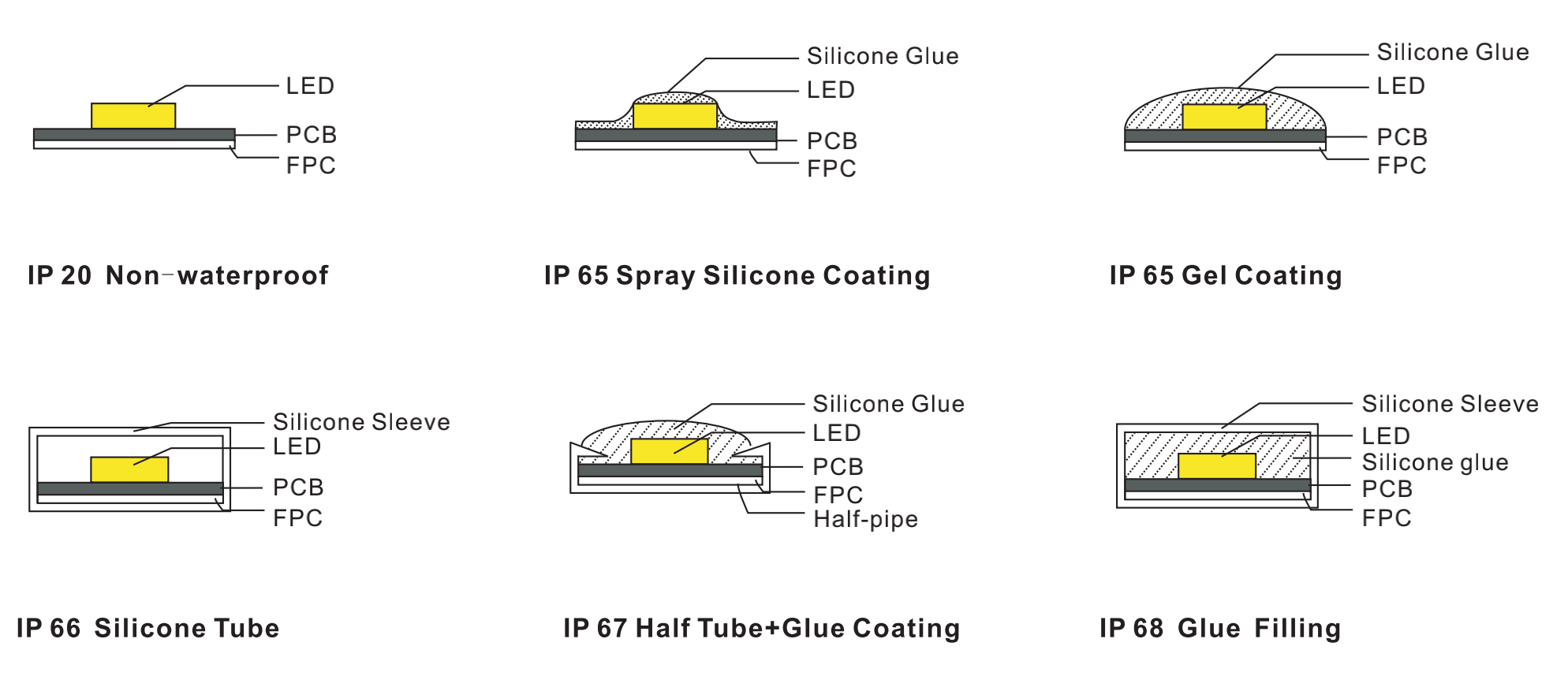

IP Rating
Application of 12v ws2815 led strip
How to customized LED strip light?
10 Professional engineers are here to serve you
LED Brand & Brightness
Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.
CRI & CCT & Color
CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.
LED QTY & Rows
The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.
Print Logo
It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.
IP Rating
Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.
Voltage & Power
Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.
LED Strip & Cable Length
It''s OK to customized the length of the led strip, also the length of the cable for the led strip.
PCB Color
Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
Hanron Brand Certificate
ETL/CE/RoHS/Reach/CB/BIS/LM80/RCM
ISO9001:2015
TUV CB
ETL
BIS
RCM
LM80 Test
CE EMC
CE LVD
CE RoHS
CE Reach
UKCA
IP68 Report
