Wireless RF dimmable led dimmer controller for single color led strip
Wireless RF dimmable led dimmer controller for single color led strip
Wireless RF dimmable led dimmer controller for single color led strip
Wireless RF dimmable led dimmer controller for single color led strip
Wireless RF dimmable led dimmer controller for single color led strip
Wireless RF dimmable led dimmer controller for single color led strip
Wireless RF dimmable led dimmer controller for single color led strip

Wireless RF dimmable led dimmer controller for single color led strip

型号:
Dimming controller
价钱:
USD 2.50-8.00 / 个
交货:
FOB
最小起订量:
200 个
供货能力:
100000 个 / 月
原出产地:
Shenzhen
数量:
  • Place of Origin:CN;GUA
  • Type:Remote Control
  • Voltage:12-24V
  • Brand Name:Hanron
  • Max. Load Power:432W
Product Description

GILE

1). Features

1.Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons.

2. Auto adaptation of 12-24V DC working voltage and with input polarity protection function.

3. The newest PWM control technology, delicate light performance, no flicker.
4. Wireless RF control, free direction and long distance, more than 20 m.

2). Technical Parameters

Controller
Supply voltage12V-24VDC
Loadable current6A×3CH
Output channels3CH
Output power216W/432W(12V/24V)
Control methodRF
Connection modecommon anode
Color Cholse1
Dimmering mothodPWM
Grey steps256 steps per channel
ProtectionThe power input polarity protection
Remote
Working voltage4.5VDC
Remote control wayRF
Launch frequency433Mhz
Controlable distancemore than 20 meters
Battery types3 pcs AAA type batteries
Standby power0.08mW
Power consumption6mW
Transmission power40mW
Key Number6 touch keys, 1 touch wheel
Whole machine
Working temperature-20℃~60℃
IdentificationCE,RoHS

4). Applications

1.Construction decoration: commercial buildings, airports or subways.

2.Indoor decoration: hotels, shopping malls, squares, restaurants, bars, houses.

3.Outdoor decoration: advertising boards, parks, bridges, roads and overpasses, scenic spots.

4.Others: decorating for motor vehicles, the places needing RGB lights.

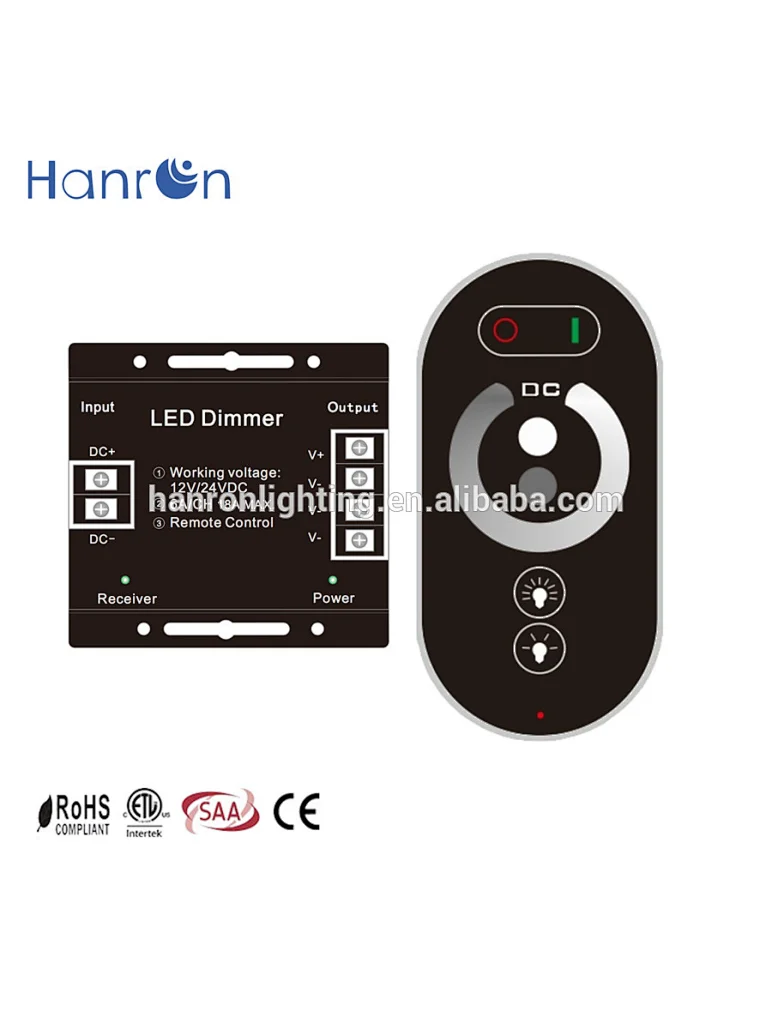

Product Pictures

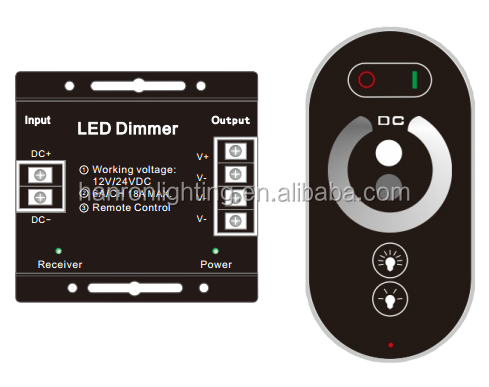

LED Dimmer.png


Install Instruction

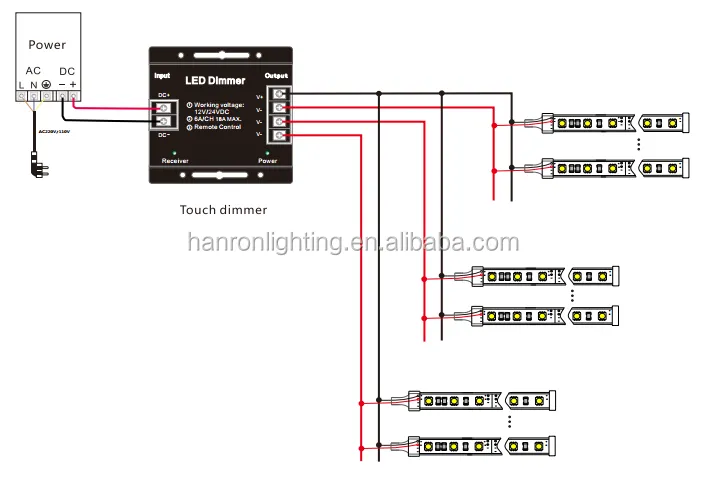

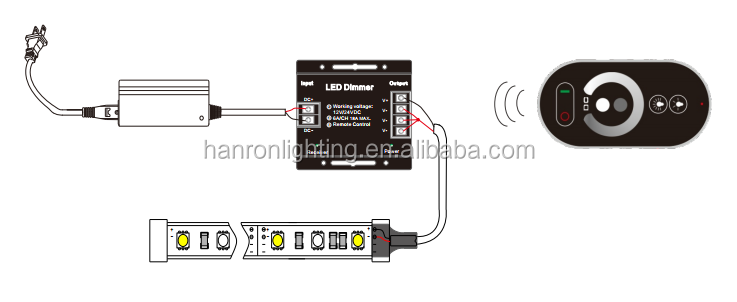

1)The wiring and the typical product apply diagram 1

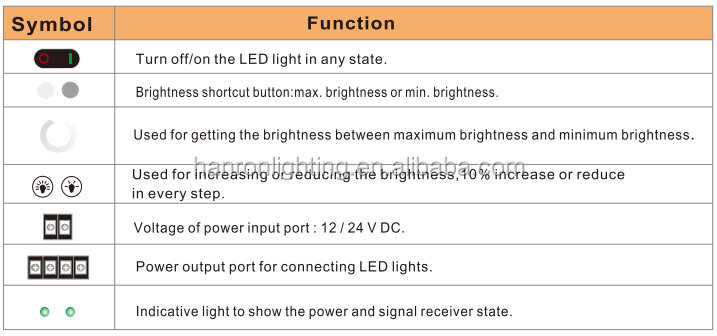

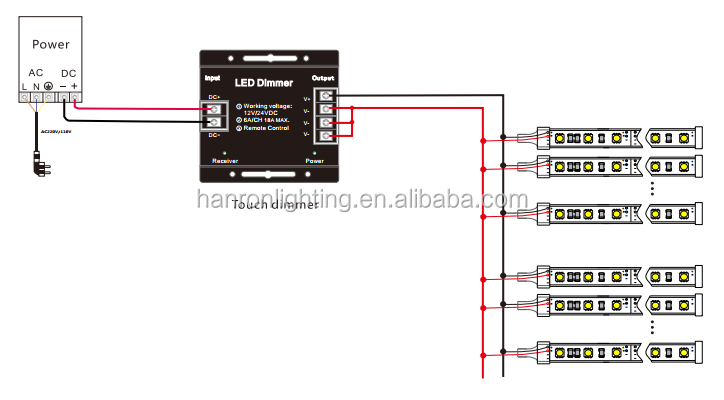

2)The wiring and the typical product apply diagram 24.png

3) The wiring and the typical product apply diagram 3

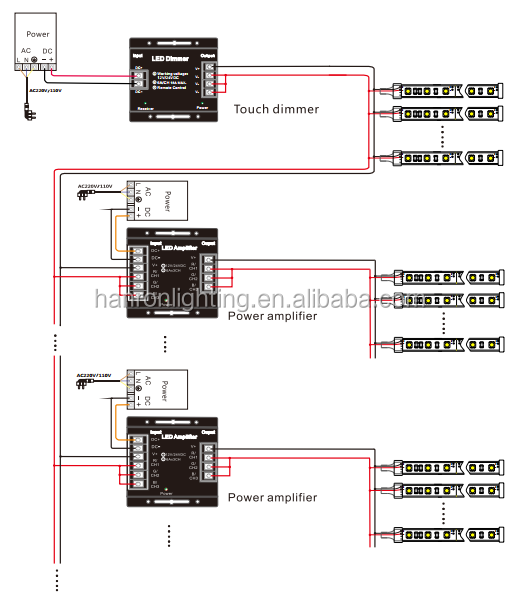

4) Power amplifier figure

  • When the dimmer power is not enough, please adopt our constant voltage LED power amplifier. The product specifications can be obtained by contacting our sales team.
  • Amplifiers are parallelly connected with the dimmer ( take LED light strip for example )

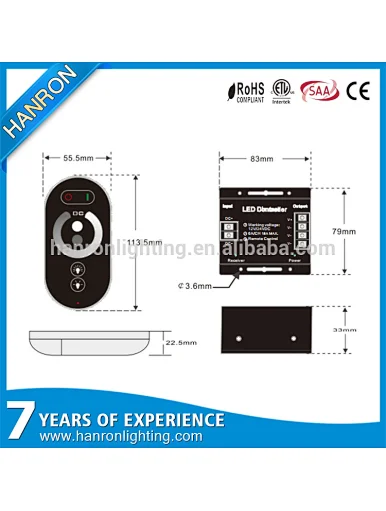

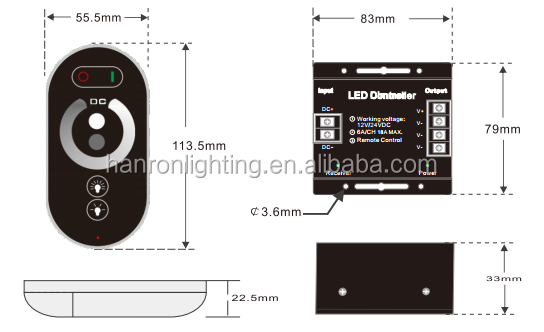

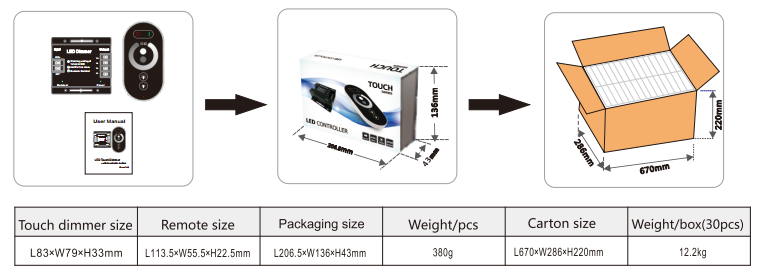

Product Dimension(mm)


Packing Detail


Company Information

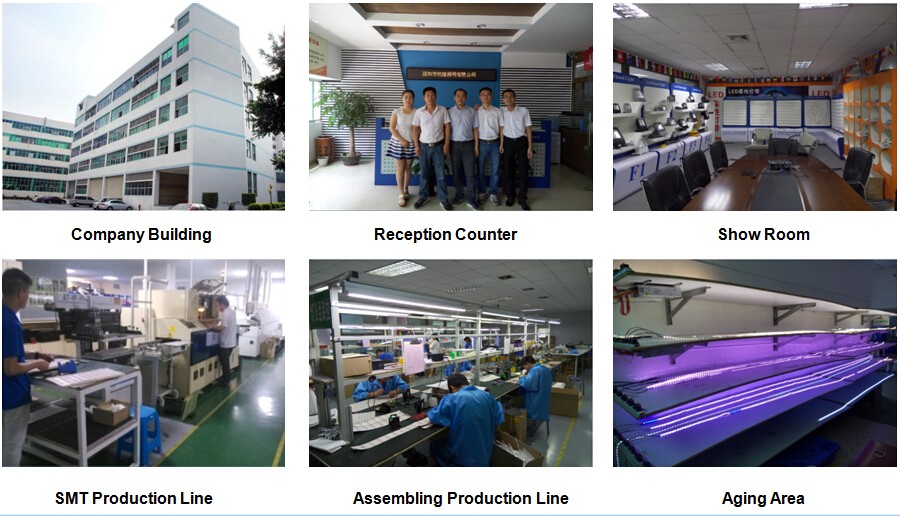

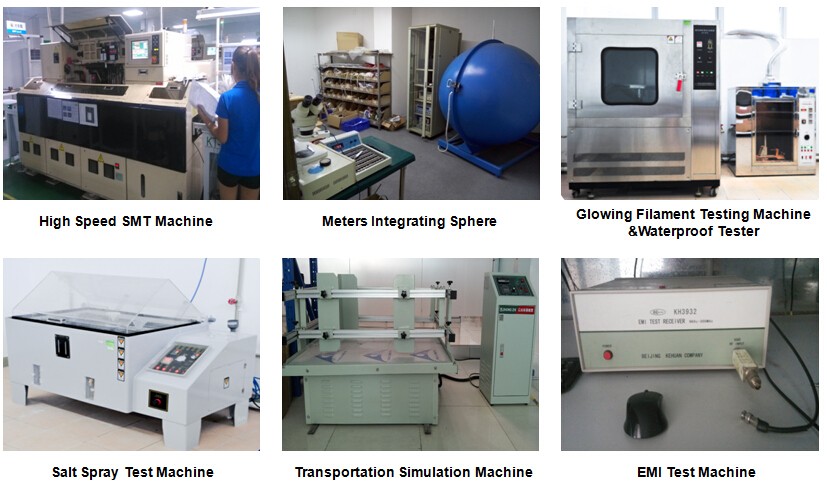

Hanron Lighting Factory Tour.jpgHanron Lighting Test Machine.jpg

Certificate

Certificate include LED controller.jpg

Why Choose us?

Hanron Advantage.jpg

a. All strip solutions provider, OEM&ODM available

b. Constant voltage, constant current, color changing strip

c. Highest brightness and longest warranty

d. Long-term cooperation with our forwarder allows us to provide you the lowest freight and the fastest service.

e. Professional engineers to design and develop new LED strip according to your requirements.

f. Customized label and colored boxes are available

g. Customer logo is allowed to be labeled on our LED strip.

h. Your inquiry will be replied in 24 hours.

FAQ

1) What are the best selling products in Hanron Lighting?
- LED Strip Light: Mainly SMD5050,SMD2835 and SMD3528
- LED Rigid Bar
- LED Cabinet Light
- LED Power Supply
- LED Controller, led strip connector

2) What kind of products will Hanron develop for the next year?
Hanron Lighting is devoted to innovation in lastest LED technology. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week.

3) What is the main market for Hanron?
We are selling more to EU market because the markets have high quality standard for LED products. The rate stands our turnover up to 50-60%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for American market and Asian regions.

4) What LEDs do you usually use for your LED products?
For high level products, we use Epistar LED Chip; and middle level types, we mainly use San’an LED strip to find best balance between quality and cost. Other brands of LEDs are allowed according to customer’s requirement.

5) What is Hanron’s lead time?
Usually delivery time will be in 12-15days. But it will take a little longer if with heavy burden of production task. And more time will be taken with customized products.

6) Can Hanron offer OEM product?
Yes, OEM products are allowed. We have an excellent design/engineering team to offer support and we have several years experience in OEM. The strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

7) Do you have warranty for products?
Yes, we have 2/3/5 years warranty for different kinds of products. During the warranty period, if customers have the approval showing product quality issues and if certified by Hanron Lighting engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8) Does Hanron design its products?
Yes, Hanron Lighting designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC list possibility and reliability.

Payment

1) TT, 30% deposit, 70% against the copy of B/L..
2) L/C at sight. (high bank charges, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amount)
