Wireless RF dimmable led dimmer controller for single color led strip
Product Description
1). Features
1. Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons.
2. Auto adaptation of 12-24V DC working voltage with input polarity protection function.
3. The newest PWM control technology, delicate light performance, no flicker.
4. Wireless RF control, free direction, and long distance, more than 20 m.
2). Technical Parameters
| Controller | |
| Supply voltage | 12V-24VDC |
| Loadable current | 6A×3CH |
| Output channels | 3CH |
| Output power | 216W/432W(12V/24V) |
| Control method | RF |
| Connection mode | common anode |
| Color Cholse | 1 |
| Dimmering mothod | PWM |
| Grey steps | 256 steps per channel |
| Protection | The power input polarity protection |
| Remote | |
| Working voltage | 4.5VDC |
| Remote control way | RF |
| Launch frequency | 433Mhz |
| Controlable distance | more than 20 meters |
| Battery types | 3 pcs AAA type batteries |
| Standby power | 0.08mW |
| Power consumption | 6mW |
| Transmission power | 40mW |
| Key Number | 6 touch keys, 1 touch wheel |
| Whole machine | |
| Working temperature | -20℃~60℃ |
| Identification | CE, RoHS |
4). Applications
1. Construction decoration: commercial buildings, airports or subways.
2. Indoor decoration: hotels, shopping malls, squares, restaurants, bars, houses.
3. Outdoor decoration: advertising boards, parks, bridges, roads and overpasses, scenic spots.
4. Others: decorating for motor vehicles, the places needing RGB lights.

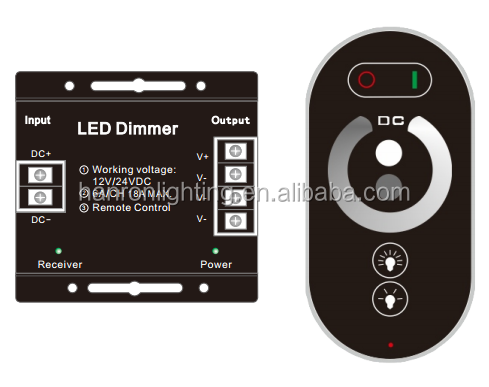

Product Pictures

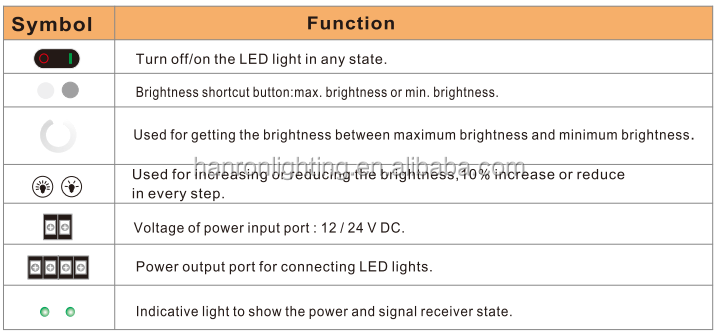

Install Instruction

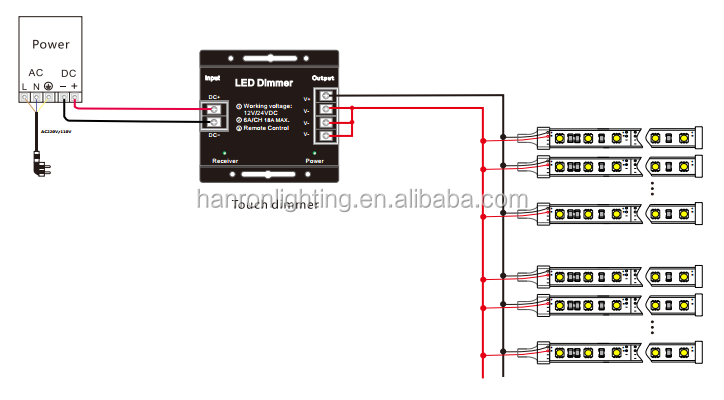

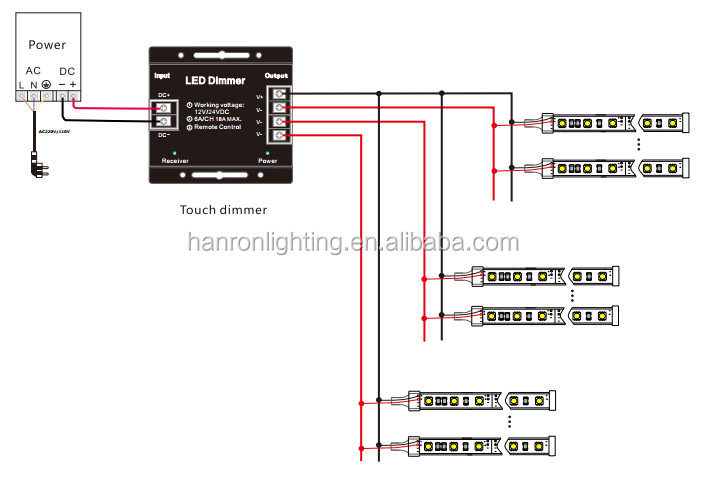

1)The wiring and the typical product apply diagram 1

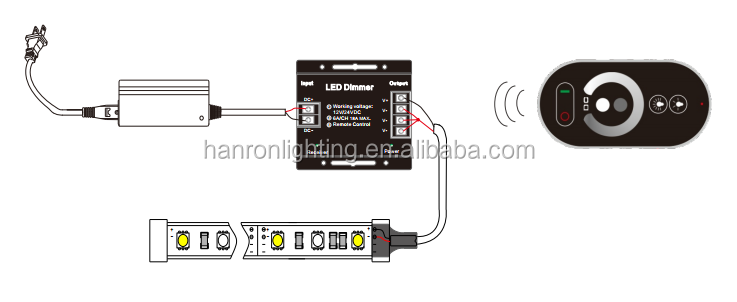

2) The wiring and the typical product apply diagram 2
3) The wiring and the typical product apply diagram 3

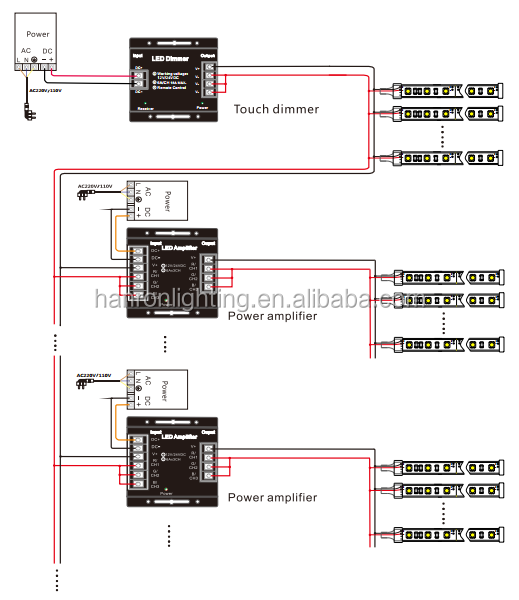

4) Power amplifier figure
- When the dimmer power is not enough, please adopt our constant voltage LED power amplifier. The product specifications can be obtained by contacting our sales team.
- Amplifiers are parallelly connected with the dimmer ( take LED light strip for example )

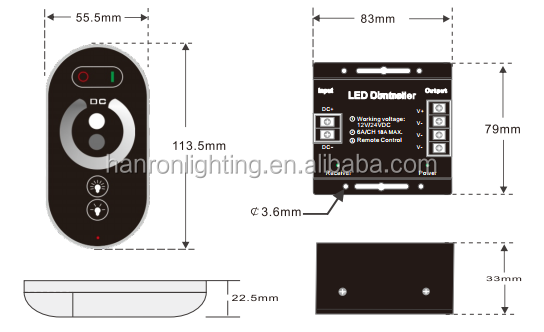

Product Dimension (mm)

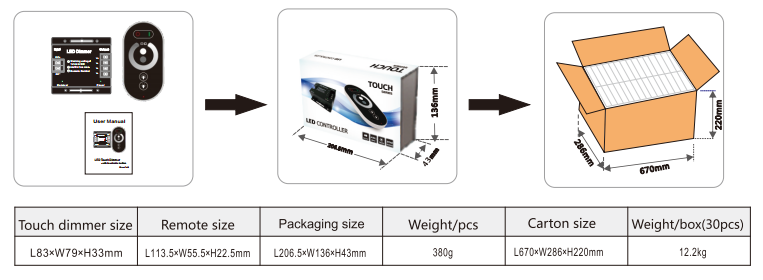

Packing Detail
How to customized LED strip light?
10 Professional engineers are here to serve you
LED Brand & Brightness
Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.
CRI & CCT & Color
CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.
LED QTY & Rows
The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.
Print Logo
It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.
IP Rating
Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.
Voltage & Power
Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.
LED Strip & Cable Length
It''s OK to customized the length of the led strip, also the length of the cable for the led strip.
PCB Color
Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
