RF wireless remote control led touch controller CT LED controller for Bicolor Strip Light
Product Description
1). Features
1. Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons.
2. Auto adaptation of 12-24V DC working voltage and with input polarity protection function.
3. The newest PWM control technology, delicate light performance, no flicker.
4. Wireless RF control, free direction and long distance, more than 20 m.
2). Technical Parameters
| Controller | |
| Supply voltage | 12V-24VDC |
| Loadable current | 6A×2CH |
| Output channels | 2CH |
| Output power | 144W/288W(12V/24V) |
| Control method | RF |
| Connection mode | common anode |
| Color Cholse | 2(warm white and clod white) |
| Dimmering mothod | PWM |
| Grey steps | 256 steps per channel |
| Protection | The power input polarity protection |
| Remote | |
| Working voltage | 4.5VDC |
| Remote control way | RF |
| Launch frequency | 433Mhz |
| Controlable distance | more than 20 meters |
| Battery types | 3 pcs AAA type batteries |
| Standby power | 0.08mW |
| Power consumption | 6mW |
| Transmission power | 40mW |
| Key Number | 6 touch keys, 1 touch wheel |
| Whole machine | |
| Working temperature | -20℃~60℃ |
| Identification | CE, RoHS |
3). Applications
1. Construction decoration: commercial buildings, airports or subways.
2. Indoor decoration: hotels, shopping malls, squares, restaurants, bars, houses.
3. Outdoor decoration: advertising boards, parks, bridges, roads and overpasses, scenic spots.
4. Others: decorating for motor vehicles, the places needing RGB lights.

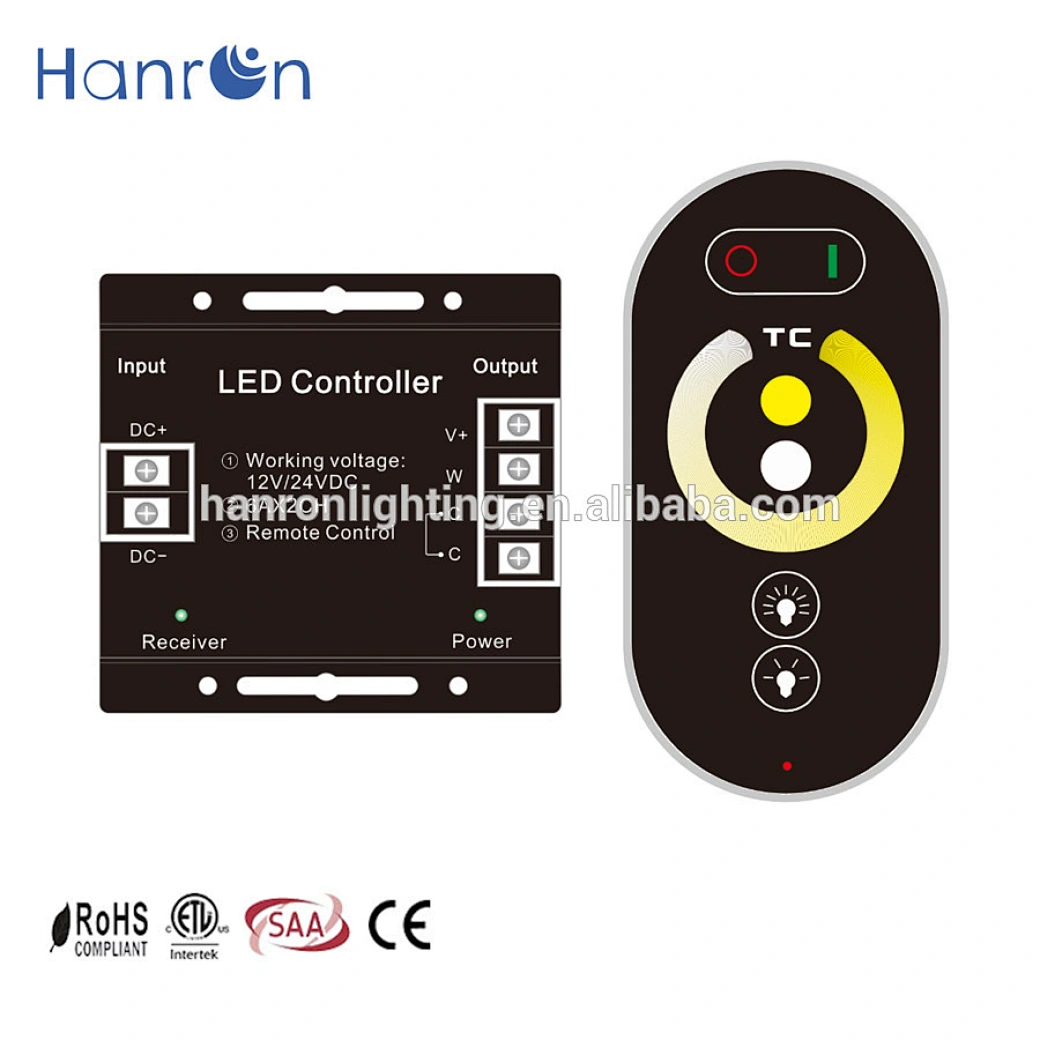

Product Pictures
Install Instruction

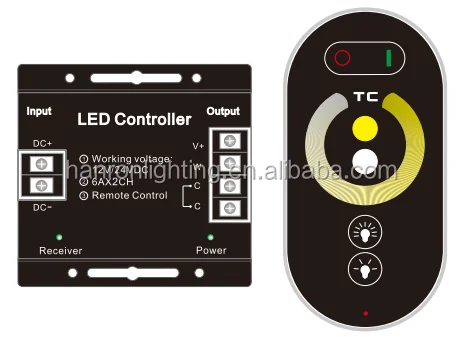

1) The diagram for showing how to connect ( take color temperature strip for example) :
2) When the controller power is not enough, please adopt our constant voltage LED power amplifier. The specifications can be obtained by contacting our sales team.

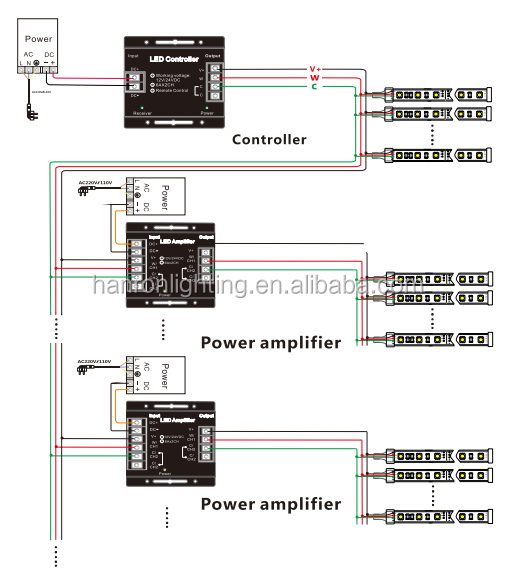

The diagram for showing how to connect controllers, amplifiers and LED lights ( take CT strip for example ):

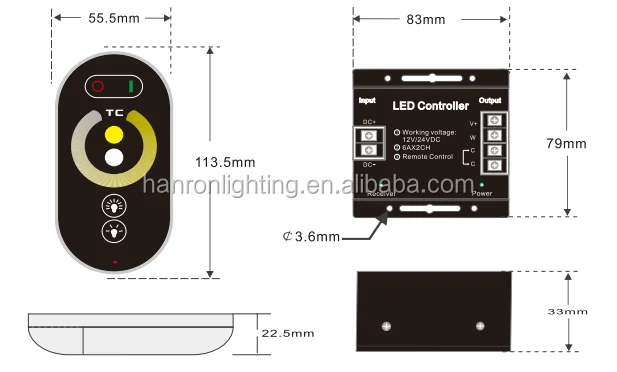

Product Dimension (mm)

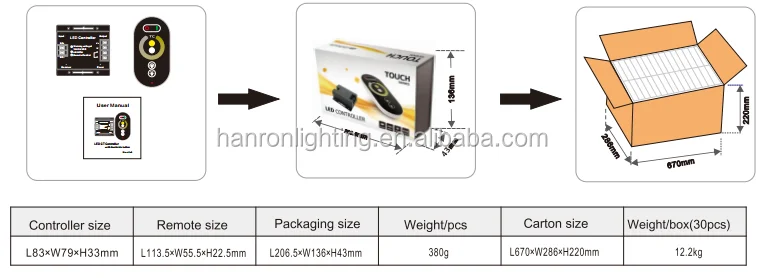

Packing Detail
