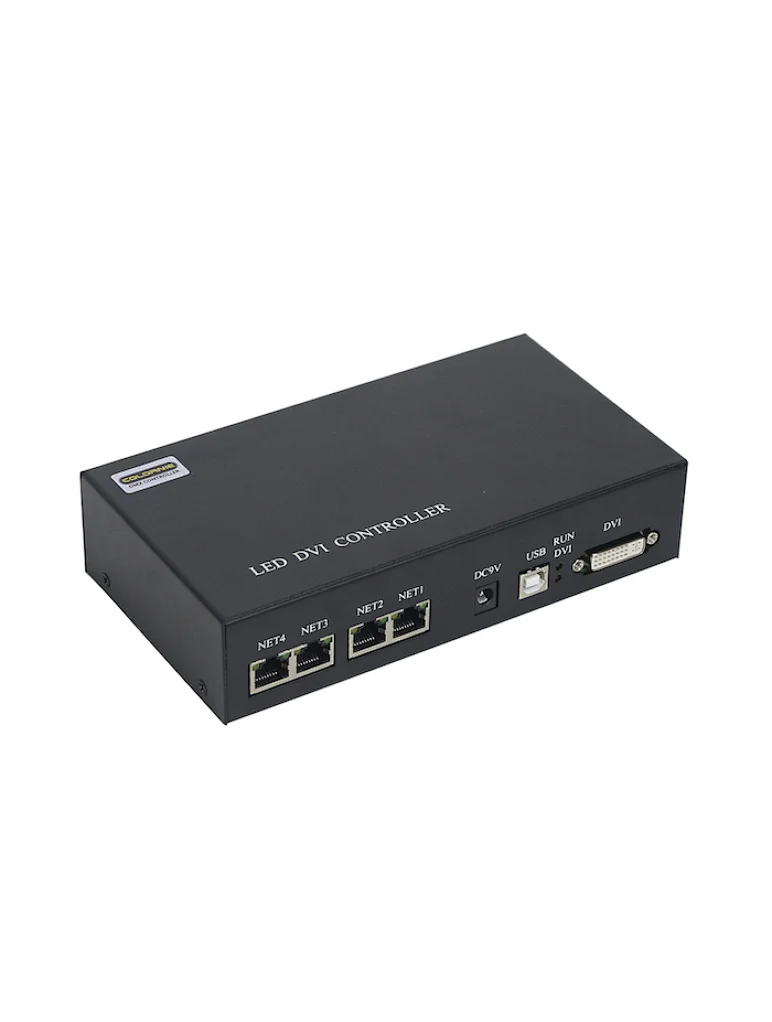

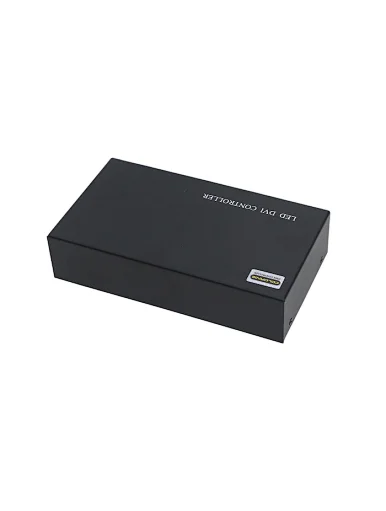

H803TV Max 400000 Pixels Led DVI Controller Support MADRIX Jinx! Master Led Controller DVI Interface

Product Detail

Features

(1). H803TV is an online master controller that transmits data over DVI/HDMI interface.
(2). Four network interfaces drive maximum 400000 pixels.
(3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.


Specification

Input Voltage: DC9V
Power Consumption: 1W
Drive Pixels Number: 400000
Weight: 1.3KG
Dimension: L183 x W139 x H40
Carton Size: L205 x W168 x H69

Supported Chips
LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc. Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).


Advantage Function:










Basic Workflow

Step 1. Set them up




Step 2. Change the appearance of display

Press WIN+X on keyboard





Please refer to the following settings

TheNote: 1). H803TV supports the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200. 2). It supports dual-monitor mode, multi-monitor extension mode and duplication mode. In this manual, i just choose 1024x768 and duplication mode for example. Then, click"Apply","OK".n, click"Apply","OK".


The visible area of your screen should be 1024x768 now.

Step 3. Configure Led Studio

LED Studio Dwonload: https://drive.google.com/open?id=0B1gzqyV6hfOgbFZrMHdwVzU1X0E Open It




Password is not needed


For example if you have a 64(pixels) by 64(pixels) screen. Click the following icon or"File"--"New".






Then, click"Apply", pops up the following window. Origin position: the top left corner of your screen, normally, i set X, Y both to 0



Note: Four ports of H803TV can drive different chips, each port can be configured individually.

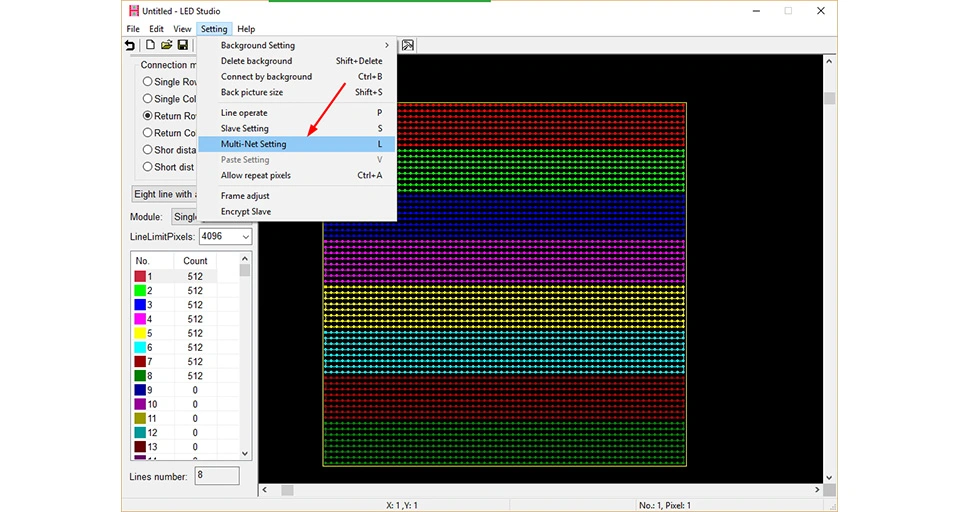

Click menu"Setting"--"Multi-Net Setting"

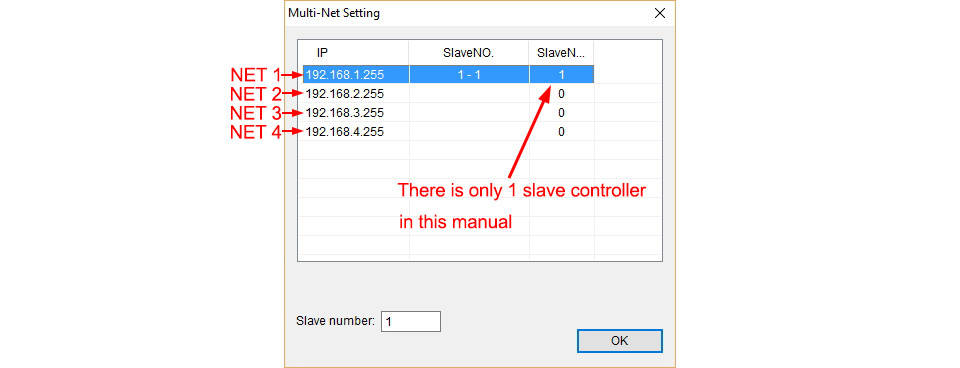

For example, if there are 8 slave controllers.
You can distribute slave controllers to each Net of H803TV

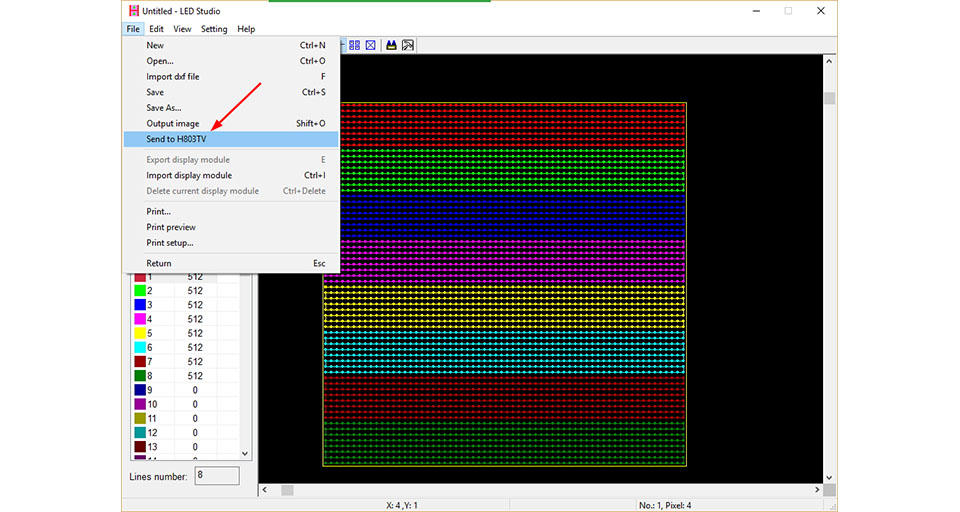

Then, click"File"--"Send to H803TV"

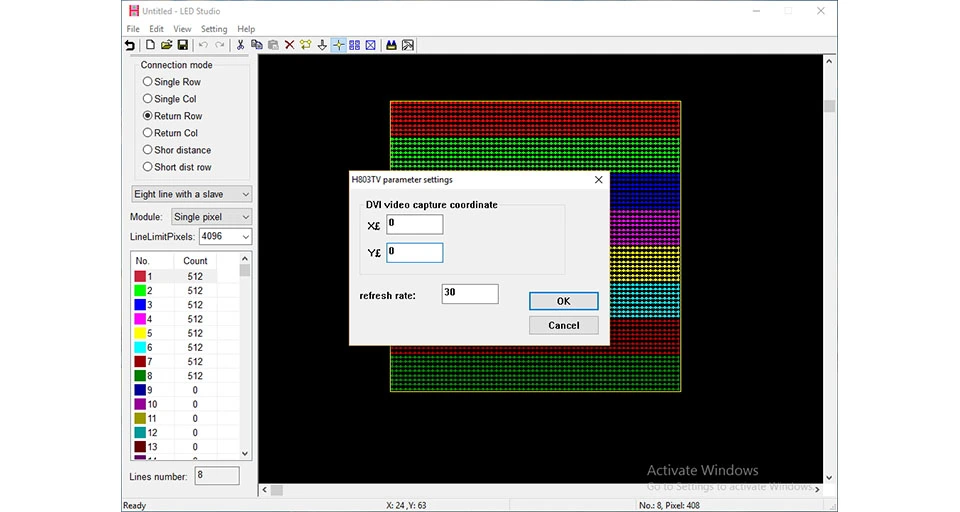

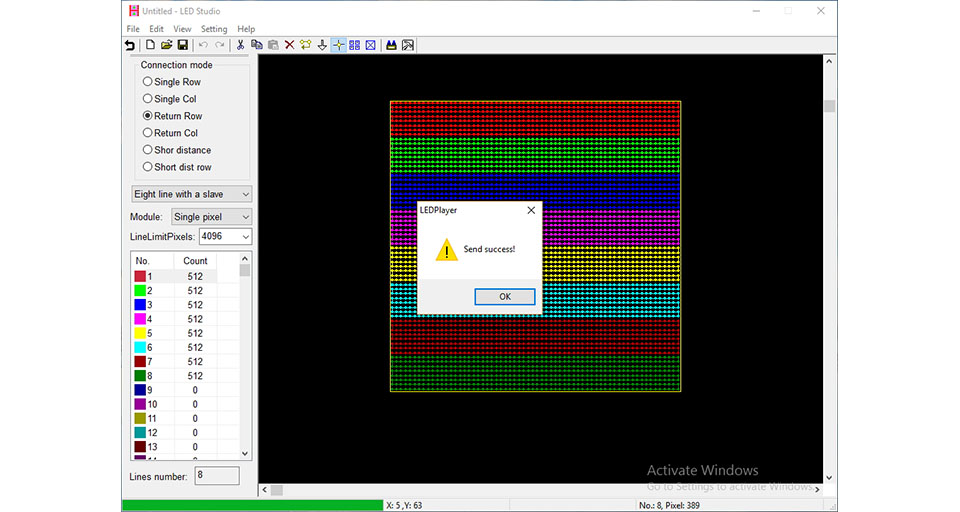

Software will remind you again, just enter coordinate and click"OK".





Then, save all these settings and go back to main window.




In MADRIX and In Jinx!
