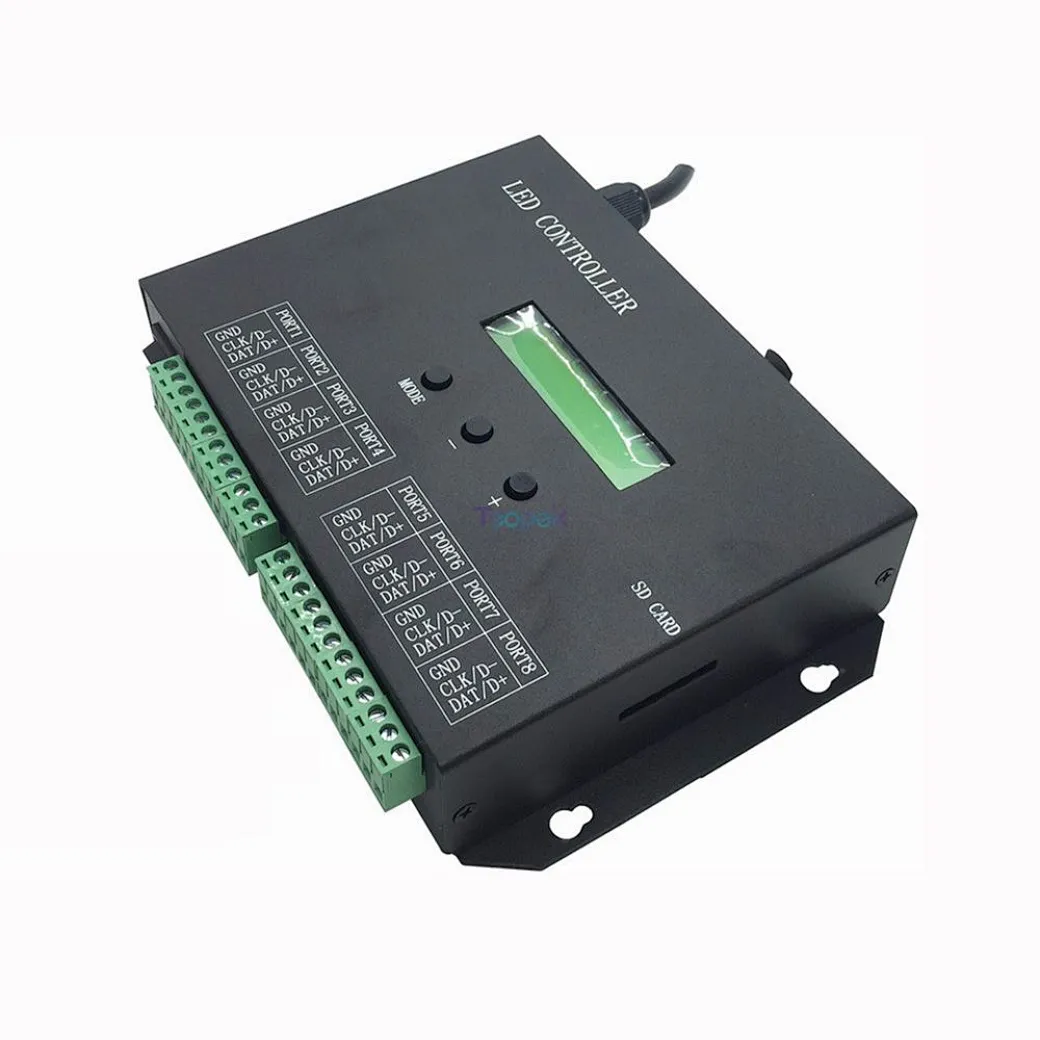

H803SA Controlador de píxeles direccionable de 8 puertos fuera de línea/independiente/Tarjeta SD 8192 Pixel

Controlador de píxeles direccionable H803SA de 8 puertos fuera de línea/independiente/tarjeta SD Consola DMX de 8192 píxeles, compatible con WS2812B/APA102

Detalle del producto

Características

(1). Ocho puertos controlan un máximo de 8192 píxeles, cada puerto controla un máximo de 1024 píxeles.

(2). La tarjeta SD admite formatos FAT32, FAT16.

(3). H803SA se puede conectar a la consola DMX, puede cambiar archivos y ajustar la velocidad y el brillo mediante la consola DMX.


Especificación

Voltaje de entrada: personalizado

Consumo de energía: 1W

Número de píxeles de la unidad:  8192

Peso: 1KG

Dimensión:   L189 x W123 x H40

Tamaño de la caja:   L205 x W168 x H69

Fichas compatibles

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.



Pantalla del producto

For example:

If you choose WS2812 in software.

just connect GND, DAT

If you choose TM512

just connect GND, D-, D+.

Connected to DMX console:

4. Basic Workflow

Step 1. Connect your strips to controller(take WS2812B for example)

SD card is used to store files programmed by LED Build.
H803SA has 8 ports, each port control maximum 1024 pixels.
Step 2. Program with LED Build
LED Build and Tutorial Video Download:
LED Build: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video Download: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA
Video especially made for H803SA: https://drive.google.com/open?id=0B1gzqyV6hfOgNkdWbElSY2Jwb3M
Test file download: https://drive.google.com/open?id=0B1gzqyV6hfOgcE1DbDNKVG5uZmM (8 ports, each port 300 pixels, for WS2811, WS2812 and other single line chips)
Step 3. Store programs with SD card

Then insert SD card, power controller on.
Step 4. Use three buttons to set lighting

5. Work with DMX Console(programs stored in SD card)

Set DMX Address

If DMX Address is 1, use channel 1, 2, 3 on console to switch files, adjust speed and brightness.
If DMX Address is 2, use channel 4, 5, 6 on console to switch files, adjust speed and brightness.

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

3. Product Display
