8 port H803SA addressable Pixel Controller off-line/stand-alone/SD Card 8192 Pixel  DMX Console,Support WS2812B/APA102

Product Detail

Features

(1). Eight port control maximum 8192 pixels, each port controls maximum 1024 pixels.

(2). SD card supports FAT32, FAT16 format.

(3). H803SA can be connected to DMX console, you can switch file, adjust speed and brightness by DMX console.


Specification

Input Voltage:   Customized

Power Consumption:   1W

Drive Pixels Number:   8192

Weight:   1KG

Dimension:   L189 x W123 x H40

Carton Size:   L205 x W168 x H69

Supported Chips

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

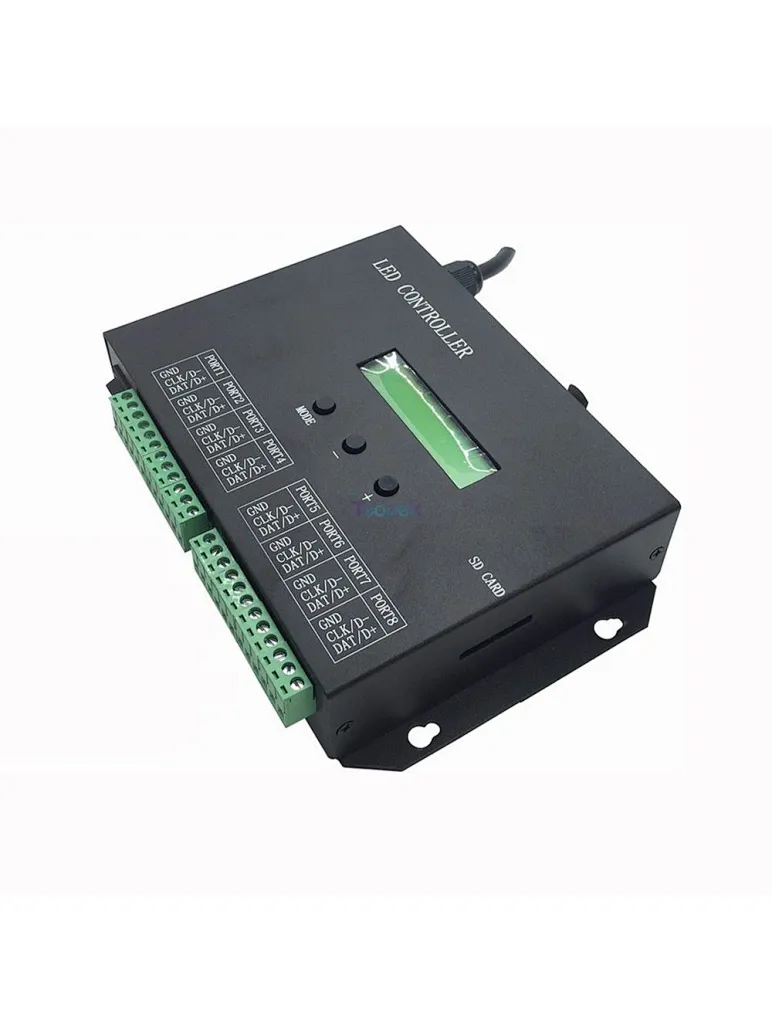

Product Display

For example:

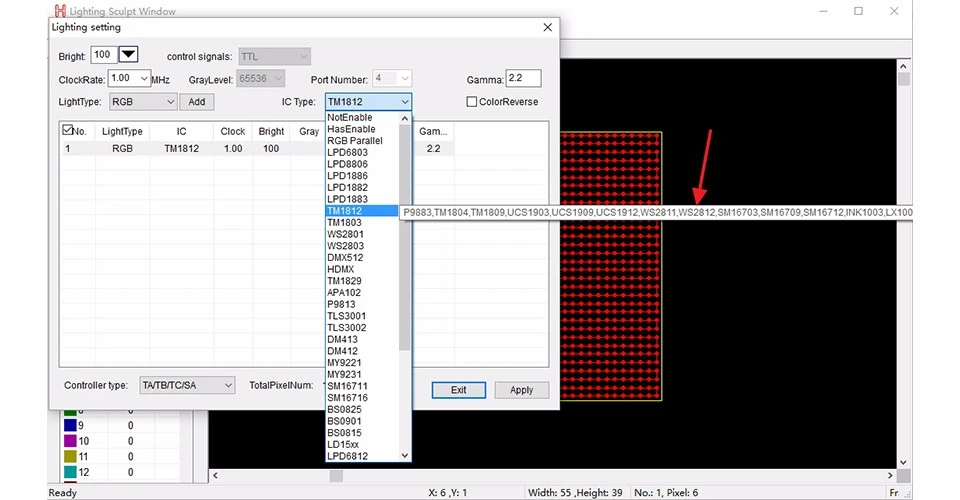

If you choose WS2812 in software.

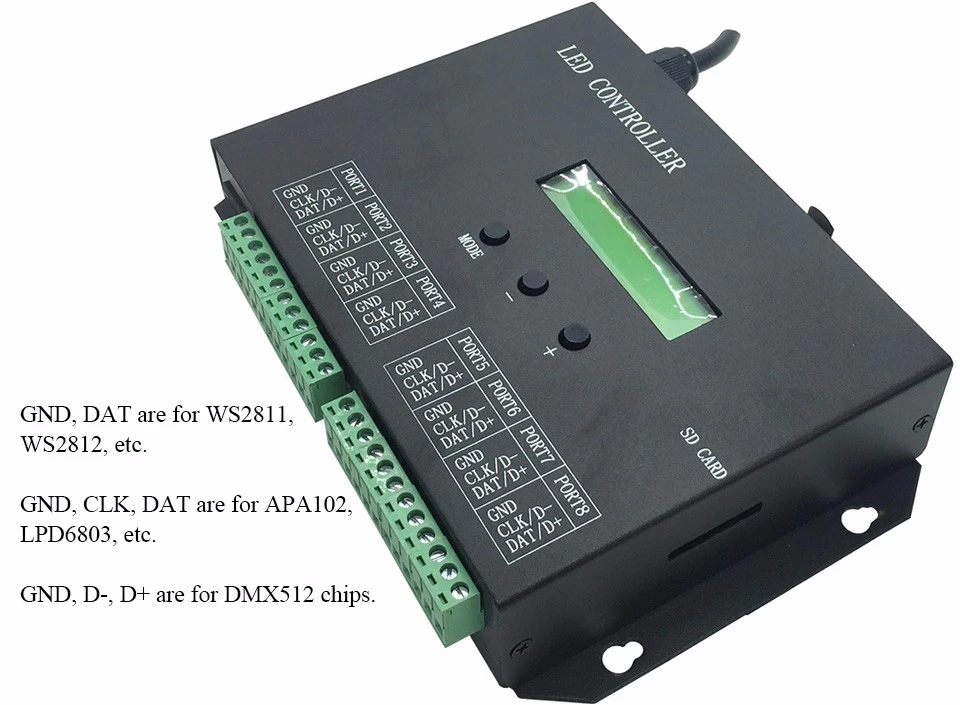

just connect GND, DAT

If you choose TM512

just connect GND, D-, D+.

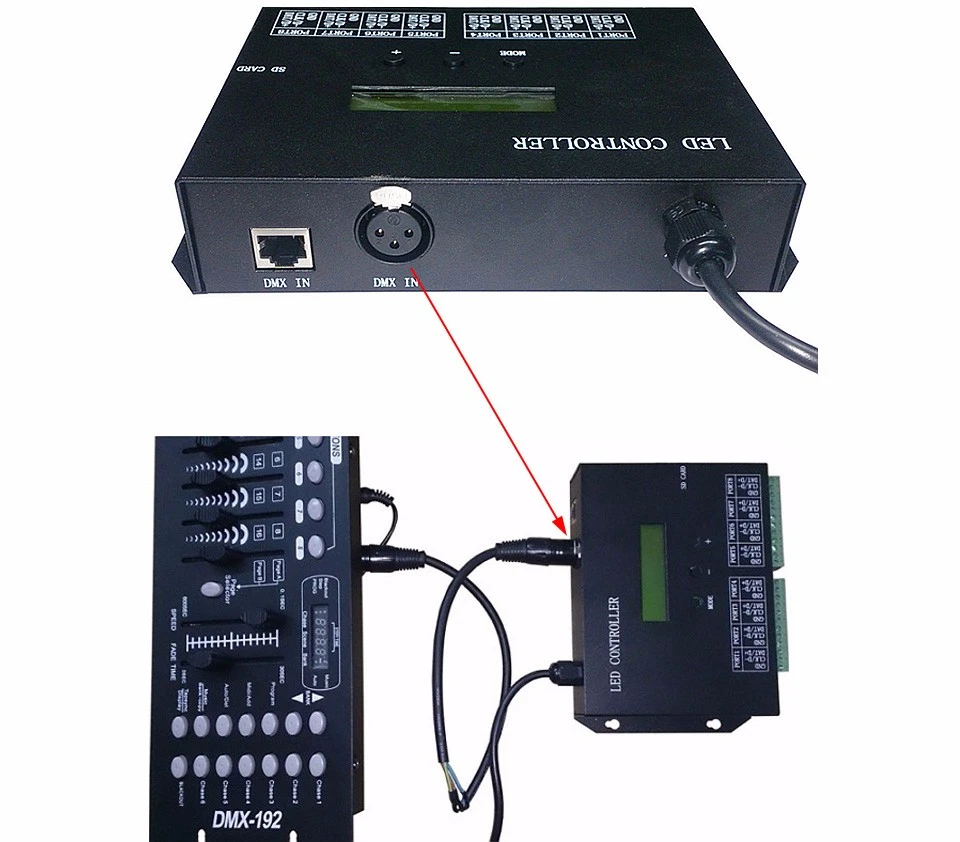

Connected to DMX console:

4. Basic Workflow

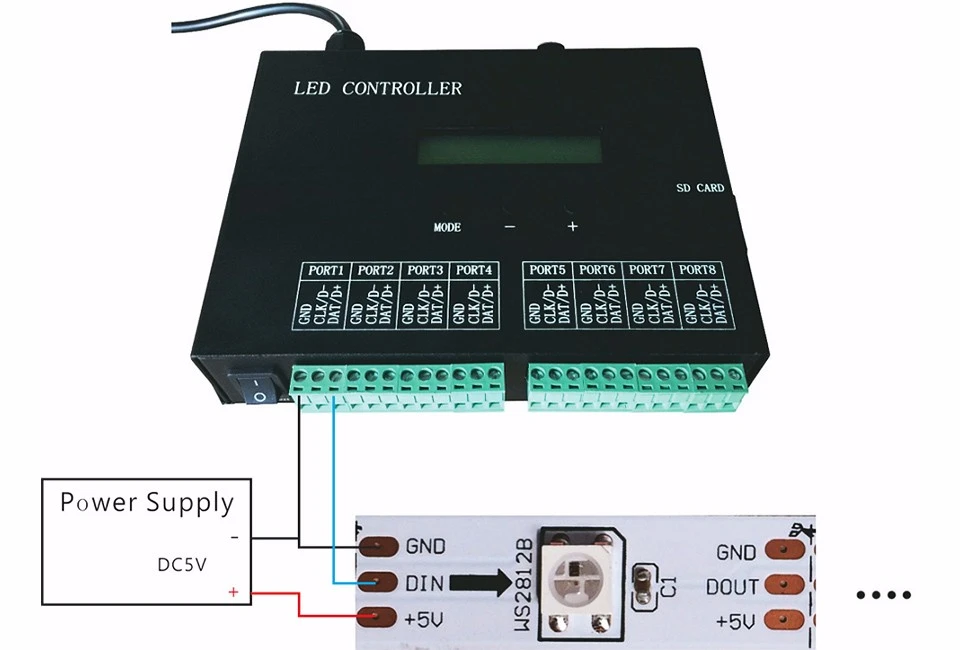

Step 1. Connect your strips to controller(take WS2812B for example)

SD card is used to store files programmed by LED Build.
H803SA has 8 ports, each port control maximum 1024 pixels.

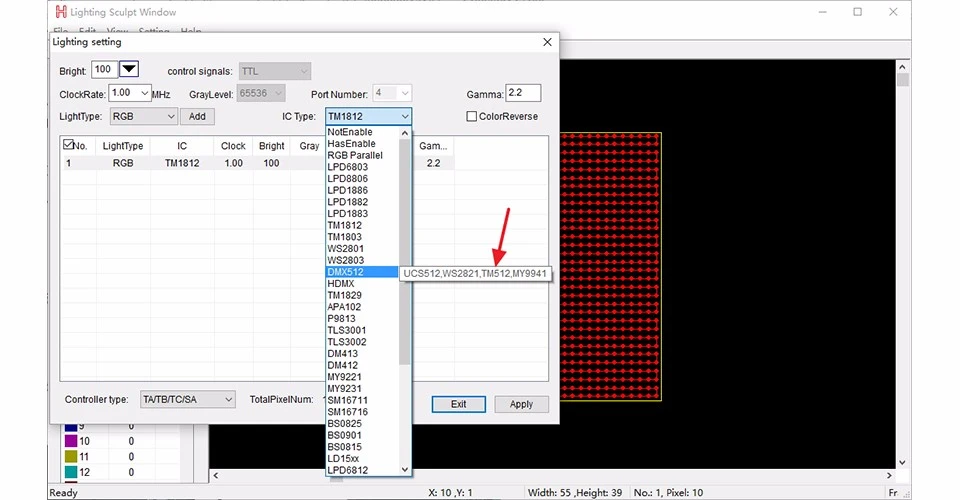

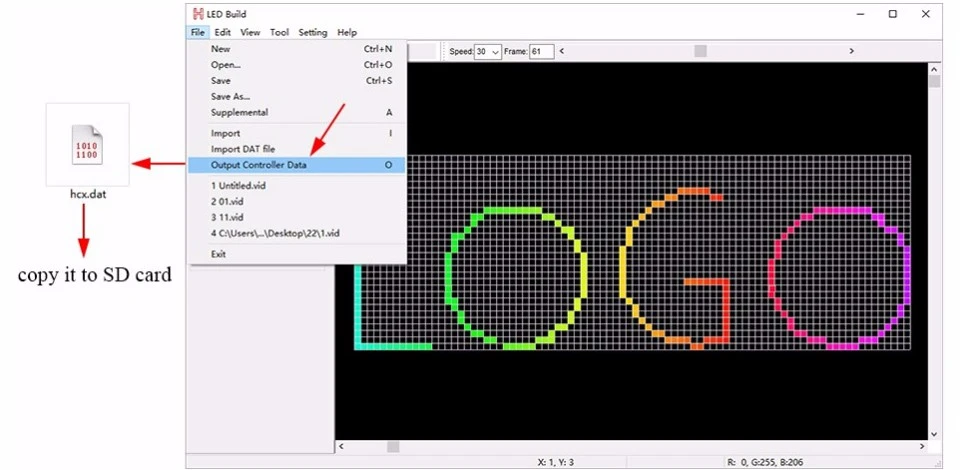

Step 2. Program with LED Build
LED Build and Tutorial Video Download:
LED Build: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video Download: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA
Video especially made for H803SA: https://drive.google.com/open?id=0B1gzqyV6hfOgNkdWbElSY2Jwb3M
Test file download: https://drive.google.com/open?id=0B1gzqyV6hfOgcE1DbDNKVG5uZmM (8 ports, each port 300 pixels, for WS2811, WS2812 and other single line chips)
Step 3. Store programs with SD card

Then insert SD card, power controller on.

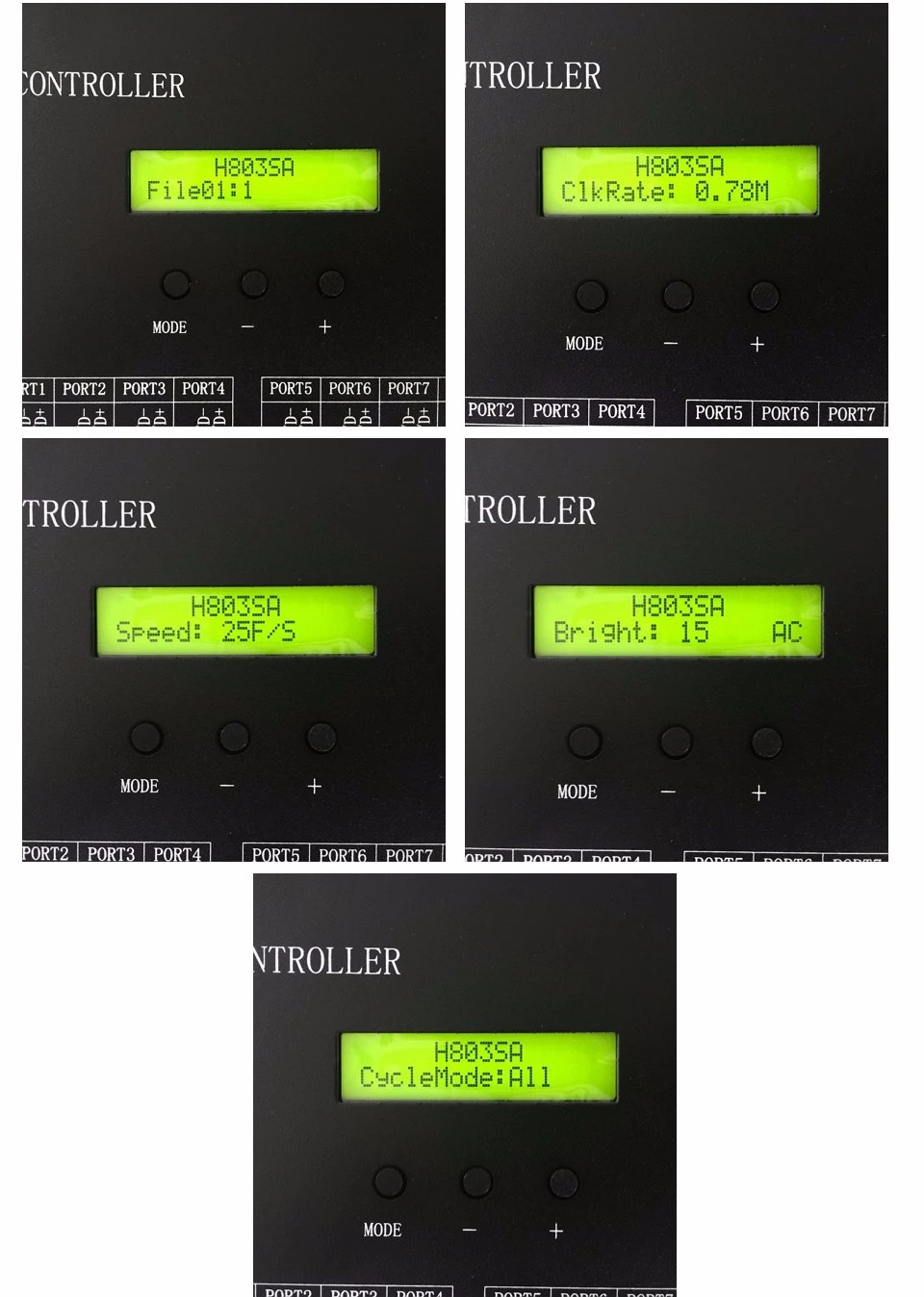

Step 4. Use three buttons to set lighting

5. Work with DMX Console(programs stored in SD card)

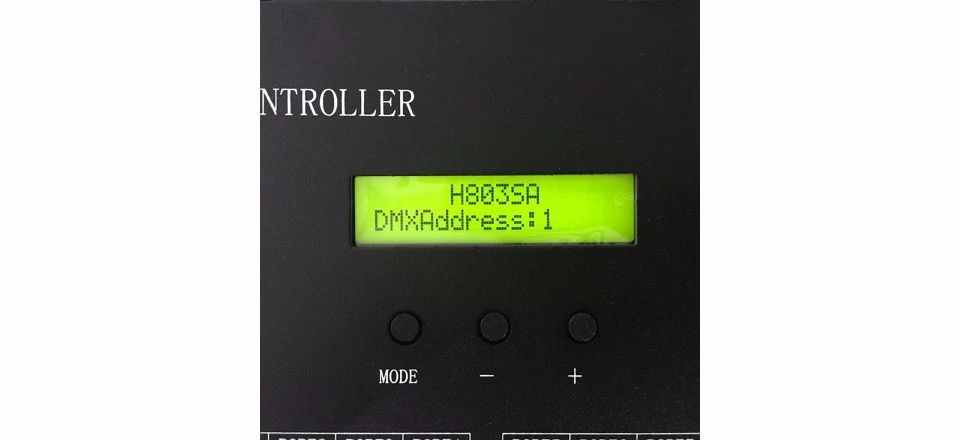

Set DMX Address

If DMX Address is 1, use channel 1, 2, 3 on console to switch files, adjust speed and brightness.
If DMX Address is 2, use channel 4, 5, 6 on console to switch files, adjust speed and brightness.


LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

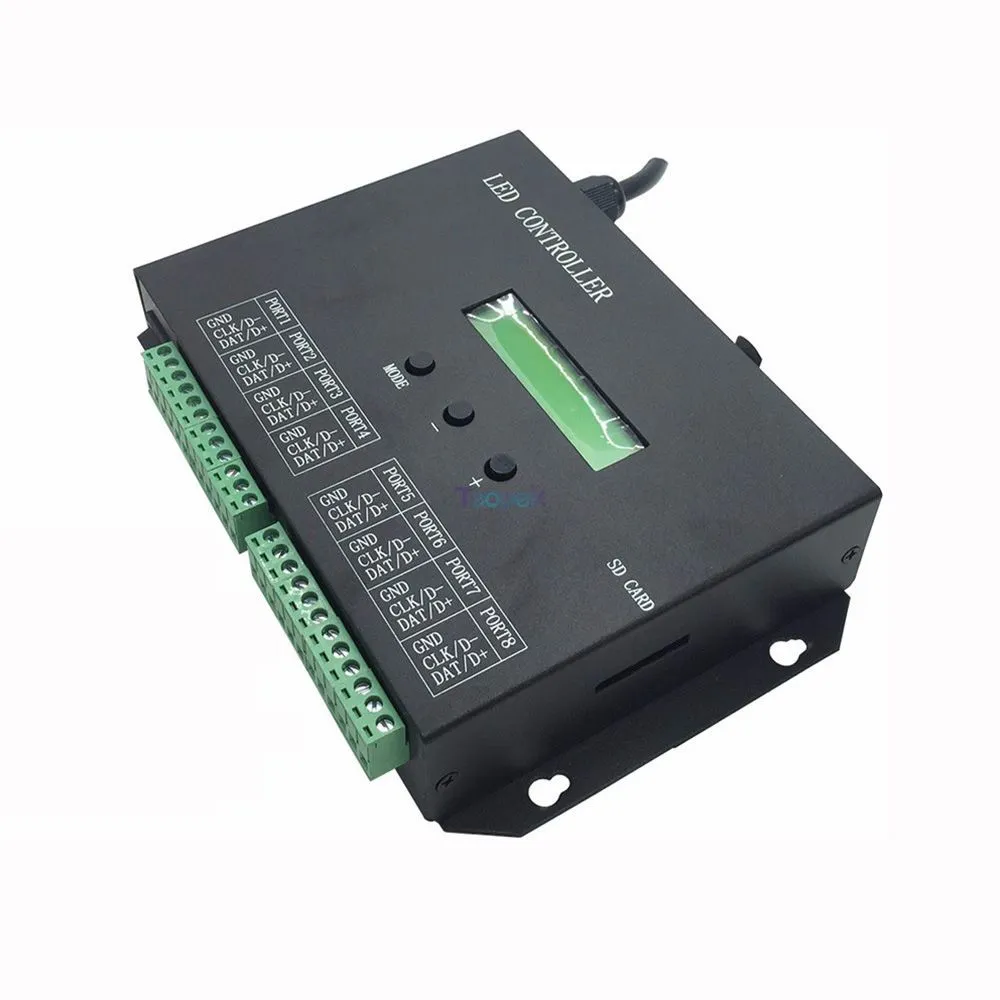

3. Product Display
