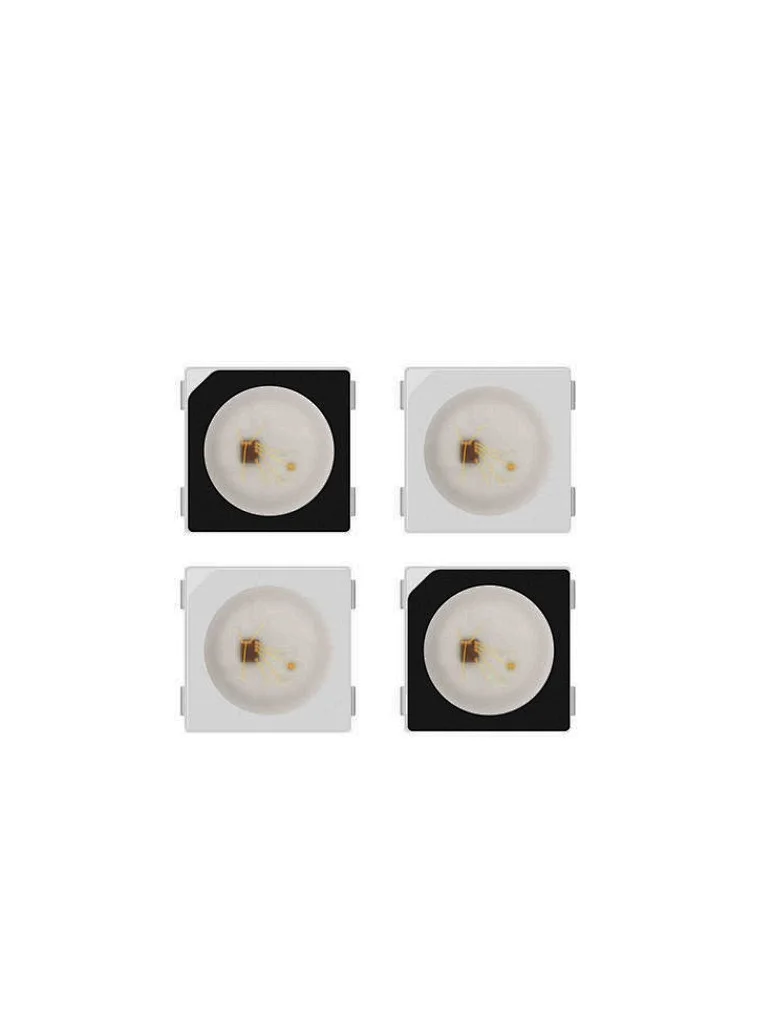

sk6812 mini
3535 sk6812 mini led chip
WS2812B LED灯珠-5V单点单控灯珠
WS2812B LED灯珠-5V单点单控灯珠
WS2812B LED灯珠-5V单点单控灯珠
sk6812 mini
3535 sk6812 mini led chip

WS2812B LED灯珠-5V单点单控灯珠

型号
HR12-ws2812B-5050
交货:
EXW
最小起订量:
1 包
供货能力:
10000000 包 / 天
原出产地:
深圳
备货期:
7-9 天
数量:

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

pixel addressable WS2818 led strip light manufacturer


Specification
  • The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
  • Intelligent Reverse-connection protection.
  • Using the builtin signal reshaping circuit to achieve the signal waveform shaping, and no distortion ofwaveform of signal takes place.
  • The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
  •  Serial cascade interface, data receiving and decoding depend on just one signal line.
  •  Dual-signal wires version, signal break-point continuous transmission.
  • Any two point the distance more than 5M transmission signal without any increase circuit.
  • When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
  • Data transmitting at speeds of up to 800Kbps.
  • Good color consistency reliability, high cost-effective.

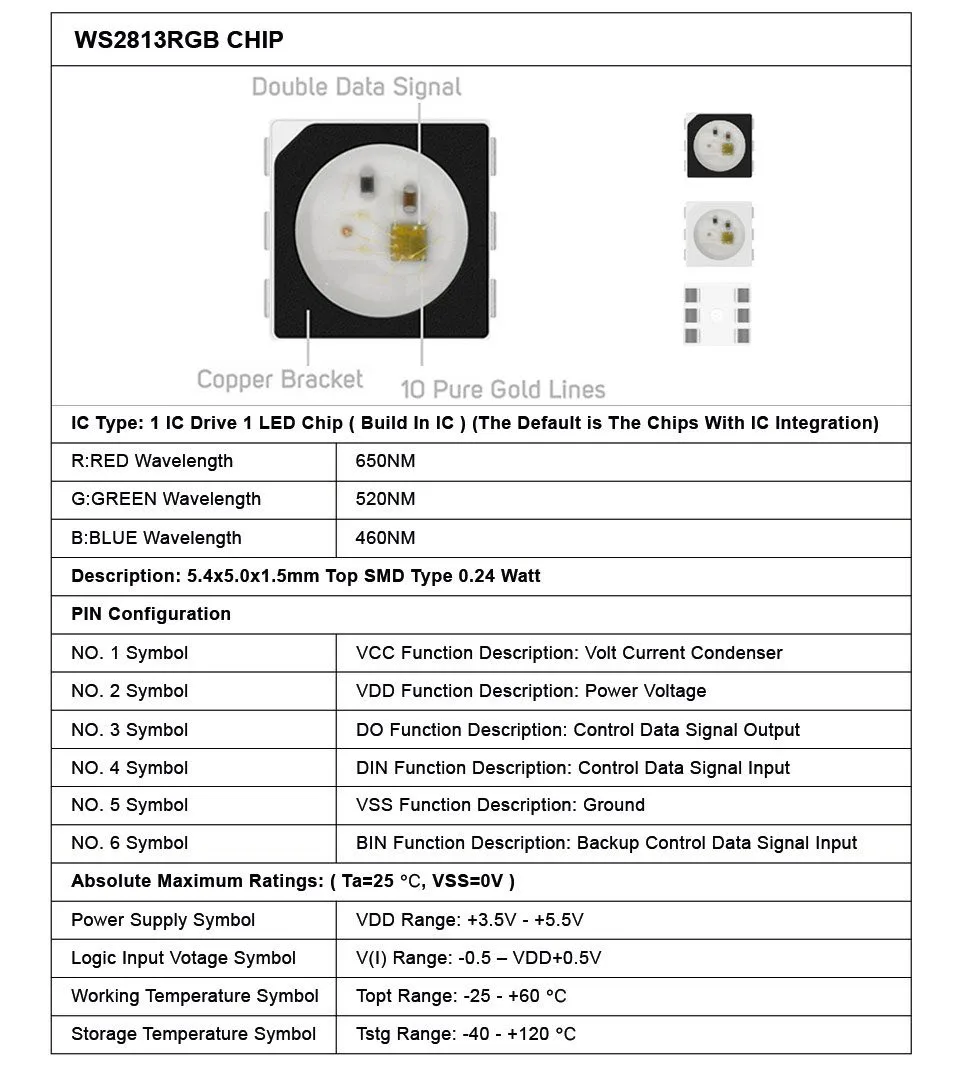

Technical Data

Model number                         WS2813 led

Color                                        Full color 16777216

Millicandela                             R 620-625 mcd G515-525 mcd  B 460-475mcd

Applied woltage                      DC5V

View angle                               H:120

Dimensions(mm)L*W*D         5.0*5.4*1.5mm

Tolerance:                               ±0.01mm

Operating temperature          -25˜60°C


Applications of led WS2813
Consumer Electronics.
Landscape lighting fields.
Computer peripheral products, games devices and machinery equipment etc.
led ws2813 led chip
