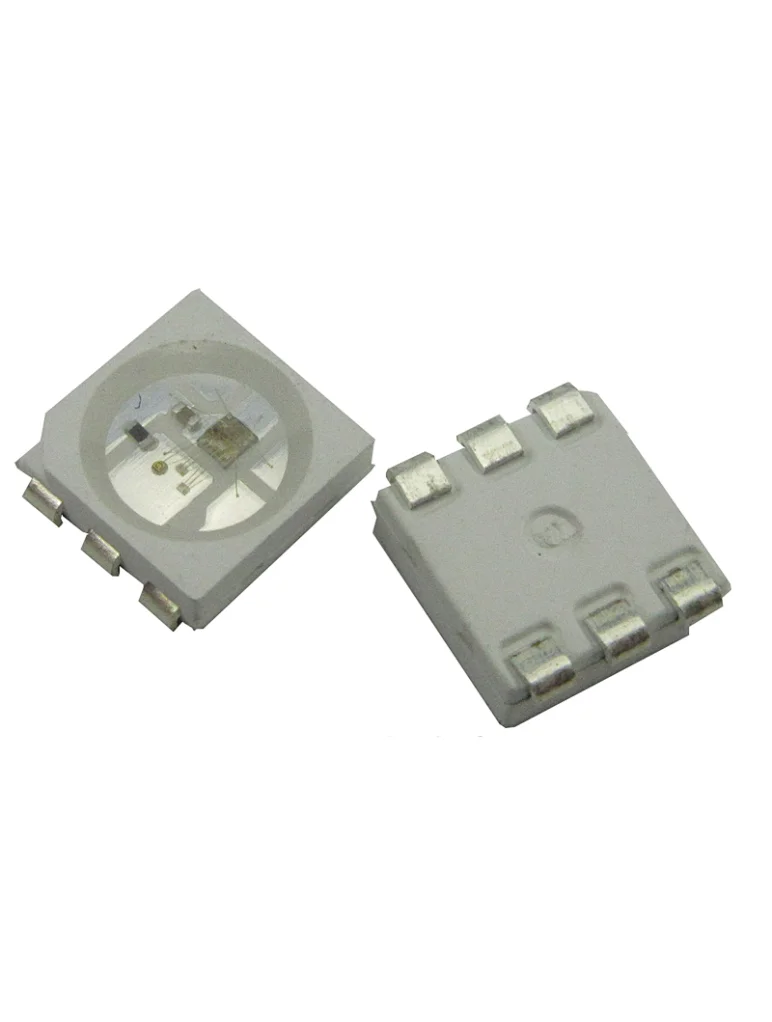

WS2815 led chip
WS2815 led chip
WS2815B led chip
WS2815 led chip
WS2815B led chip

sk6812 LED灯珠--白色/双色/RGB/RGBW

型号
HR12-ws2815-5050
交货:
EXW
最小起订量:
1 包
供货能力:
10000000 包 / 天
原出产地:
深圳
备货期:
7-9 天
数量:

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

pixel addressable WS2818 led strip light manufacturer


Specification
The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
12V power supply voltage can effectively reduce the working current of the whole pixel, reduce the voltage drop of the circuit board, and maximize the consistency of the mixed light when the pixel is transmitted over a long distance.
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.
The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
Serial cascade interface, data receiving and decoding depend on just one signal line.
Dual-signal wires version, signal break-point continuous transmission.
Any two point the distance more than 5M transmission signal without any increase circuit.
When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
Data transmitting at speeds of up to 800Kbps.
Good color consistency reliability, high cost-effective.
NO extra components needed, even the capacitor.

Applications
Consumer Electronics.
Landscape lighting fields.
Computer peripheral products, games devices and machinery equipment etc.

WS2815
ws2815 led chipws2815 ledled ws2815
