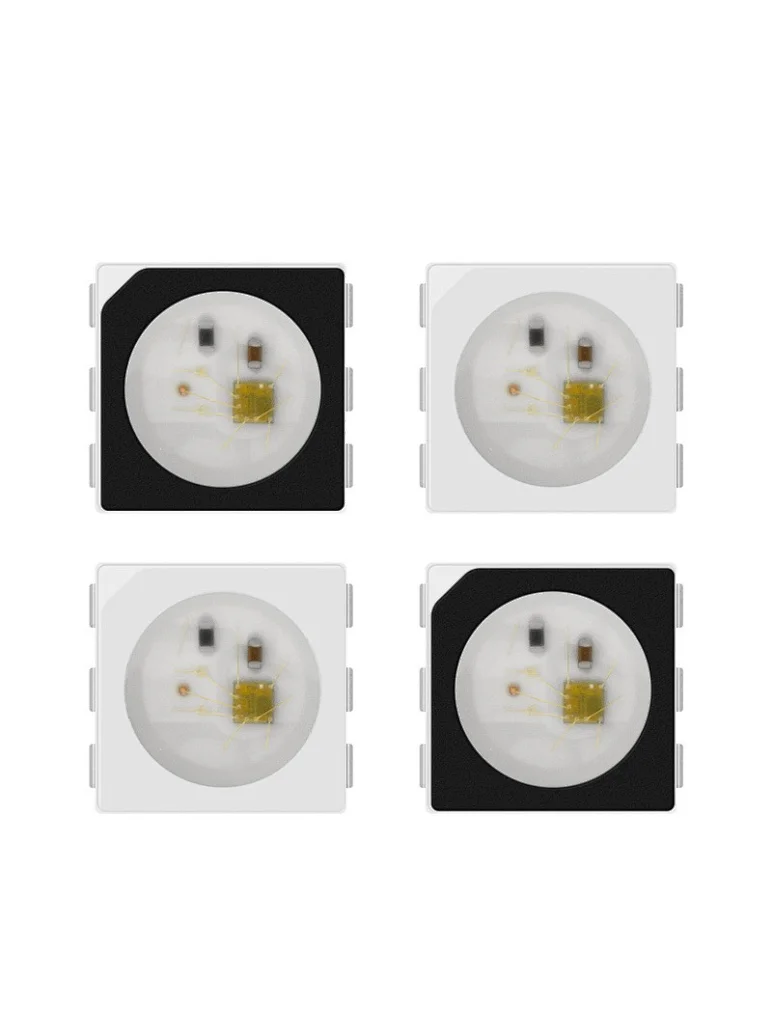

WS2813 LED灯珠--白色/双色/RGB/RGBW
HR12-ws2813-5050
EXW
1 包
10000000包 / 天
深圳
7-9天
专业为外贸商和工程师提供高质量的工程级别sk6812 LED灯珠--白色/双色/RGB/RGBW
数量

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

pixel addressable WS2818 led strip light manufacturer


Specification

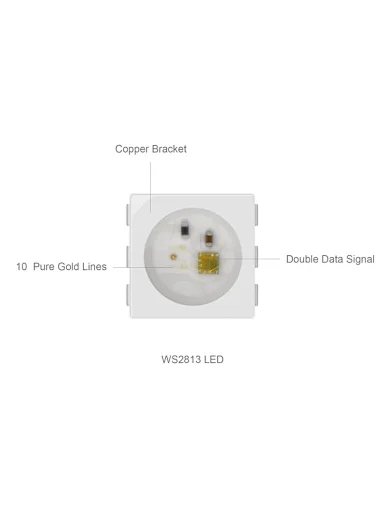

  • The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
  • Intelligent Reverse-connection protection.
  • Using the builtin signal reshaping circuit to achieve the signal waveform shaping, and no distortion ofwaveform of signal takes place.
  • The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
  •  Serial cascade interface, data receiving and decoding depend on just one signal line.
  •  Dual-signal wires version, signal break-point continuous transmission.
  • Any two point the distance more than 5M transmission signal without any increase circuit.
  • When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
  • Data transmitting at speeds of up to 800Kbps.
  • Good color consistency reliability, high cost-effective.
Technical Data

Model number                         WS2813 led

Color                                        Full color 16777216

Millicandela                             R 620-625 mcd G515-525 mcd  B 460-475mcd

Applied woltage                      DC5V

View angle                               H:120

Dimensions(mm)L*W*D         5.0*5.4*1.5mm

Tolerance:                               ±0.01mm

Operating temperature          -25˜60°C


Applications of led WS2813
Consumer Electronics.
Landscape lighting fields.
Computer peripheral products, games devices and machinery equipment etc.

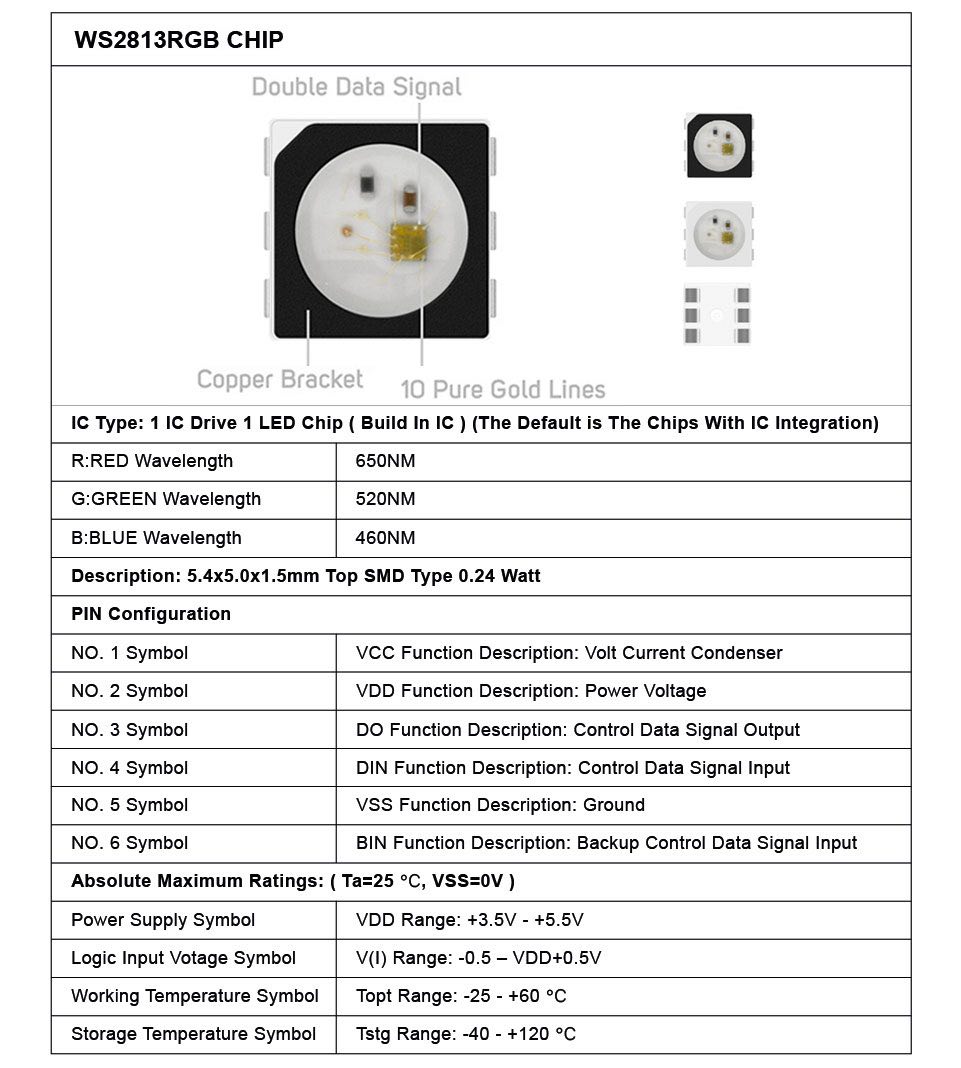

led ws2813 led chip
