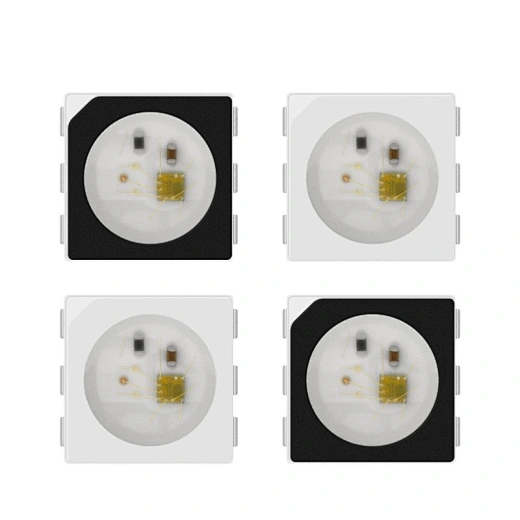

ws2813 led chip 5V individually addressable, breakpiont continuous transmission
HR12-ws2813-5050
Best manufacturer & supplier of China best individually addressable 5V breakpiont continuous transmission ws2813 led chip from Hanron Lighting.
Delivery
EXW
minimum order
1 pack
Supply Ability
10000000pack / Day
Country of Origin
shenzhen
Stock Time
7-9Day
Quantity:
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.
Feature of ws2813 led chip
- The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
- Intelligent Reverse-connection protection.
- Using the built-in signal reshaping circuit to achieve the signal waveform shaping, no distortion of the waveform of the signal takes place.
- The gray levels of each pixel are 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
- Serial cascade interface, data receiving and decoding depend on just one signal line.
- Dual-signal wires version, signal break-point continuous transmission.
- For any two points, the distance is more than 5M transmission signal without any increase circuit.
- When the refresh rate is 30fps, cascade numbers are at least 1024 pixels.
- Data transmitting at speeds of up to 800Kbps.
- Good color consistency reliability, high cost-effective.

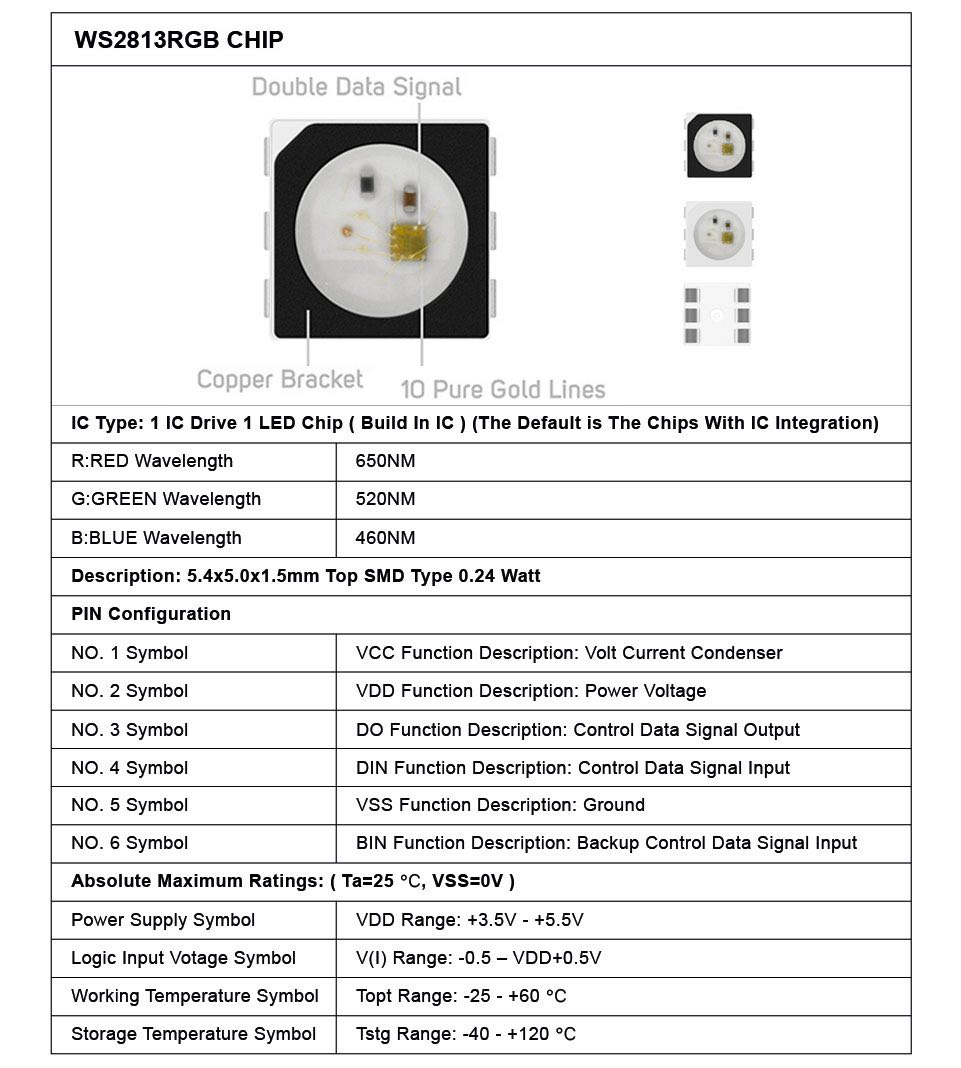

Technical Data
Model number led ws2813 led chip
Color Full color 16777216
Millicandela R 620-625 mcd G515-525 mcd B 460-475mcd
Applied Voltage DC5V
View angle H:120
Dimensions(mm)L*W*D 5.0*5.4*1.5mm
Tolerance: ±0.01mm
Operating temperature -25˜60°C
Applications of led ws2813 led chip
1. Consumer Electronics.
2. Landscape lighting fields.
3. Computer peripheral products, games devices and machinery equipment, etc.
