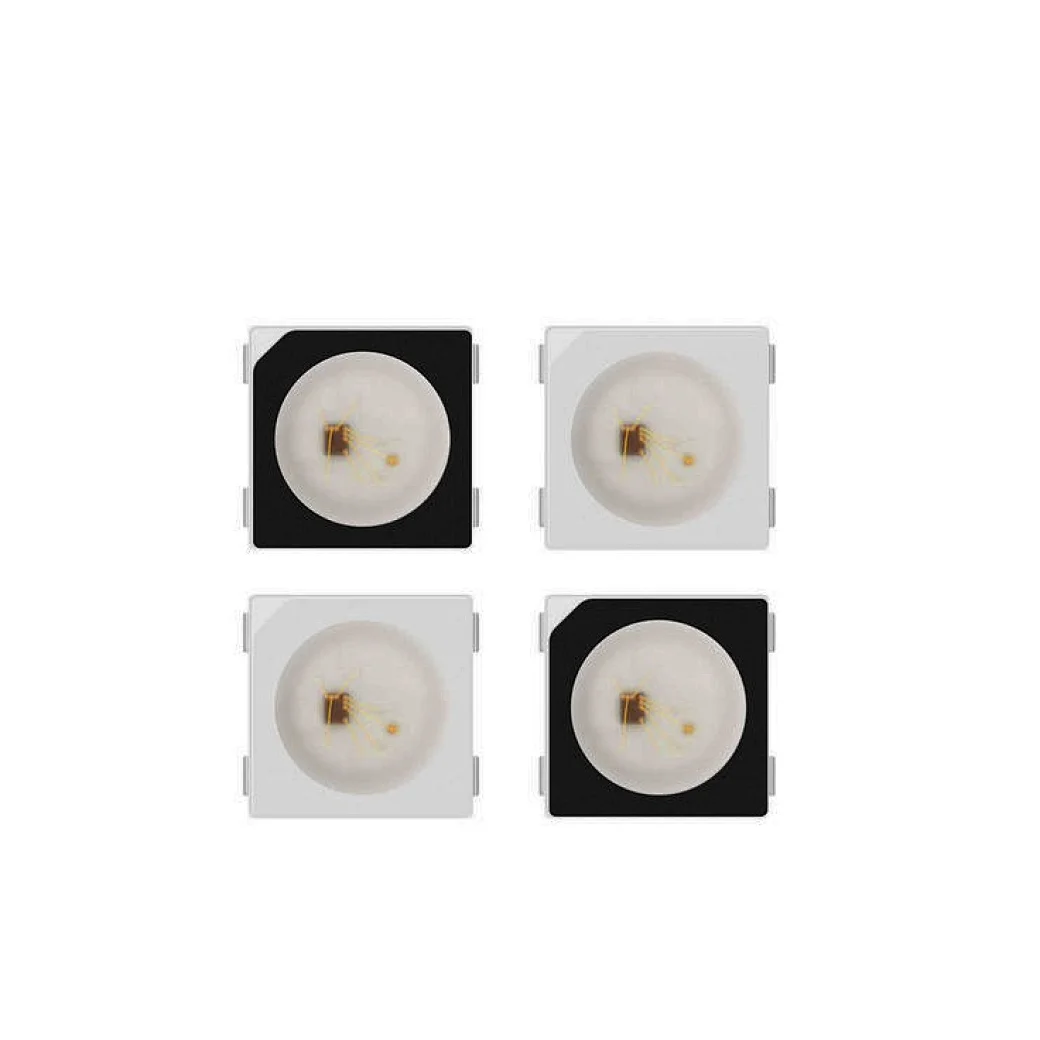

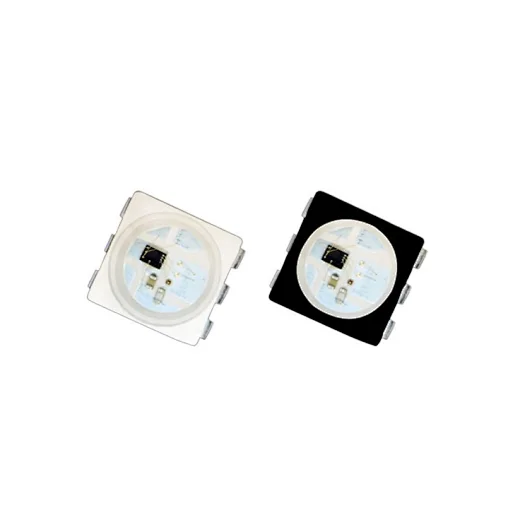

WS2812B led chip
WS2812B led chip
WS2812B led chip

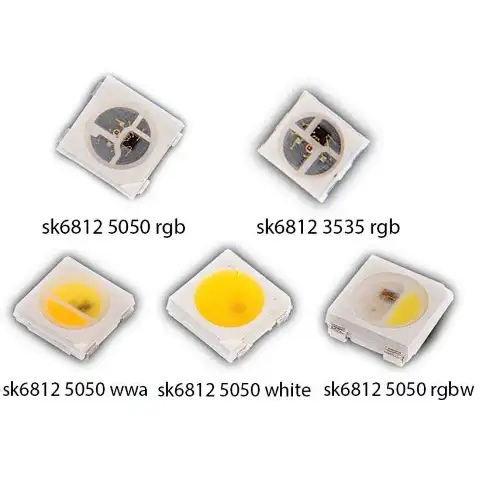

sk6812 mini
3535 sk6812 mini led chip
Model No: HR12-ws2812B-5050

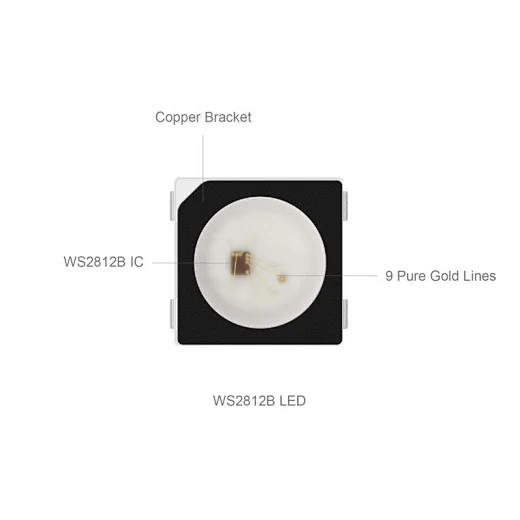

WS2812B LED Chip -5V individually addressable led chip

We are the leader in pixel led lights dedicated to provide you with quality China best WS2813 LED Chip -5V individually addressable, breakpiont continuous transmission
Delivery :
EXW
minimum order :
1 pack
Supply Ability :
10000000pack / Day
Stock Time :
7-9Day
Country of Origin :
shenzhen
Quantity :
Download:
Contact Now

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


pixel addressable WS2818 led strip light manufacturer

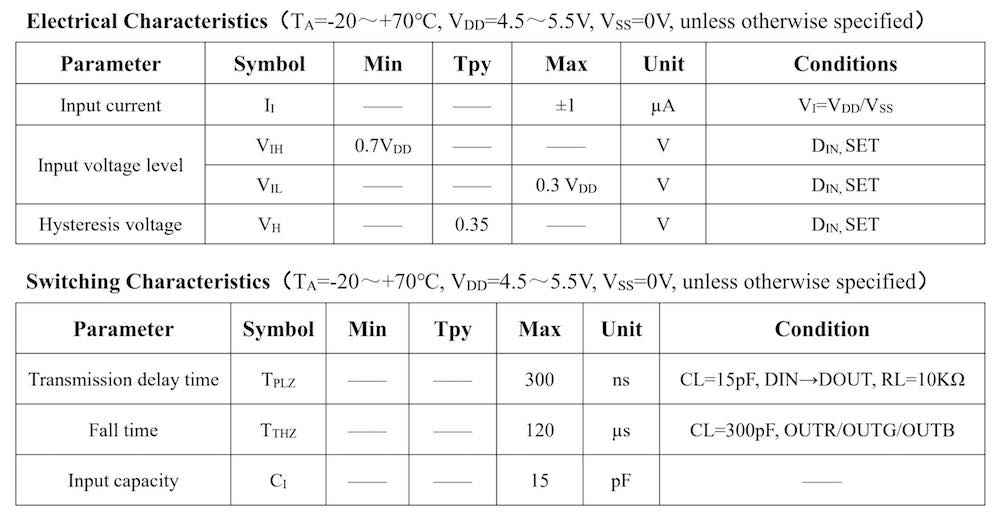

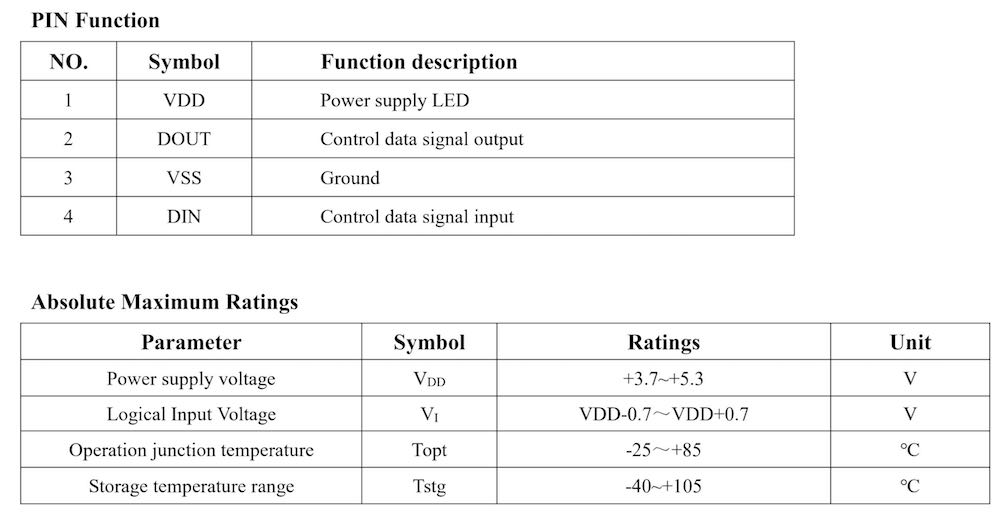

Specification of WS2812B led chip


Features and Benefits
1. The control circuit and the LED share the only power source.
2. Control circuit and RGB chip are integrated into a package of 5050 components, to form a complete addressable pixel.
3. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion does not accumulate.
4. Built-in electric reset circuit and power lost reset circuit.
5. Each pixel of the three primary colors can achieve a 256 brightness display, a completed 16777216 color full-color display, and a scan frequency of 2KHz.
6. Cascading port transmission signal by a single line.
7. Any two points, the distance not more than 3m transmission signal without any increase circuit.
8. When the refresh rate is 30fps, the cascade number is not less than 1024 pixels.
9. Send data at speeds of 800Kbps.
10. The color of the light is highly consistent, cost-effective..

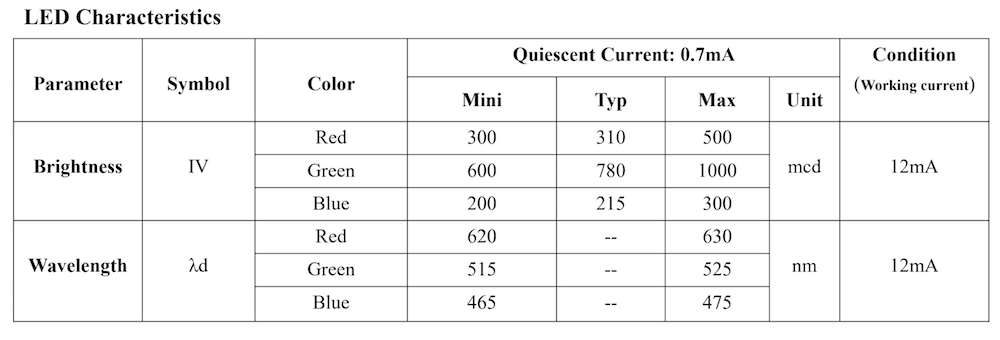

Technical Data

Model number                         WS2813 led

Color                                      Full color 16777216

Millicandela                             R 620-625 mcd G515-525 mcd  B 460-475mcd

Applied Voltage                       DC5V

View angle                              H:120

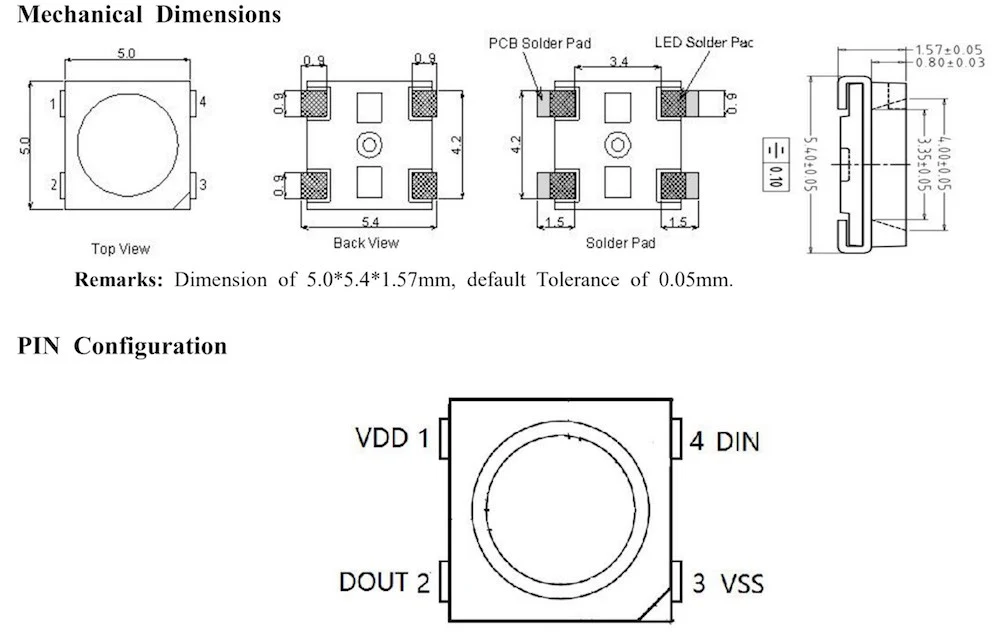

Dimensions(mm)L*W*D           5.0*5.4*1.5mm

Tolerance:                               ±0.01mm

Operating temperature             -25˜60°C


Applications of led WS2812B

1.  Consumer Electronics.
2. Landscape lighting fields.
3. Computer peripheral products, games devices and machinery equipment, etc.
