3535 Sk6812 mini LED Chip -mini 5V individually addressable led chip

Best manufacturer & supplier of China best 3535 Sk6812 mini LED Chip mini 5V individually addressable led chip from Hanron Lighting.

Delivery :

FOB Shenzhen

minimum order :

100 pieces

Supply Ability :

10000000pieces / Day

Stock Time :

7Day

Country of Origin :

shenzhen

Quantity :

Download:

Contact Now

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

pixel addressable WS2818 led strip light manufacturer

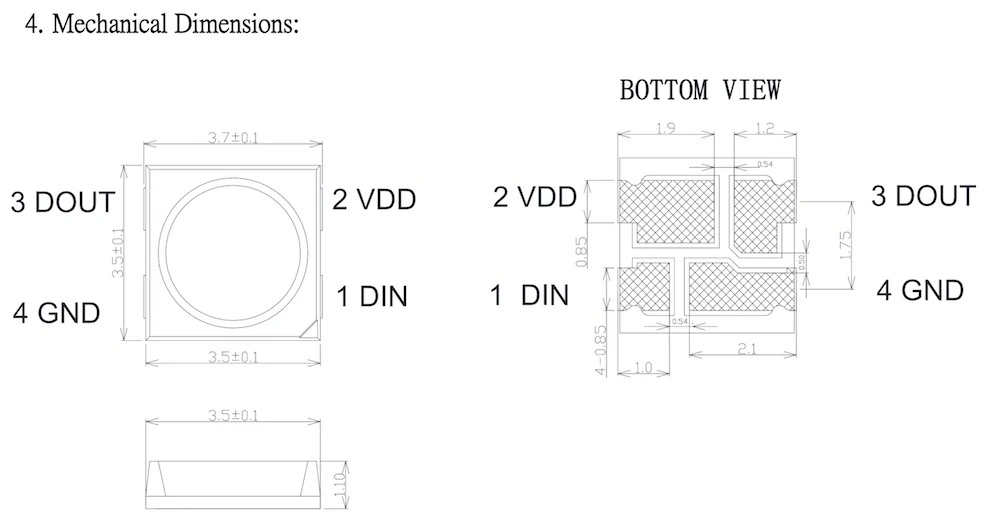

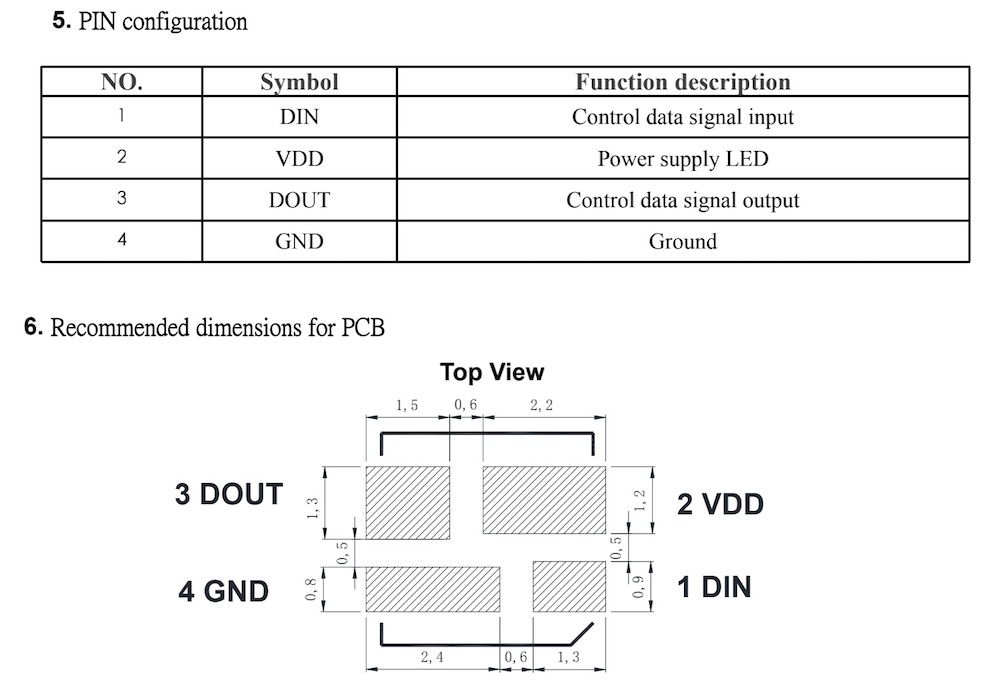

Specification of sk6812 mini led chip

Features and Benefits

1. Top SMD internal integrated high quality external control line serial cascade constant current IC;
2. control circuit and the RGB chip in SMD 3535 components, to form a complete control of pixel, color
mixing uniformity and consistency;
3. built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
4. The built-in power on reset and reset circuit, the power does not work;
5. gray level adjusting circuit (256 level gray scale adjustable);
6. red drive special treatment, color balance;
7. line data transmission;
8. plastic forward strengthening technology, the transmission distance between two points over 10M;
9. Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

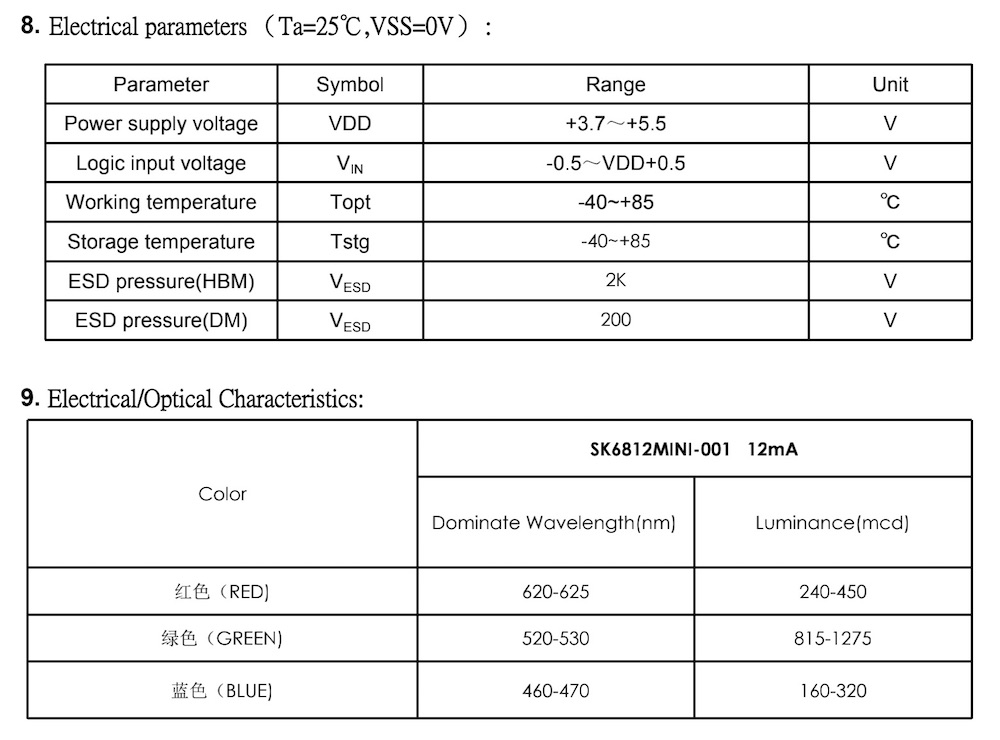

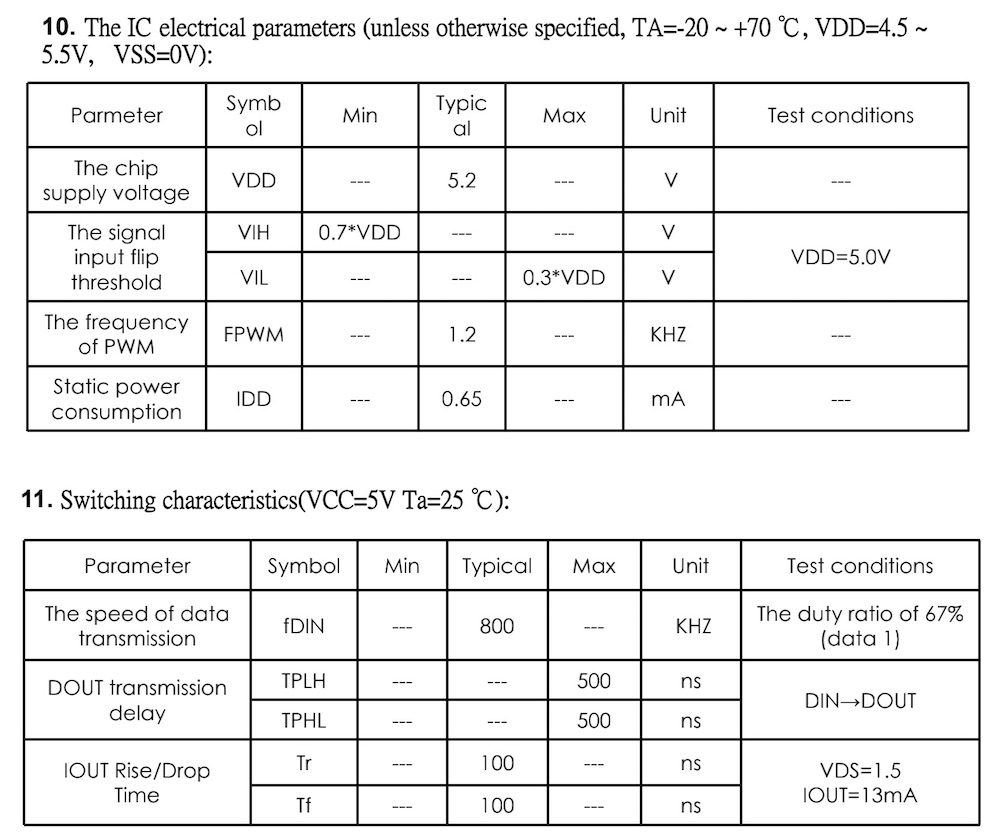

Technical Data

Model number sk6812 mini led chip

Color Full color 16777216

Millicandela R 620-625 mcd G515-525 mcd B 460-475mcd

Applied Voltage DC5V

View angle H:120

Operating temperature -25˜60°C

Applications

1. Consumer Electronics.

2. Landscape lighting fields.

3. Computer peripheral products, games devices and machinery equipment, etc.
