产品展示

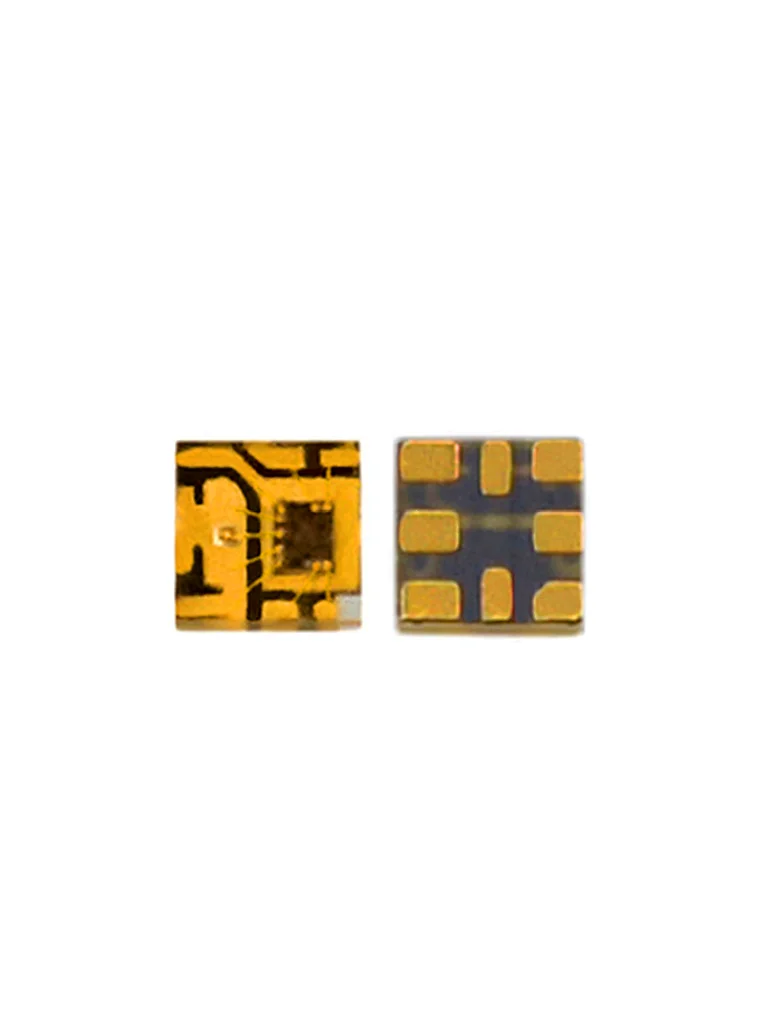

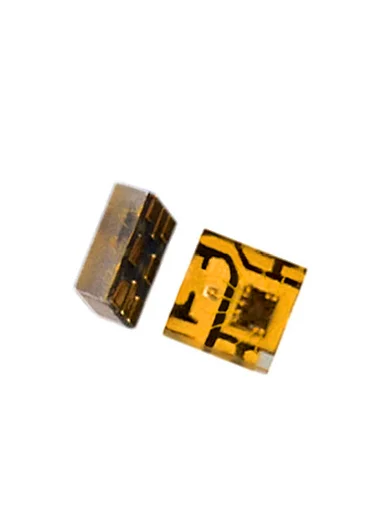

sk9822 2020 LED灯珠
HR12-sk9822-2020
EXW
1 包
10000000包 / 天
深圳
7-9天
专业为外贸商和工程师提供高质量的工程级别SK9822 SK9801 2020/1515 LED灯珠
数量

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

pixel addressable WS2818 led strip light manufacturer


Specification
  • RGB Single point of control
  • 8Bit(256 level)color set
  •  5Bit(32level)brightnessadjustment
  • ICinput voltage 4.5v”7.5v
  •  12mA,Contant current output
  • Anti-Reflectionresin
  • View angle : >=120 (min 50% brightness)
  • High contrast

Absolute Maximum Rat:

  1. Supply voltage -0.3 to 0.6V
  2. Input voltage VSS -0.3 to VDD +0.3V
  3. Operation temperature -40 to 85 ℃
  4. Storagetemperature -40 to 85℃
  5. Note:Stress abovethose listed maycause permanent damagetothe devices.

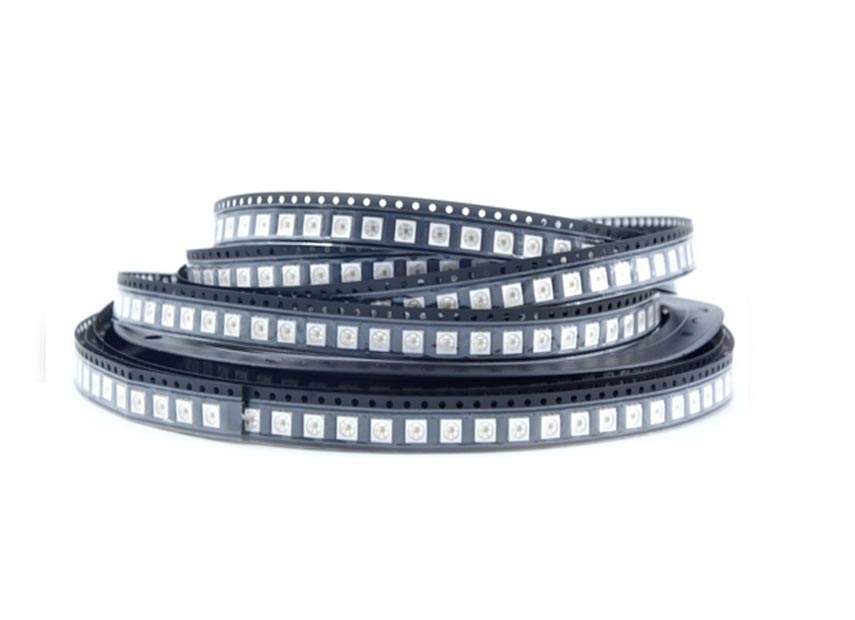

DC5V Addressable Digital LED Diode SK6805-1515 integrated With IC built-in EC15 SK6805 1515 RGB SMD LED ChipDC5V Addressable Digital LED Diode SK6805-1515 integrated With IC built-in EC15 SK6805 1515 RGB SMD LED ChipDC5V Addressable Digital LED Diode SK6805-1515 integrated With IC built-in EC15 SK6805 1515 RGB SMD LED Chip

DC5V Addressable Digital LED Diode SK6805-1515 integrated With IC built-in EC15 SK6805 1515 RGB SMD LED Chip
