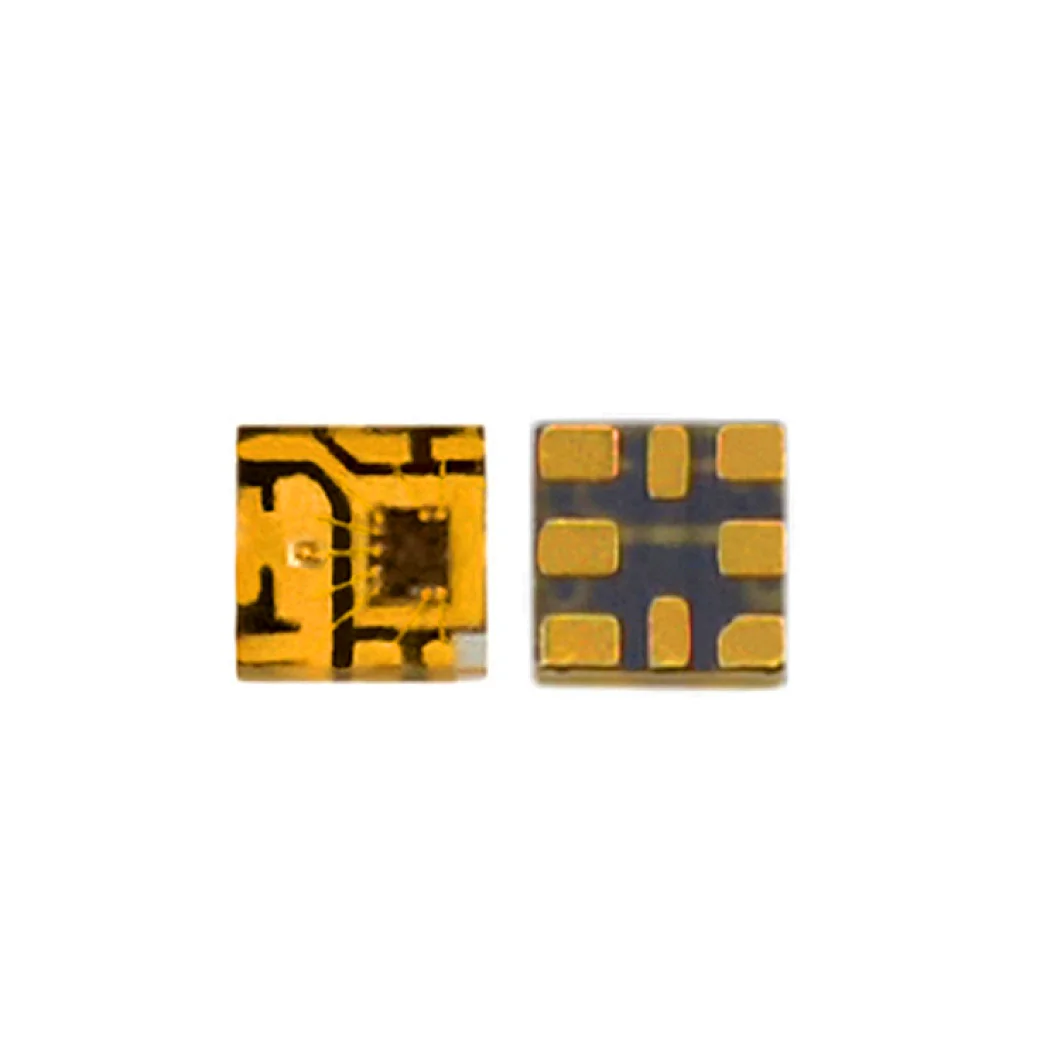

SK9822 SK9801 2020/1515 LED Chip
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

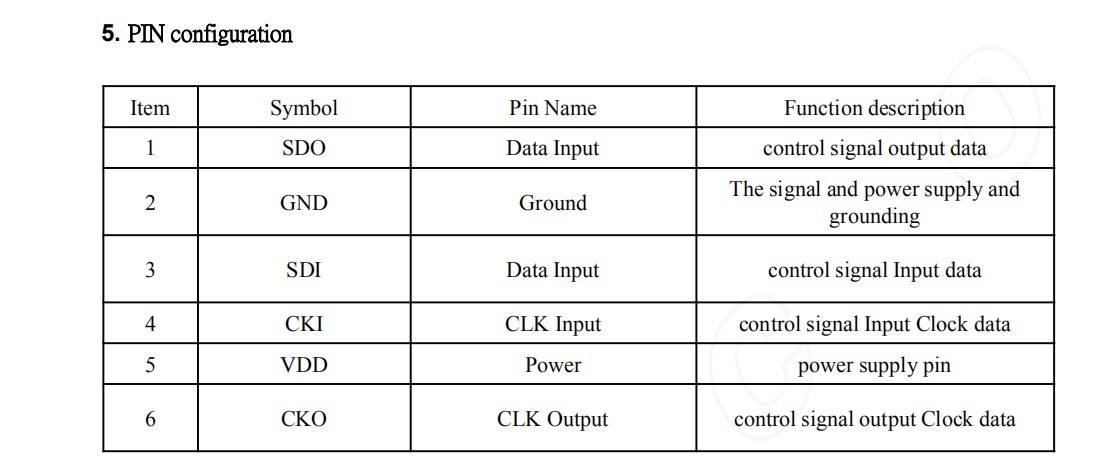

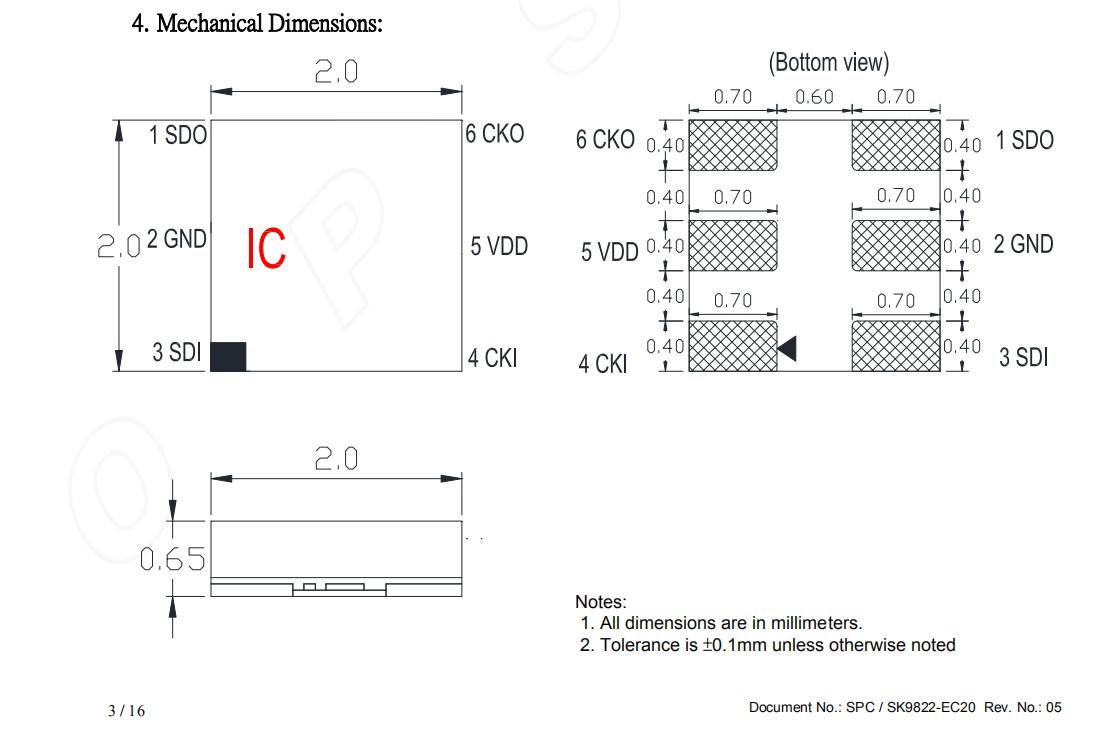

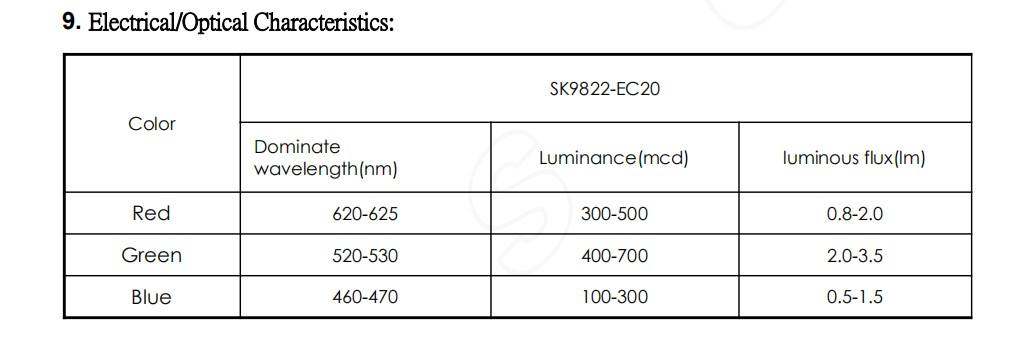

Specification of sk9822 led chip
- RGB Single point of control
- 8Bit(256 level)color set
- 5Bit(32level) brightness adjustment
- IC input voltage 4.5v”7.5v
- 12mA, constant current output
- Anti-Reflectionresin
- View angle: >=120 (min 50% brightness)
- High contrast
Absolute Maximum Rat:
1. Supply voltage -0.3 to 0.6V2. Input voltage VSS -0.3 to VDD +0.3V
3. Operation temperature -40 to 85 ℃
4. Storagetemperature -40 to 85℃
5. Note: Stress above those listed may cause permanent damage to the devices.
