Model No: HR00-COB24AW1920P15

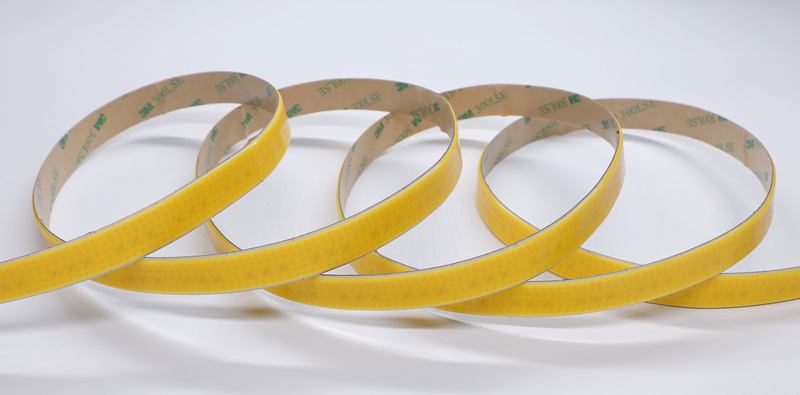

15mm 1920Chips/M White COB led strip

DC24V, 25W/M, 2500LM/M
Delivery :
FOB
minimum order :
200 meters
Supply Ability :
300000meters / Month
Stock Time :
7Day
Country of Origin :
Shenzhen, China
Quantity :
Download:
15mm White COB 1920chip 25W LED strip specification.pdf
Contact Now


Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


certificate of 15mm 1920Chips/M White COB led strip


Specification of 15mm 1920Chips/M White COB led strip



15mm 1920Chips/M White COB led strip

Strip Type15mm 1920Chips/M White COB led strip
LED TypeCOB
LED QTY1920LED/M
VoltageDC24V
Cutting Length20.67mm
CRI90
CCT2700K/3000K/3500K/4000K/6000K
Brightness2500lm/M
Dimension5000*15mm
IP RatingIP20
Power25W/M
Lifespan30000hrs
Warranty3year




Dimension(mm)

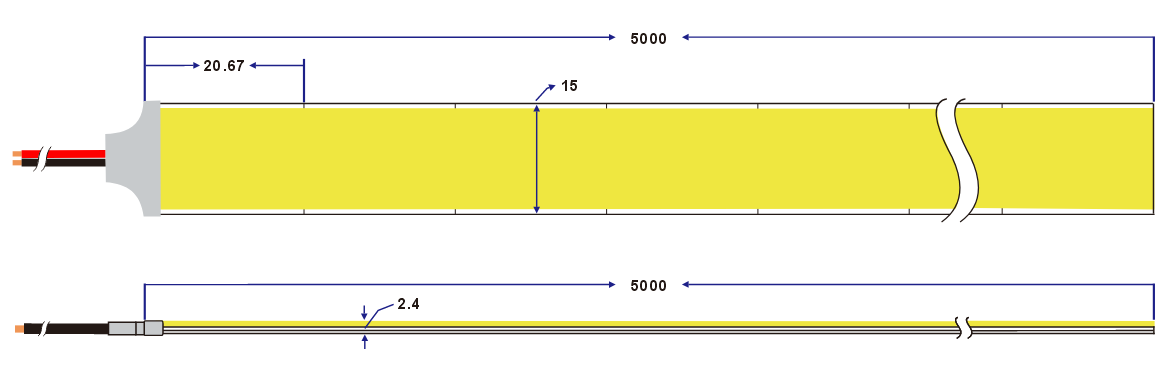

dimension of 15mm 1920Chips/M White COB led strip


Installation of 15mm 1920Chips/M White COB led strip




Installation of 15mm 1920Chips/M White COB led strip

Installation of 15mm 1920Chips/M White COB led strip

Application of 15mm 1920Chips/M White COB led strip



Application of 15mm 1920Chips/M White COB led strip

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
