Model No: HR-10X3XC

3pin 10mm CCT Adjustable COB LED Strip Connector

Quantity :
Download:
Contact Now

3pin 10mm CCT Adjustable COB LED Strip Connector

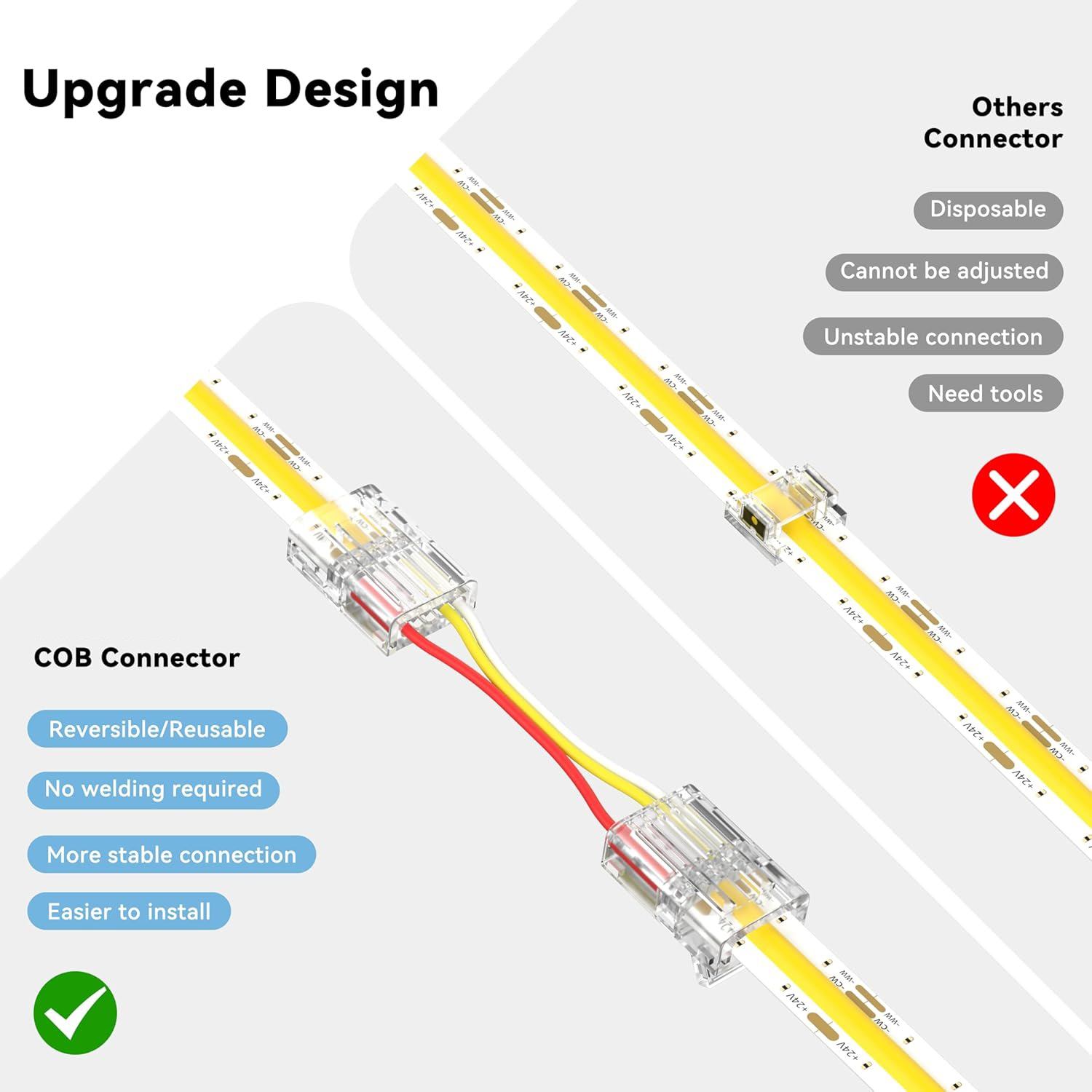

advantage of 3pin 10mm CCT Adjustable COB LED Strip Connector

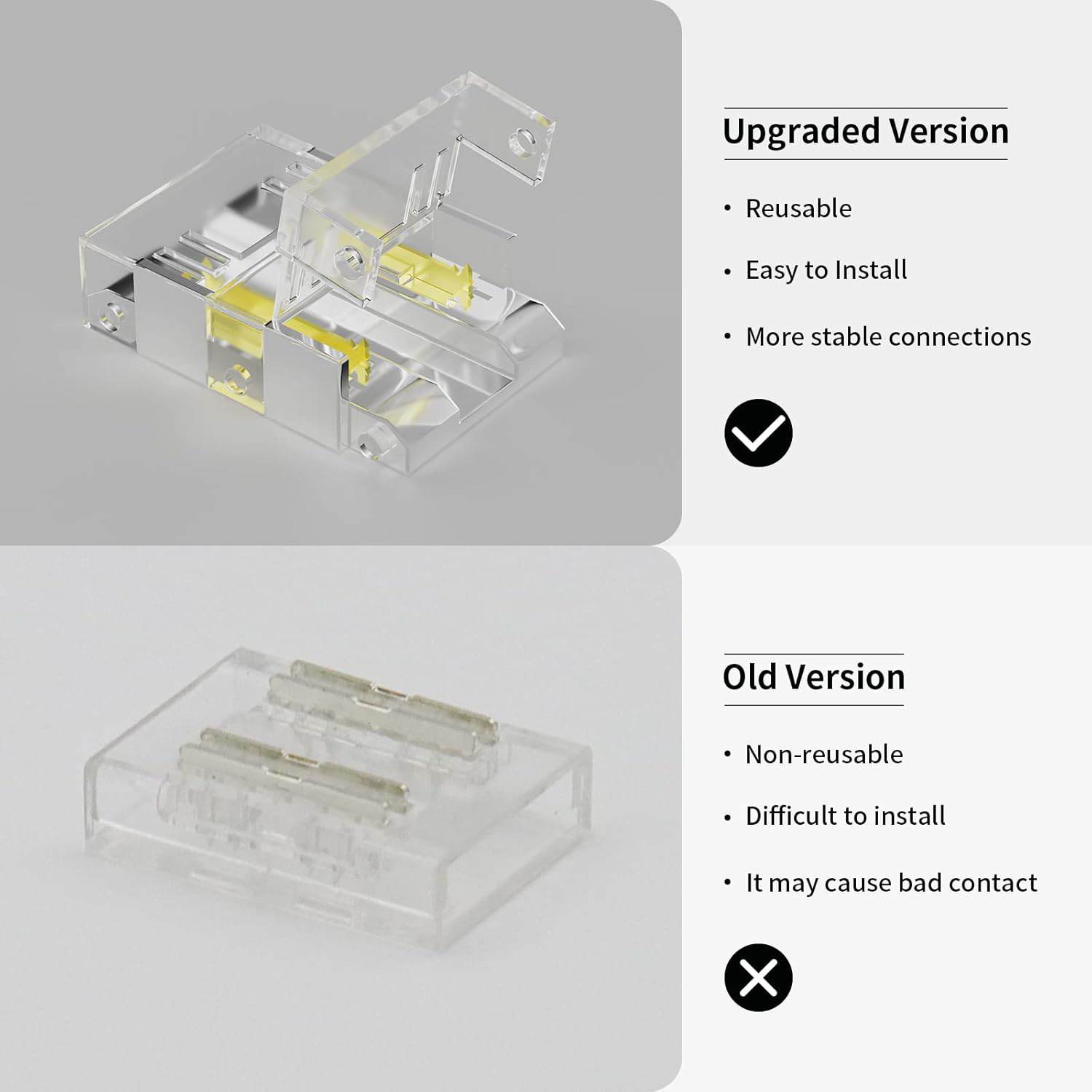

advantage of 3pin 10mm CCT Adjustable COB LED Strip Connector

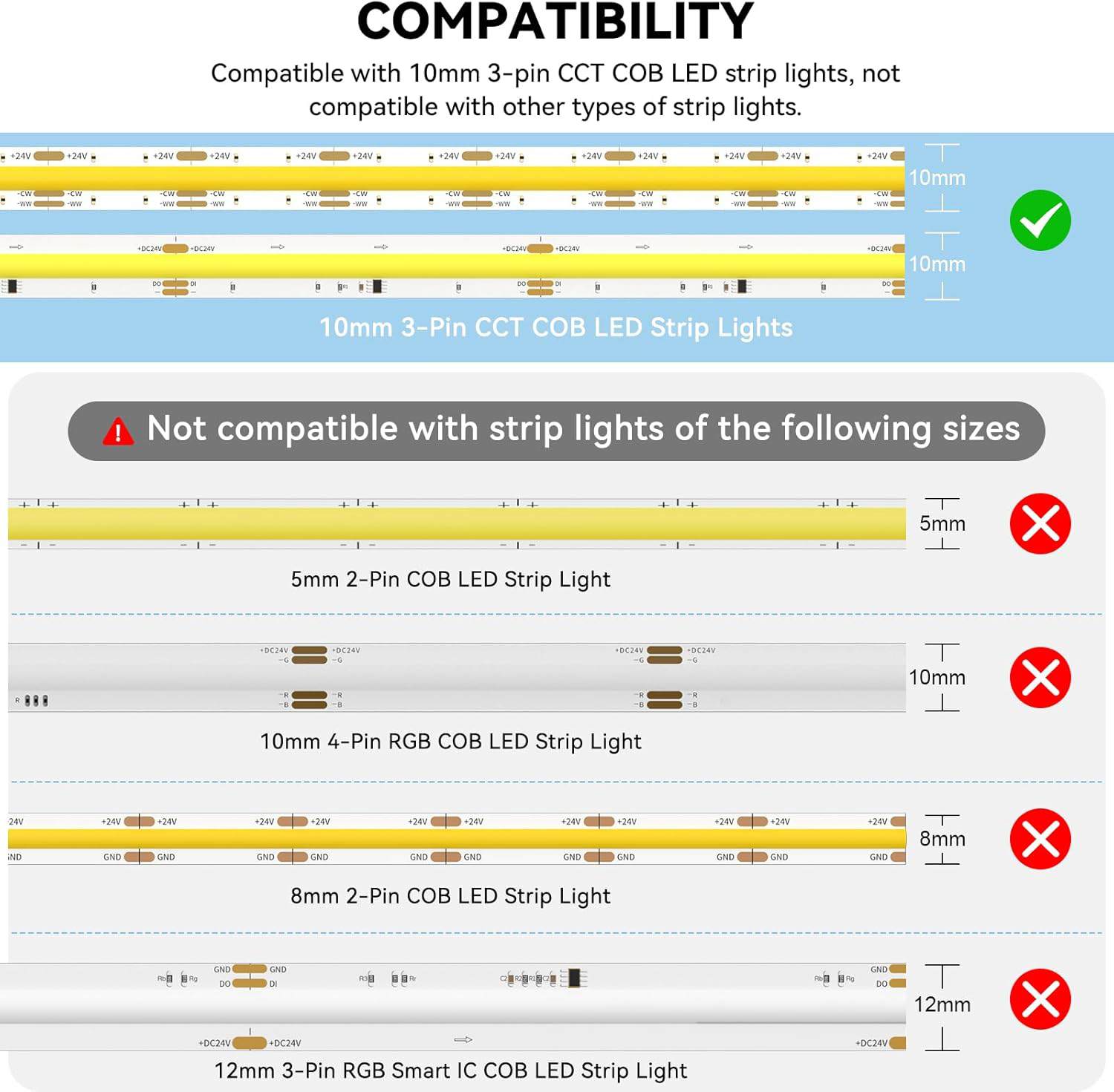

Compatible of 3pin 10mm CCT Adjustable COB LED Strip Connector

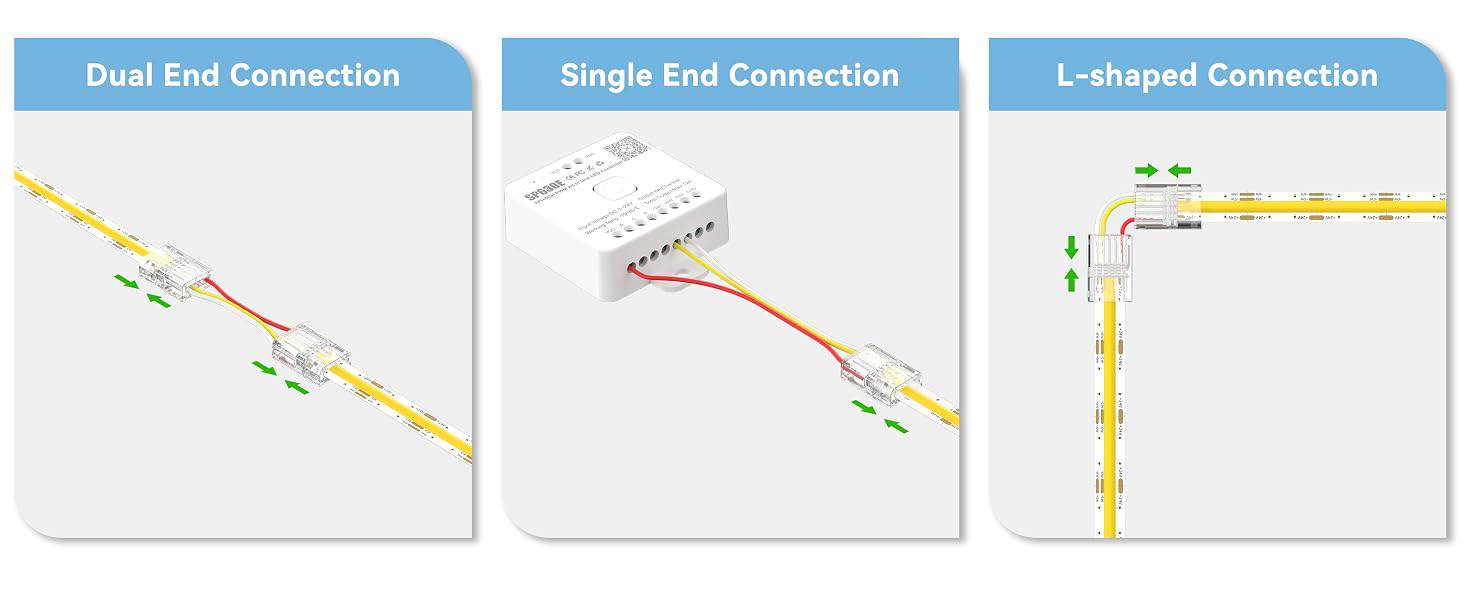

Three Connection Diagrams


three connection of 3pin 10mm CCT Adjustable COB LED Strip Connector

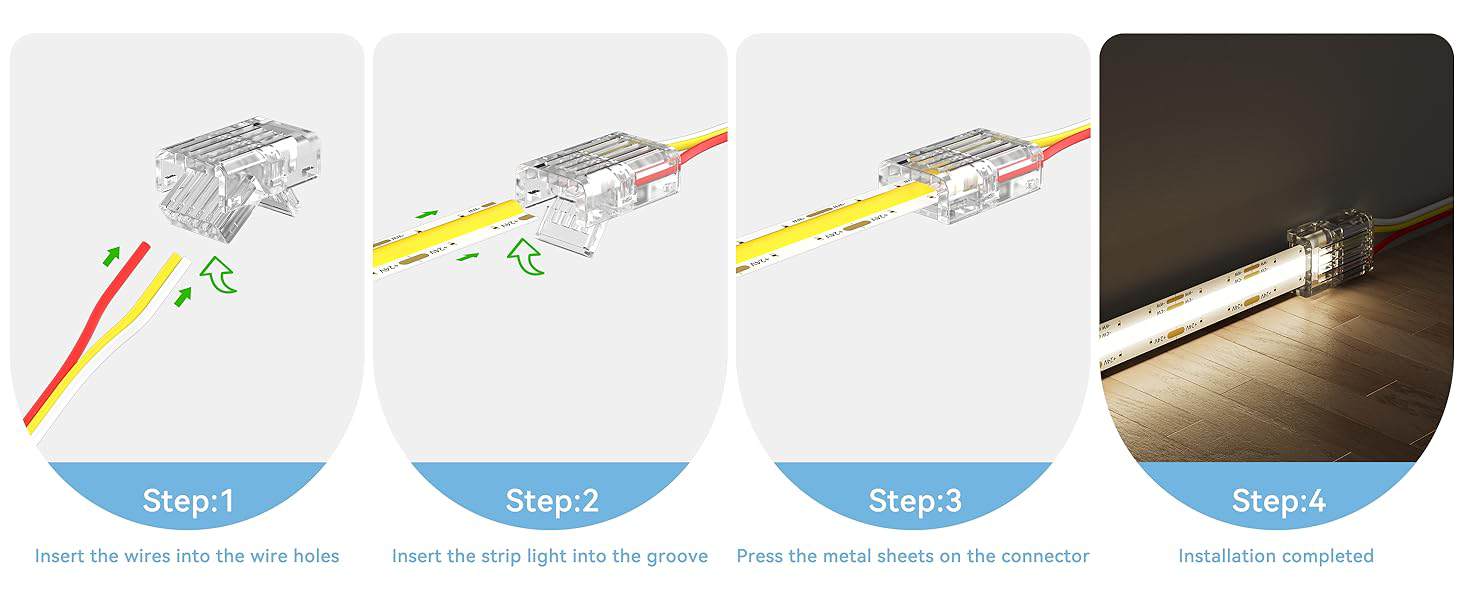

How to install

how to install 3pin 10mm CCT Adjustable COB LED Strip Connector

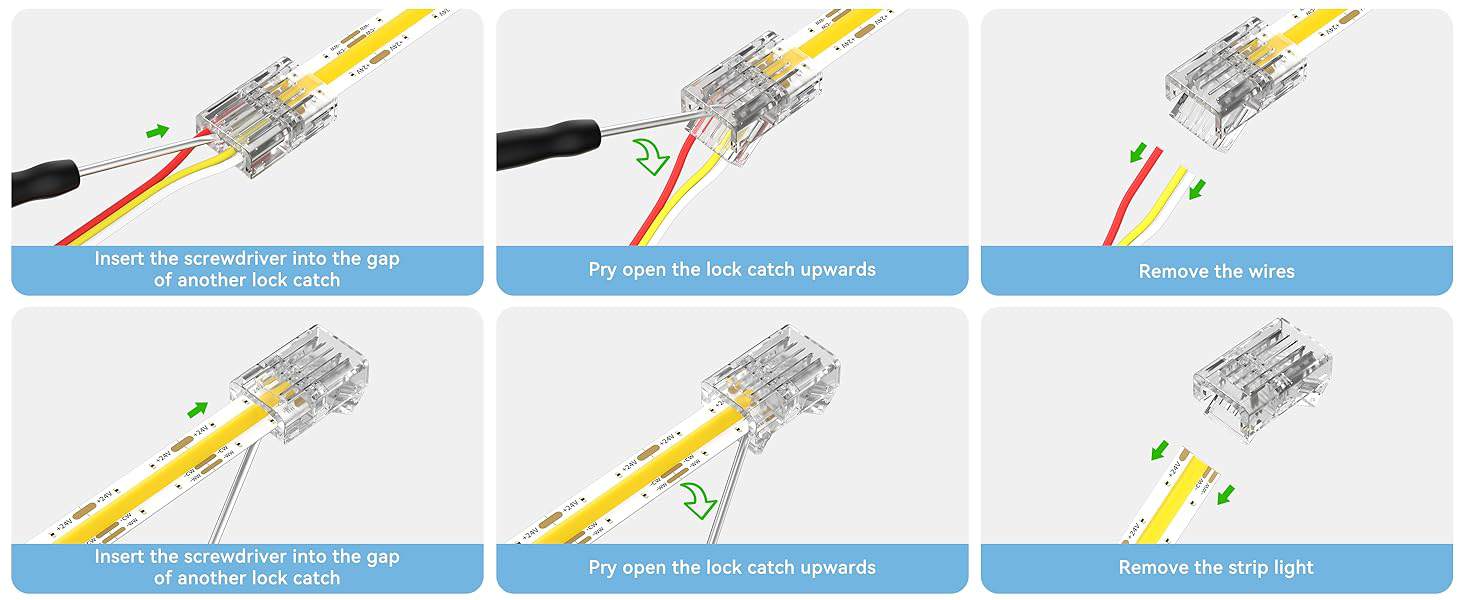

How to remove




how to remove 3pin 10mm CCT Adjustable COB LED Strip Connector

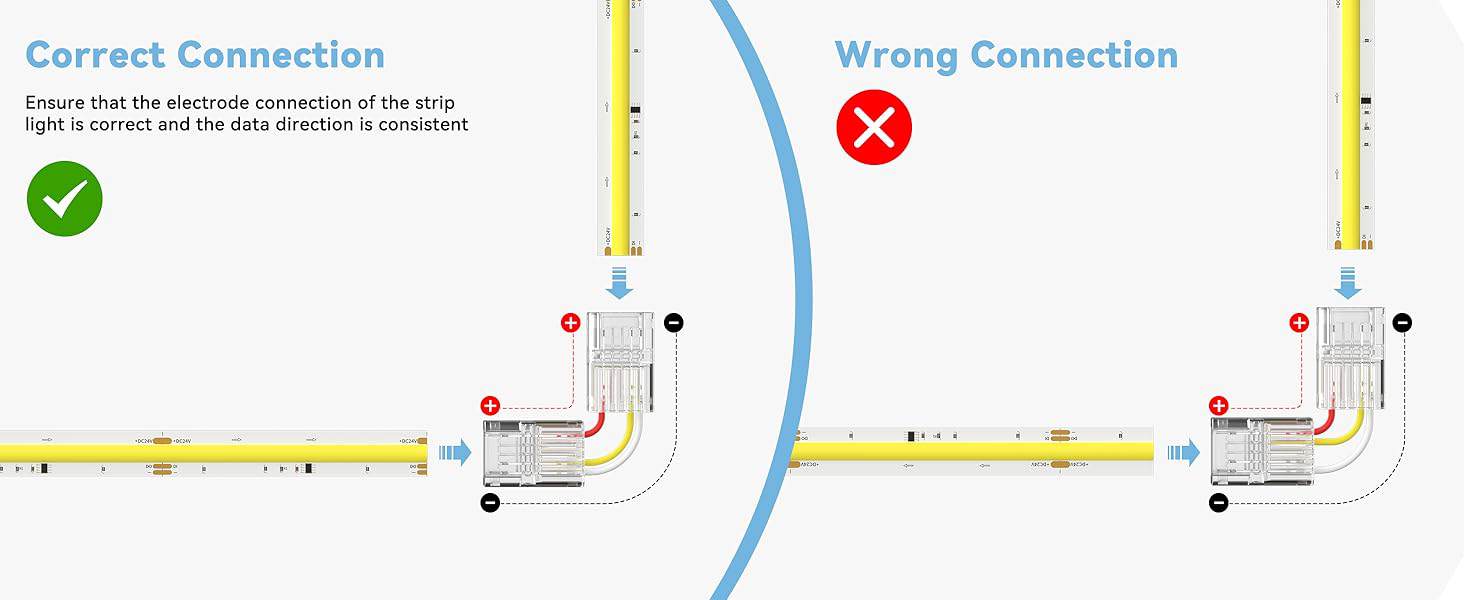

Tips for direction


direction tips of 3pin 10mm CCT Adjustable COB LED Strip Connector

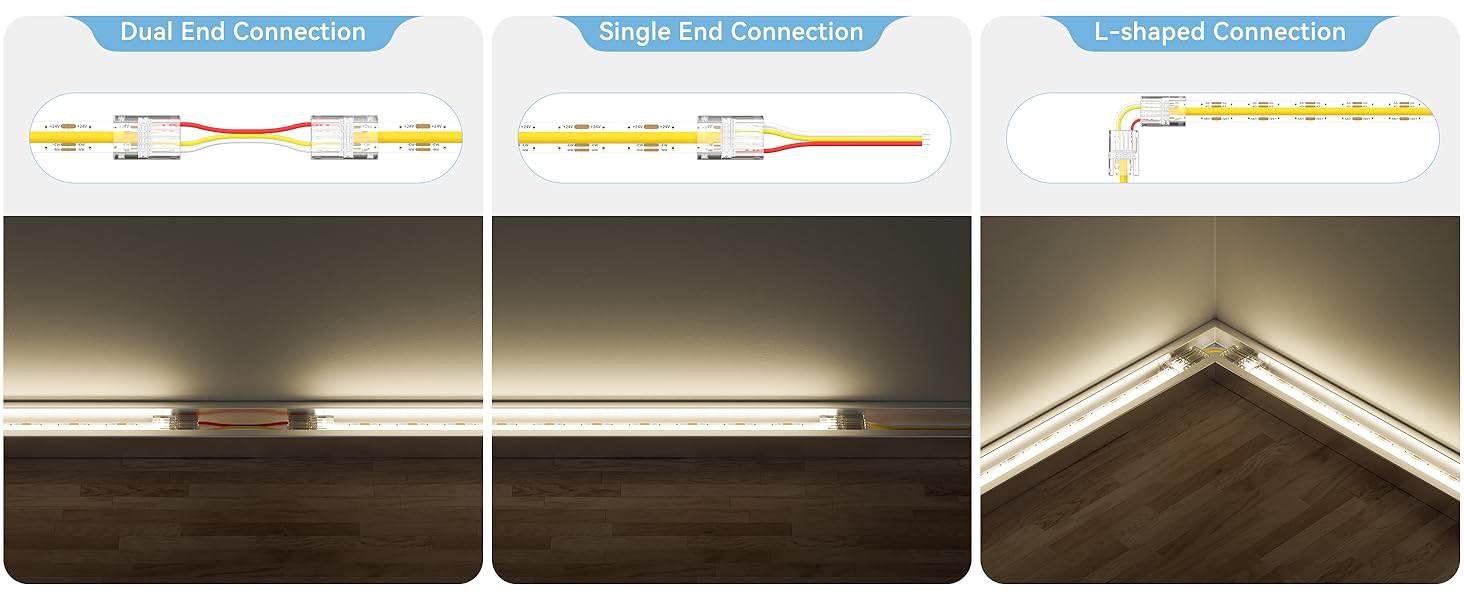

connection way of 3pin 10mm CCT Adjustable COB LED Strip Connector

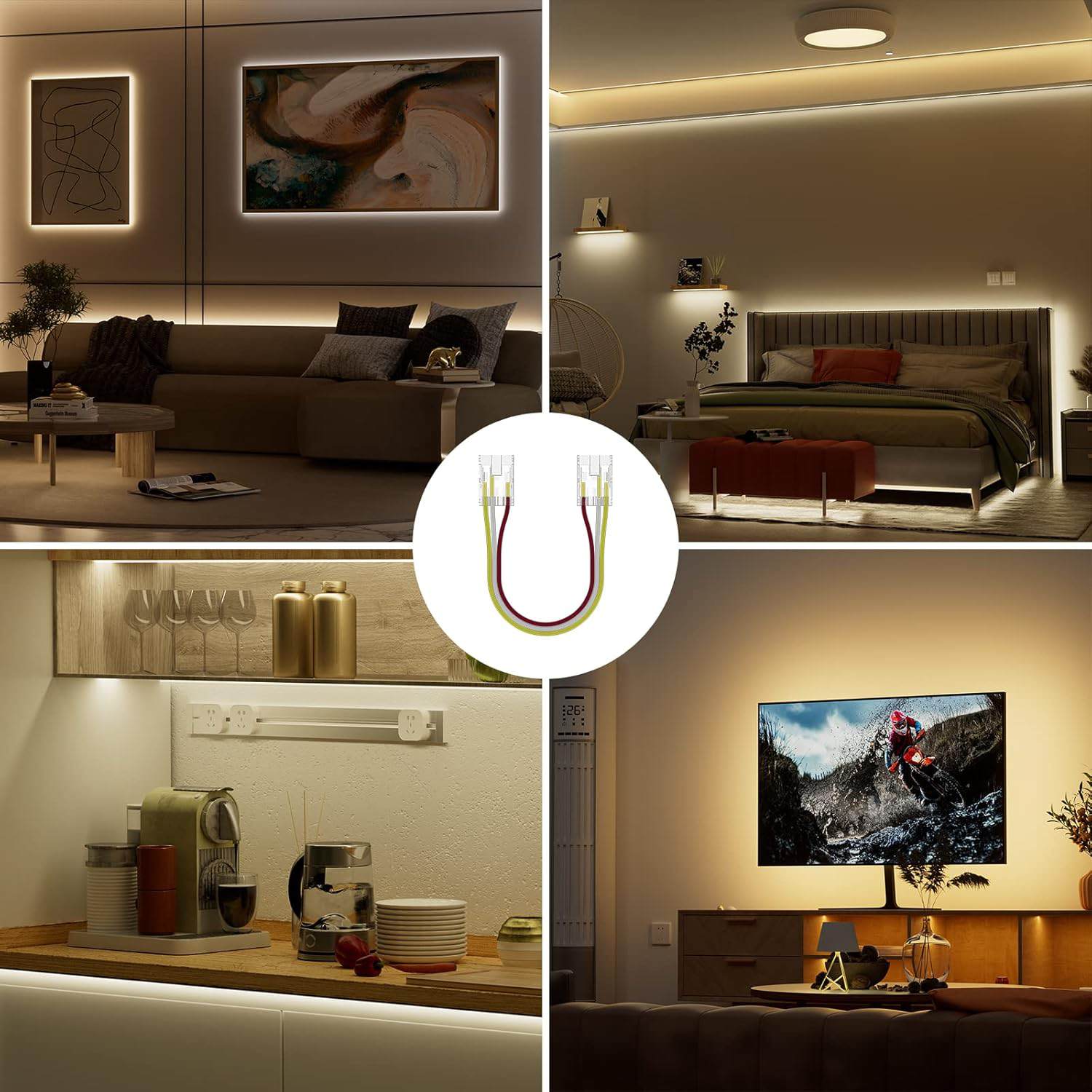

Application


application of 3pin 10mm CCT Adjustable COB LED Strip Connector


How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
