super bright 210lmw led strip
super bright 210lmw led strip
super bright 210lmw led strip
Model No: HR00-B24AW64128

210lm/w 160lm/w 140lm/w super bright led strip light

14.4W/M
Delivery :
FOB
minimum order :
50 meters
Supply Ability :
600000meters / Month
Stock Time :
15Day
Country of Origin :
shenzhen
Quantity :
Download:
Contact Now


Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


ultra thin led strip certificate



Product Details of 210lmw led strip

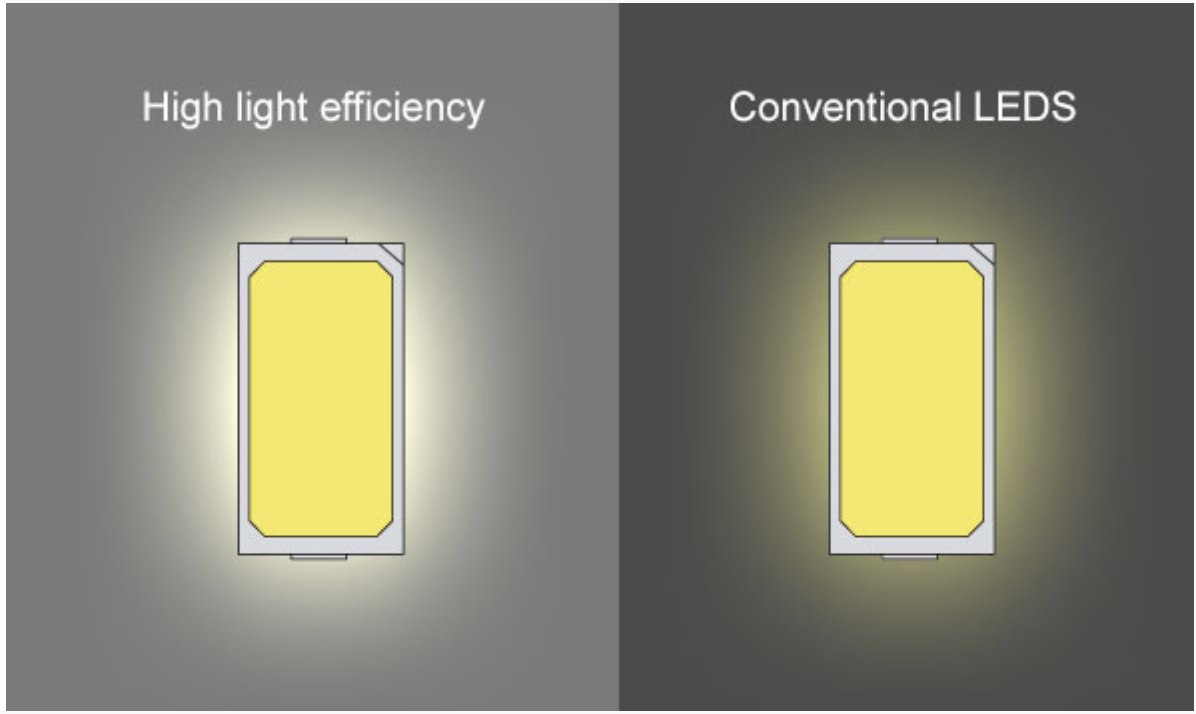

light effect of 210lmw led strip


2). Parameters


Modelled typeled qty
(led/M)		Brightness
(lm/M)		Efficiency
(lm/W)		Power
(W/M)		PCB widthVoltageColor
2835-90283590756lm/m210lm/w3.6w10mm24v2700K
3000K
4000K
5000K
6000K
2835-18028351801512lm/m210lm/w7.2w10mm24v
2835-642835641280lm/m160lm/w8w8/10mm24v
2835-12828351282304lm/m160lm/w14.4w10mm24v
2835-16028351602560lm/m160lm/w16w5/10mm24v
2835-19228351923200lm/m160lm/w20w10mm24v
2835-24028352403840lm/m160lm/w24w10mm24v
2835-702835701120lm/m140lm/w8w10mm24v
2835-140283514020160lm/m140lm/w14.4w5/10mm24v
2835-28028352803920lm/m140lm/w28w20mm24v


Note:
1. Above items is only a few items of our high light efficiency led strip,  please contact Hanron for more detail if you can't find suitable types.
2. The light efficiency is tested based on 4000K.



Why choose our high efficiency 210lmw led strip?


High power 2835 SMD
Super bright 2835 led, 28-32lm per led
99.99% gold wire to make sure long life time 50000hrs, LM80 certificate approved

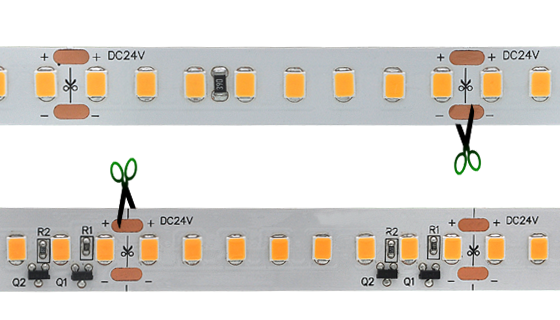

segmento cortable
9leds cortables, entregando ultraluminoso hasta
210lm/W
8 ledes cortables, brindando ultraluminosidad de hasta
160lm/W
7 ledes cortables, brindando ultraluminosidad de hasta
140lm/W






PCB de cobre grueso
La capa doble o triple de cobre garantiza una buena disipación del calor y una caída de voltaje limitada

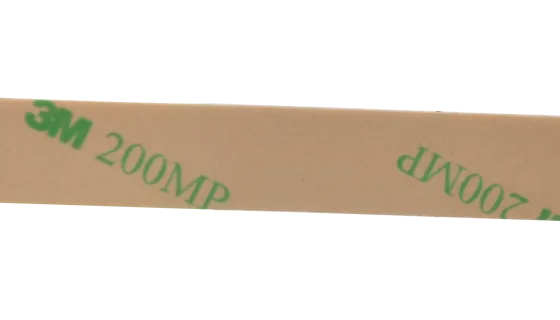

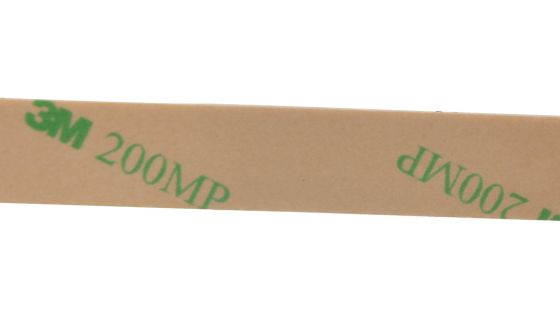

Cinta adhesiva

La cinta adhesiva genuina de 3M garantiza una instalación fuerte, modelo opcional 200MP, 300SLE y VHB
La cinta adhesiva Tesa también está disponible



IP Rating


waterproof version of light effect of 210lmw led strip



Application

application of 210lmw led strip

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.

Hanron Brand Certificate

ETL/CE/RoHS/Reach/CB/BIS/LM80/RCM

ISO9001:2015

ISO9001:2015

ETL

TUV CB

ETL

ETL

ETL

BIS

TER

RCM

LM80 Test

LM80 Test

LM80 Test

CE EMC

CE LVD

CE LVD

CE LVD

CE RoHS

CE Reach

CE Reach

IP66 Report

UKCA

IP68 Report

IP68 Report

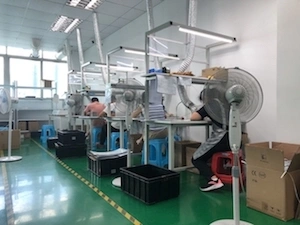

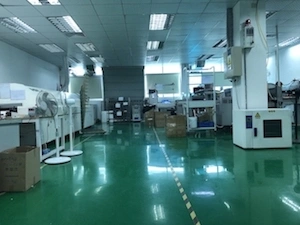

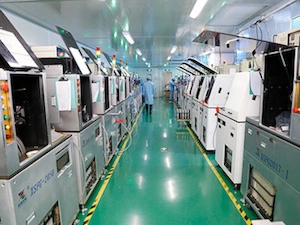

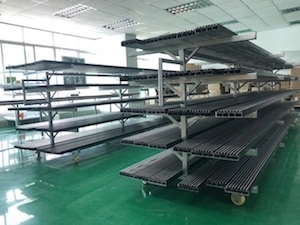

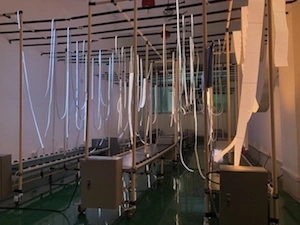

Factory Tour

100+ Employees to support your orders

Need an Instant Quote For Your Upcoming Projects?

Send us the details and we will get back to you within 12 hours.
