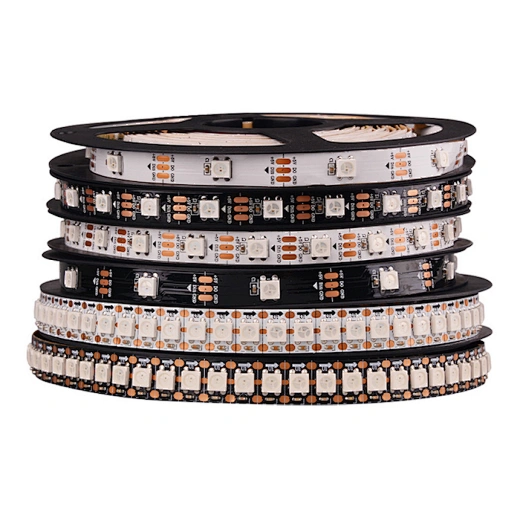

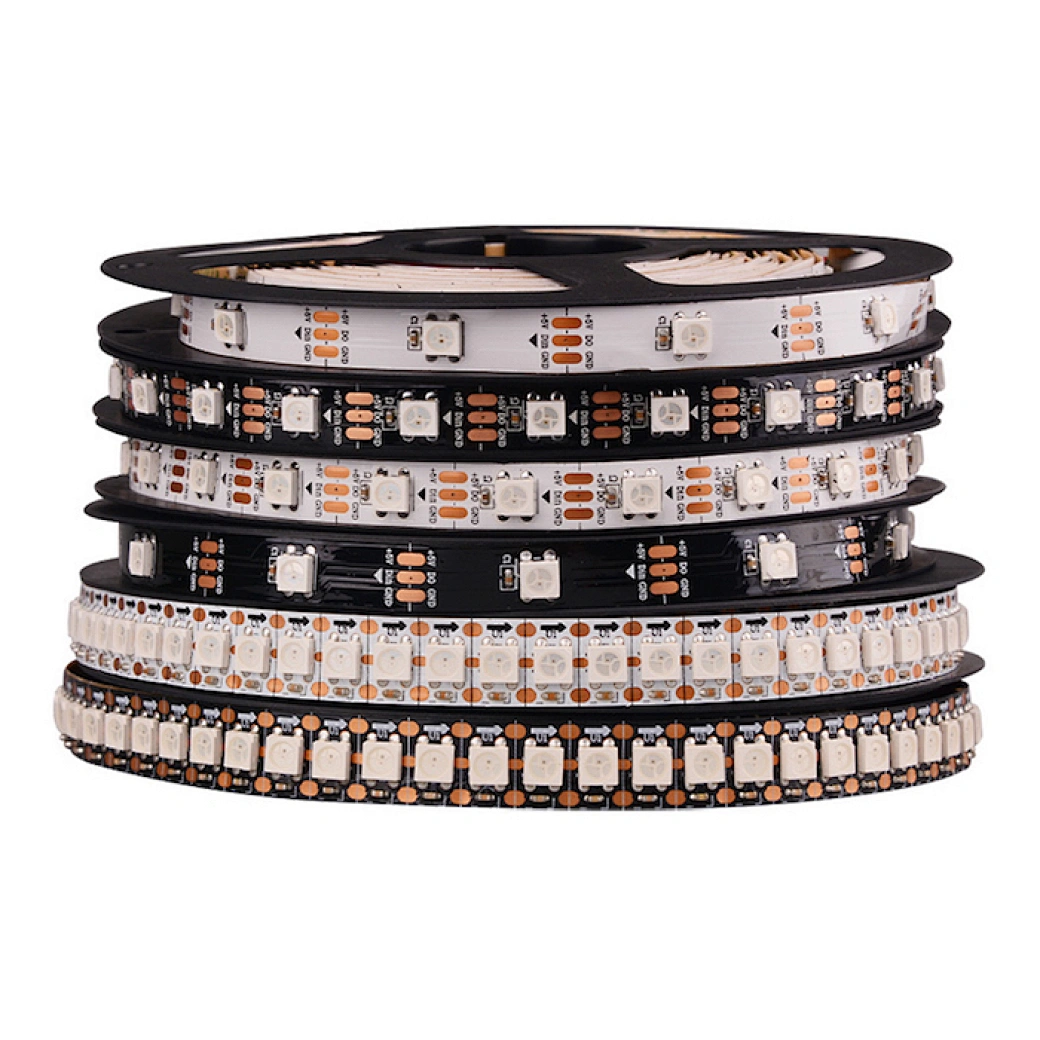

Individually addressable 5V WS2812B 30leds/M 60leds/M 144leds/M rgb ws2812b Led Strip

Best manufacturer & supplier of China Individually addressable 5V 30 60 144 rgb ws2812b led strip light from Hanron Lighting.

Delivery :

FOB Shenzhen

minimum order :

20 meters

Supply Ability :

600000meters / Month

Stock Time :

7Day

Country of Origin :

shenzhen

Quantity :

Download:

Contact Now

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.

DMX512 UCS512C4 UCS512C3 DC 24V 5050 48leds/M DMX rgb UCS512 addressable pixel led strip light for outdoor landscape

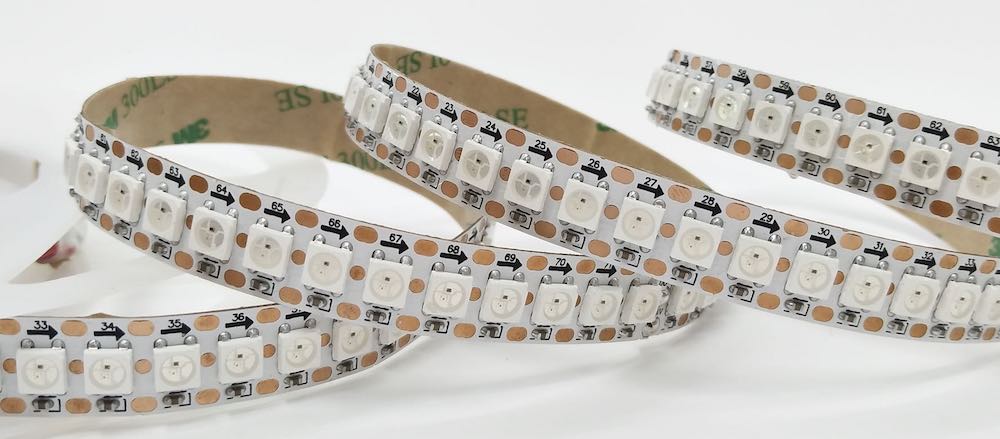

Feature of 144 rgb ws2812b led strip

Individually addressable rgb ws2812b led strip

1. Individual addressable RGB function, more abundant in color control
2. Original WS2812B RGB 5V IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
5. Strong flexible for heat dissipation and real 3M tape for a strong installation

Specification

Item	Specification	Item	Specification
Item Name	144 rgb ws2812b led strip	Light Source	5050 RGB
IC Type	WS2812B	IC QTY	30-144pixels/M
LED QTY	30led/60led/96led/144leds	IC Location	Internal IC
Power	7.2W/14.4W/23W/34.5W	Voltage	DC5V
Cutting Unit	33.3/66.7/10.4/6.94mm	Color	RGB
PCB color	Black/White/Yellow	Angle	120 degrees
IP Rating	IP20/65/66/68	Package	Anti-Static Bag
Working Temp.	-20 to 45 Degree	OEM&ODM	Available
Dimension	5000mm*10/12mm	Lifetime	50000hrs
Certificate	ETL, CE, RoHS, Reach...	Warranty	2years

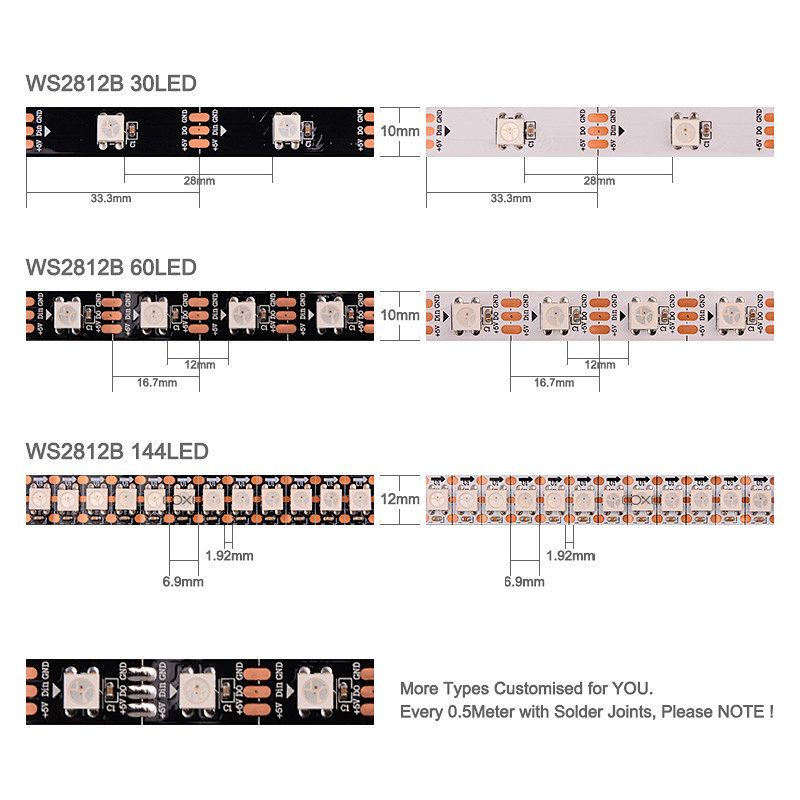

Dimension

Application of 144 rgb ws2812b led strip

Customized Your Specific Pixel Led Light
10 Professional engineers are here to serve you

Looking to light an irregular space or a super creative project? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.

We can easily translate your lighting needs and provide customized lighting solutions. We have the ability to recommend you suitable pixel led strip, controller and software for the whole project, and give you suggestions during your installation.

At the same time, our experts can provide you with full PCB design support and create LED strips that are just the right pixel IC, color, size, shape, and brightness.

You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!

Contact a Project Designer →

Hanron Company Profile
100+ employees to support your orders

Top Pixel LED Strip Light Manufacturer in China

Hanron is a top developer, designer, supplier and manufacturer of high quality addressable led strip lights and led neon lights.

Founded in 2010, Hanron has cultivated a group of talent of 100+ people, including 10 technical engineers and 20 sales engineers. Our company has passed the ISO9001: 2015 quality management system and most of our products are compliant with certifications like ETL, BIS, CE, RoHS, Reach, TUV CB, LM80, etc.

After years of development, we have 500+ types of addressable led strip lights for your reference. According to customers' design documents or application scenarios, we can also provide professional advice and OEM&ODM services.
