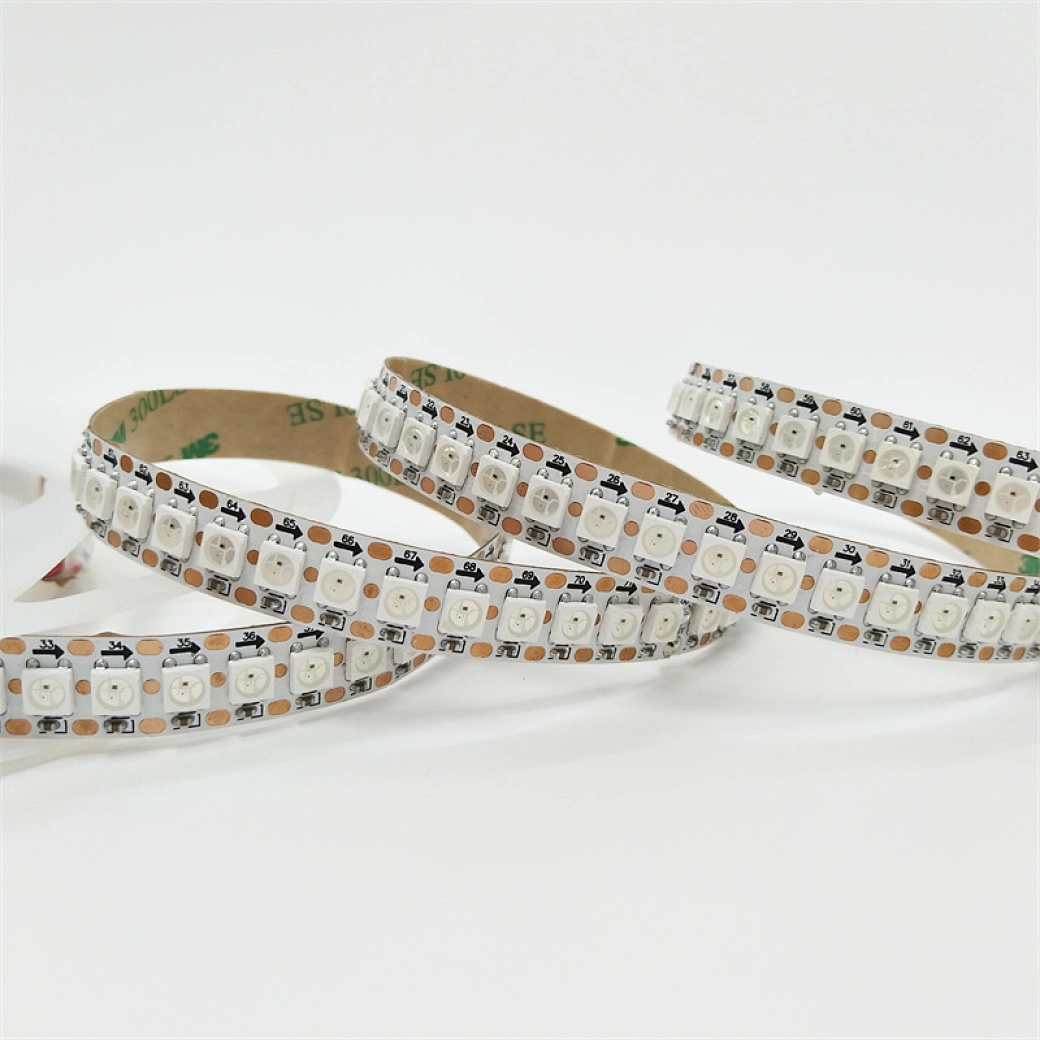

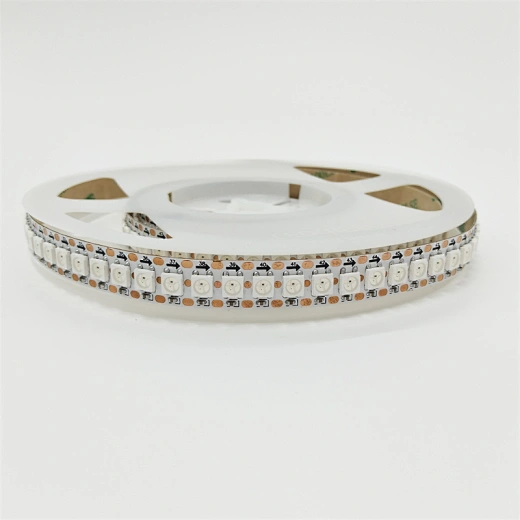

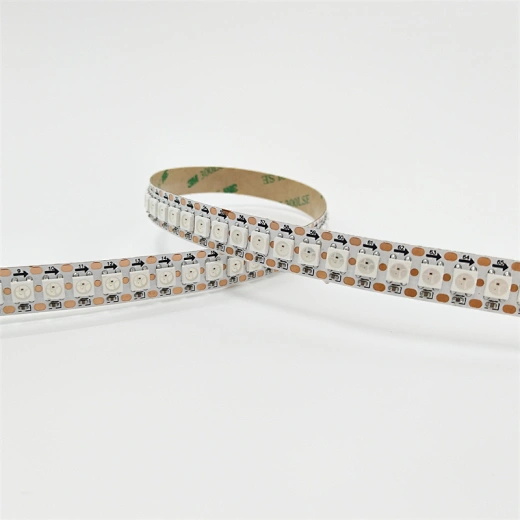

WS2812B/SK6812 RGB 144leds/m Led strip
Feature
WS2812B/ sk6812B digital led strip ws2812b
1. One of the most popular pixel led strip in the market
2. Original WS2812B or SK6812B IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC5V design with 1led/cut, individually addressable, more flexible in software control
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
Specification
Item | Specification | Item | Specification |
Item Name | WS2812B rgb led strip | Light Source | 5050 RGB |
IC Type | WS2812B/SK6812 | IC QTY | 144pixels/M |
LED QTY | 144leds/M | IC Location | Internal IC |
Color | RGB Dream Color | Voltage | DC5V |
Working T | -20 to 45 Degree | Power | 28.8W/M |
PCB color | Black/White/Yellow | Angle | 120 degrees |
IP Rating | IP20/65/66/68 | Cutting Unit | 6.94mm |
Package | Anti-Static Bag | OEM&ODM | Available |

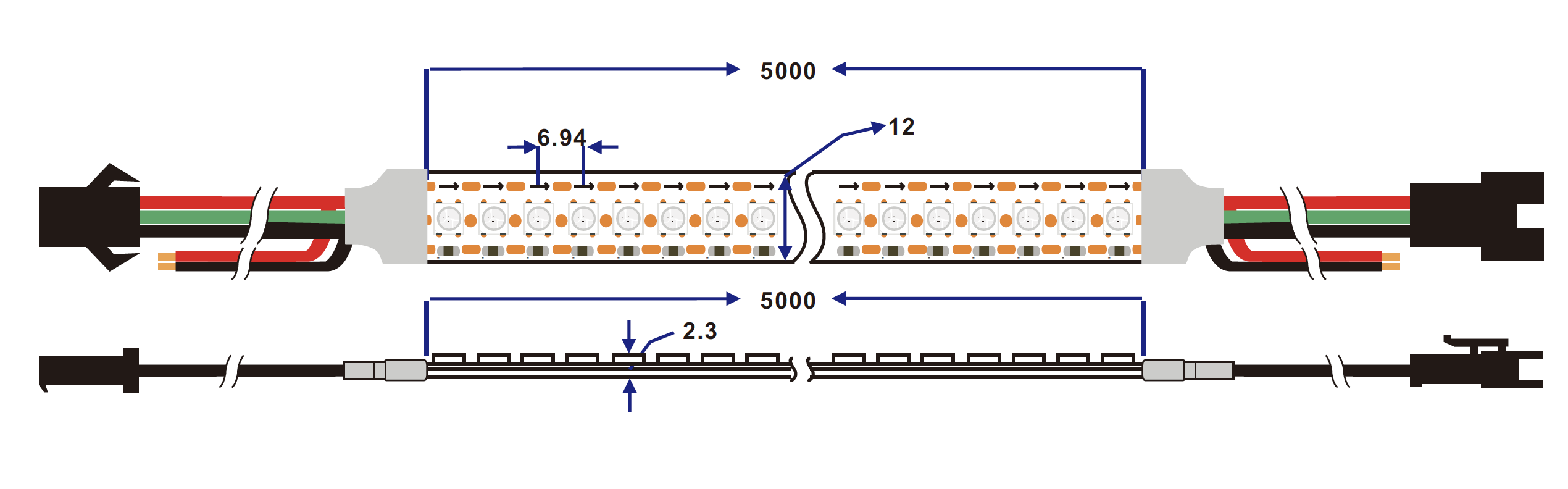

Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach... | Warranty | 3 years |
Connection
IP Rating
Customized Your Specific Pixel Led Light
10 Professional engineers are here to serve you
Looking to light an irregular space or a super creative project? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.
We can easily translate your lighting needs and provide customized lighting solutions. We have the ability to recommend you suitable pixel led strip, controller and software for the whole project, and give you suggestions during your installation.
At the same time, our experts can provide you with full PCB design support and create LED strips that are just the right pixel IC, color, size, shape, and brightness.
You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!
How to customized LED strip light?
10 Professional engineers are here to serve you
LED Brand & Brightness
Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.
CRI & CCT & Color
CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.
LED QTY & Rows
The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.
Print Logo
It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.
IP Rating
Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.
Voltage & Power
Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.
LED Strip & Cable Length
It''s OK to customized the length of the led strip, also the length of the cable for the led strip.
PCB Color
Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
Hanron Brand Certificate
ETL/CE/RoHS/Reach/CB/BIS/LM80/RCM
ISO9001:2015
TUV CB
ETL
BIS
RCM
LM80 Test
CE EMC
CE LVD
CE RoHS
CE Reach
UKCA
IP68 Report
