120 LEDs/m SK6812 4020 Side View RGB LED Strip | High Density
120 LEDs/m SK6812 4020 Side View RGB LED Strip | High Density
120 LEDs/m SK6812 4020 Side View RGB LED Strip | High Density
120 LEDs/m SK6812 4020 Side View RGB LED Strip | High Density
Model No: HR00-sk68124020-120-rgbP10

SK6812 4020 sideview 5V 120leds/M rgb led strip

DC5V, 24W/M, 120pixels/M
Delivery :
EXW
minimum order :
30 meters
Supply Ability :
600000meters / Month
Stock Time :
7-12Day
Country of Origin :
Shenzhen
Quantity :
Download:
Sideview SK6812 120LED 24W LED strip specification.pdf
Contact Now

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


pixel sideview led strip certificate


Feature of pixel sideview led strip

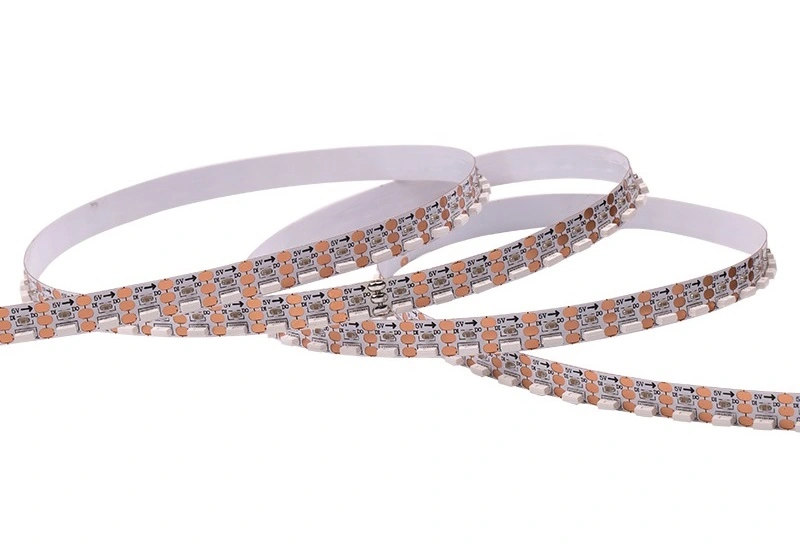

sk6812 4020 led strip
For SK6812 4020 pixel sideview led strip

1, Original SK6812 4020 led, more stable in quality and higher brightness
2. DC5V design with 1led/cut, individually addressable, more flexible in software control
3. Pixel rgb sideview function, can be used in special applications like cars, LED curtains, etc.
4. The gray levels of each pixel of 256 levels, and the refresh frequency reaches 2KHz/s
5. Strong flexible for heat dissipation and real 3M tape for a strong installation


Specification


ItemSpecificationItemSpecification
Item Namepixel sideview led stripLight Source4020 RGB
IC TypeSK6812IC QTY120pixels/M
LED QTY120leds/MIC LocationInternal IC
ColorRGB Dream ColorVoltageDC5V
Working T-20 to 45 DegreePower24W/M
PCB colorBlack/WhiteAngle120 degrees
IP RatingIP20/65/66/68Cutting Unit5cm
PackageAnti-Static BagOEM&ODMAvailable
Dimension5000mm*8mmLifetime50000hrs
CertificateETL, CE, RoHS, Reach...Warranty3years

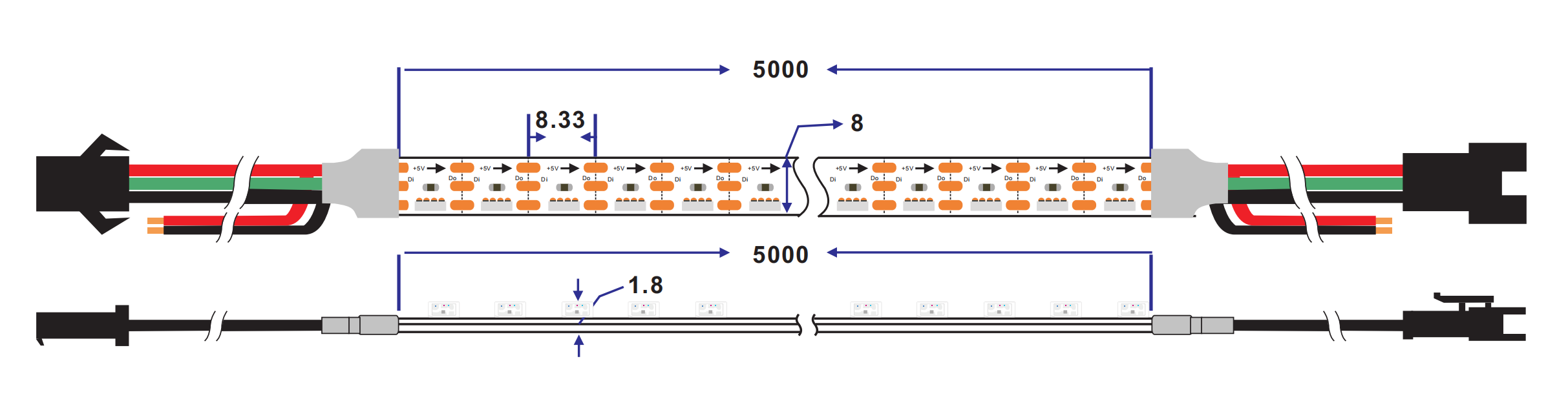

Dimension: mm





 Connection




IP Rating

Waterproof Version of 2216 288LED/M led strip

Specification of waterproof 2216 288LED/M led strip




Application of pixel sideview led strip



Application of pixel sideview led strip

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
