Model No: HR11-B243012024

Top bend 1414 led neon light

DC24V, 14W/M, IP67
Delivery :
EXW
minimum order :
50 meters
Supply Ability :
600000meters / Month
Stock Time :
12Day
Country of Origin :
Shenzhen China
Quantity :
Download:
1414 top bend LED neon flex specification.pdf
Contact Now

Feature of top bend 1414 led neon light
Certificate of Top bend 1414 led neon light

※Light Source: high luminous efficiency, SMD2835,3535, 5050, etc, Lm80 test proved
※Material: High light transmittance, food-grade environmental silicone material
※Optical Design: Unique optical light distribution structure design, uniform lighting surface and no shadow
※Appearance Design: Compared with the traditional neon tube or PVC guardrail tube, the silicone
material has good flexibility, a simple and stylish appearance, which is exquisite and unique.
※Environmental features: Resistance to saline solutions, acids&alkali, corrosive gases and uv
※Working Temperature: Ta: -20～45℃
※Life Span: 30000H, 3years warranty
※Product certification: ETL, CE, RoHS


Dimension(mm)

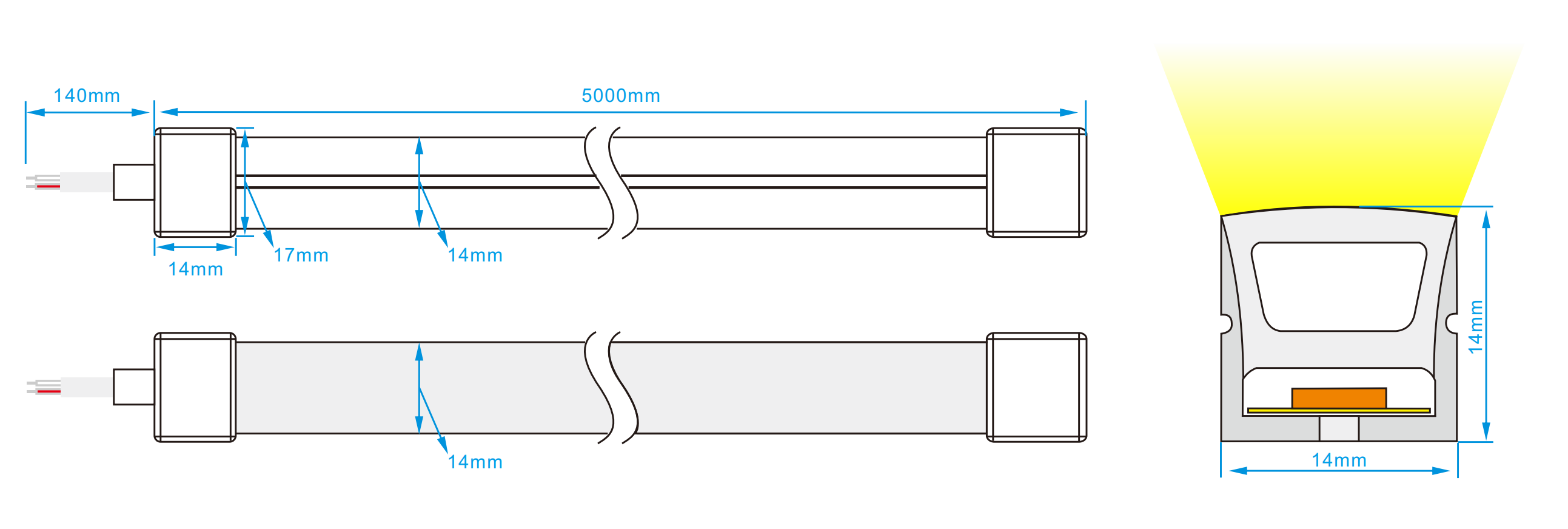

Dimension of top bend 1414 led neon light


Specification

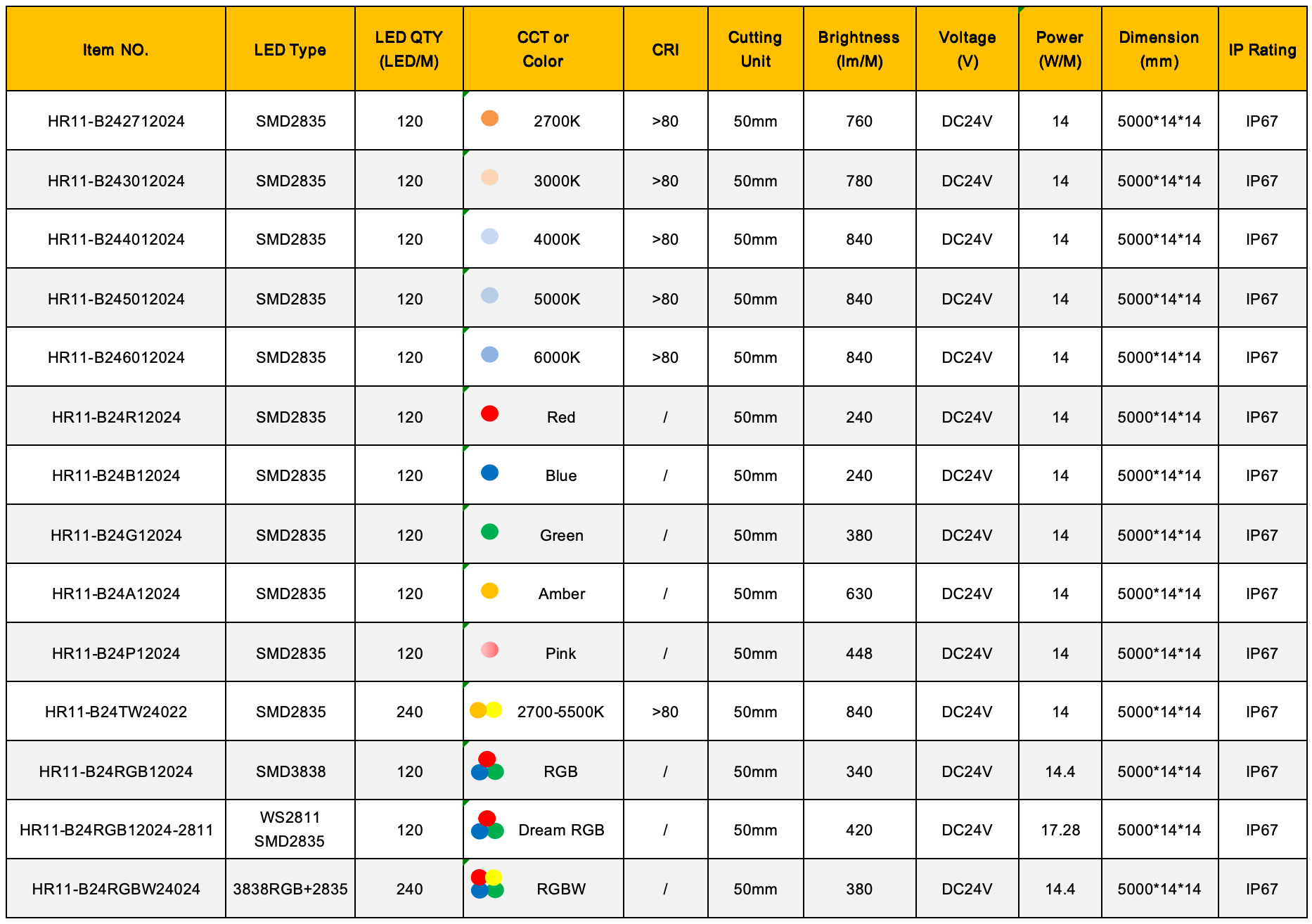

Specification of top bend 1414 led neon light


Accessories

Accessories of top bend 1414 led neon light



Applications of top bend 1414 led neon light
Applications of top bend 1414 led neon light





Black led neon light series

black led neon flex





Top bend series

top bend led neon flex




Side bend series

side bend led neon flex




Round & half-round neon flex series

Round & half-round led neon flex



Customized Your Specific LED Neon Flex
10 Professional engineers are here to serve you
Application of led neon light

Looking to light an irregular space or a super creative project? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.

We can easily translate your lighting needs and provide customized lighting solutions. We have the ability to recommend you suitable LED neon light, controller and software for the whole project, and give you suggestions during your installation.

At the same time, our experts can provide you with full PCB design support and create LED neon flex light that are just the right pixel IC, color, size, shape, and brightness.

You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!

 ​​

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
