UCS2904B RGBW 24V 60leds/M Led Strip
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

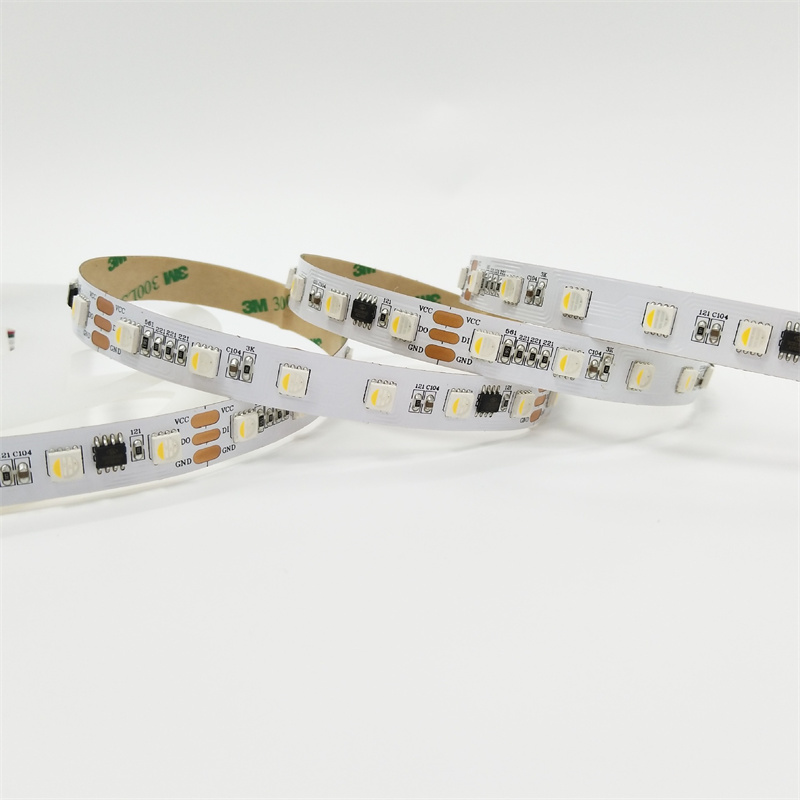

Feature of UCS2904B led strip
pixel rgbw UCS2904B led strip
1. With the original UCS2904B IC, not from a small company, more stable in quality
2. 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC24V design with 6led/group, allow longer connection during the installation
5. Epistar chip high brightness 4in1 led, white color can be customized
6. Strong flexible for heat dissipation and real 3M tape for a strong installation
Specification
| Item | Specification | Item | Specification |
| Item Name | UCS2904B led strip | Light Source | 5050 rgbw 4in1 |
| IC Type | ucs2904b | IC QTY | 10pixels/M |
| LED QTY | 60leds/M | IC Location | External IC |
| Color | RGBW Dream Color | Voltage | DC24V |
| Working T | -20 to 45 Degree | Power | 19.2W/M |
| PCB color | Black/White/Yellow | Angle | 120 degrees |
| IP Rating | IP20/65/66/68 | Cutting Unit | 10cm |
| Package | Anti-Static Bag | OEM&ODM | Available |
| Dimension | 5000mm*12mm | Lifetime | 50000hrs |
| Certificate | ETL, CE, RoHS, Reach... | Warranty | 3 years |

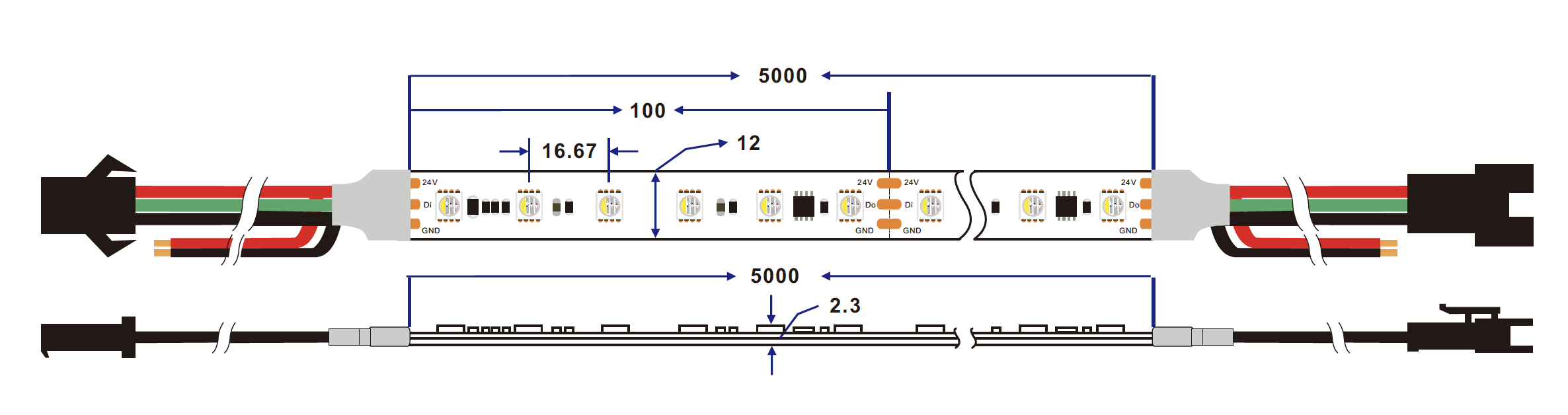

Dimension (mm)
Connection
IP Rating
Application of UCS2904B led strip
How to customized LED strip light?
10 Professional engineers are here to serve you
LED Brand & Brightness
Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.
CRI & CCT & Color
CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.
LED QTY & Rows
The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.
Print Logo
It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.
IP Rating
Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.
Voltage & Power
Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.
LED Strip & Cable Length
It''s OK to customized the length of the led strip, also the length of the cable for the led strip.
PCB Color
Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
