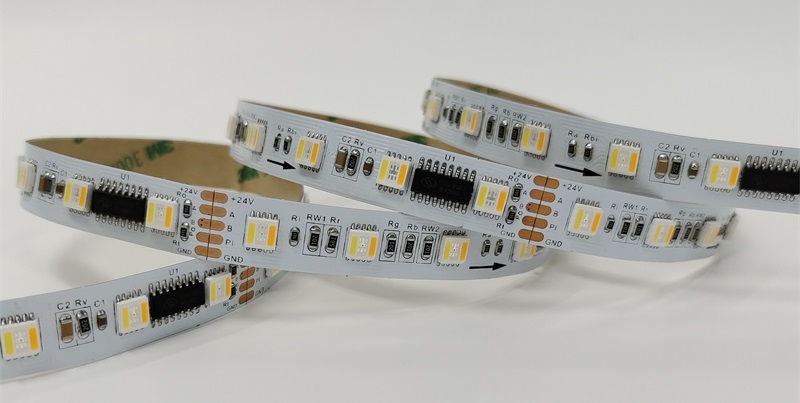

UCS512G6 5050 5in1 RGBWW 24V 60led/m led strip
Feature of ucs512g6 rgbww dmx led strip light
ucs512g6 rgbww dmx led strip light
2. No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage do not affect other parts of the strips and continue work, etc.
3. DC24V design to allow a longer connection, more convenient during installation
4. It can work with Madrix and some DMX controllers to programmer
Specification
Item | Specification | Item | Specification |
Item Name | ucs512g6 rgbww dmx led strip light | Light Source | 5050 RGBWW 5in1 |
IC Type | UCS512G6 | IC QTY | 10pixels/M |
LED QTY | 60leds/M | IC Location | external IC |
Color | WW-RGB-CW | Voltage | DC24V |
Working T | -20 to 45 Degree | Power | 23W/M |
PCB color | Black/White/Yellow | Angle | 120 degrees |
IP Rating | IP20/65/66/68 | Cutting Unit | 100mm |
Package | Anti-Static Bag | OEM&ODM | Available |

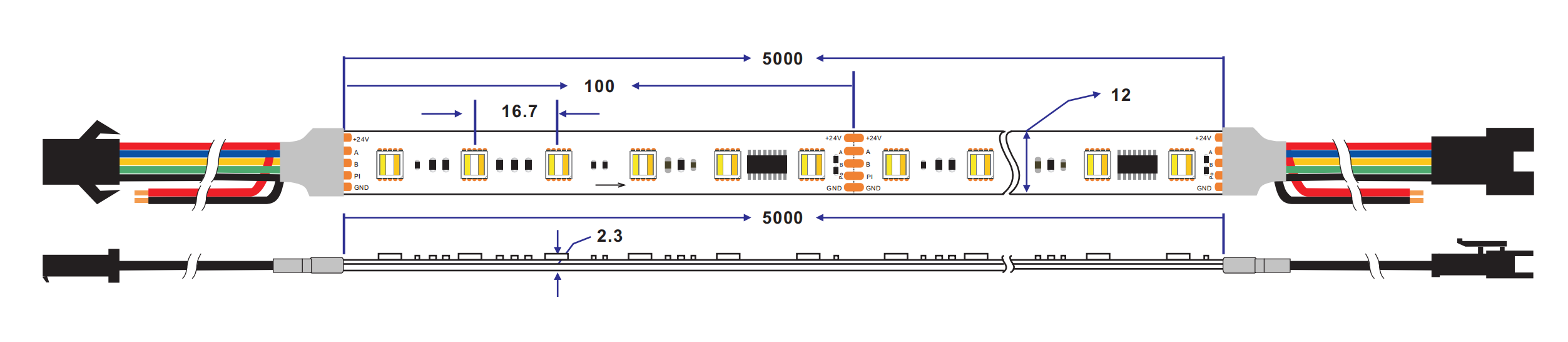

Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach, etc. | Warranty | 3 years |
Connection
IP Rating
How to customized LED strip light?
10 Professional engineers are here to serve you
LED Brand & Brightness
Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.
CRI & CCT & Color
CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.
LED QTY & Rows
The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.
Print Logo
It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.
IP Rating
Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.
Voltage & Power
Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.
LED Strip & Cable Length
It''s OK to customized the length of the led strip, also the length of the cable for the led strip.
PCB Color
Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
