ws2814a led strip
rgbw pixel led strip
rgbw pixel led strip
Model No: HR00-sm16704-rgbw-60-24

WS2814A/SM16704/TM1814 RGBW 24V 60leds/M Led Strip

DC24V,16W/M, 10pixels/M
Delivery :
EXW
minimum order :
30 meters
Supply Ability :
600000meters / Month
Stock Time :
7-12Day
Country of Origin :
Shenzhen
Quantity :
Download:
WS2814A RGBW 60LED 16W 10mm LED strip specification.pdf
Contact Now
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

ws2814a led strip



Feature of ws2814a led strip

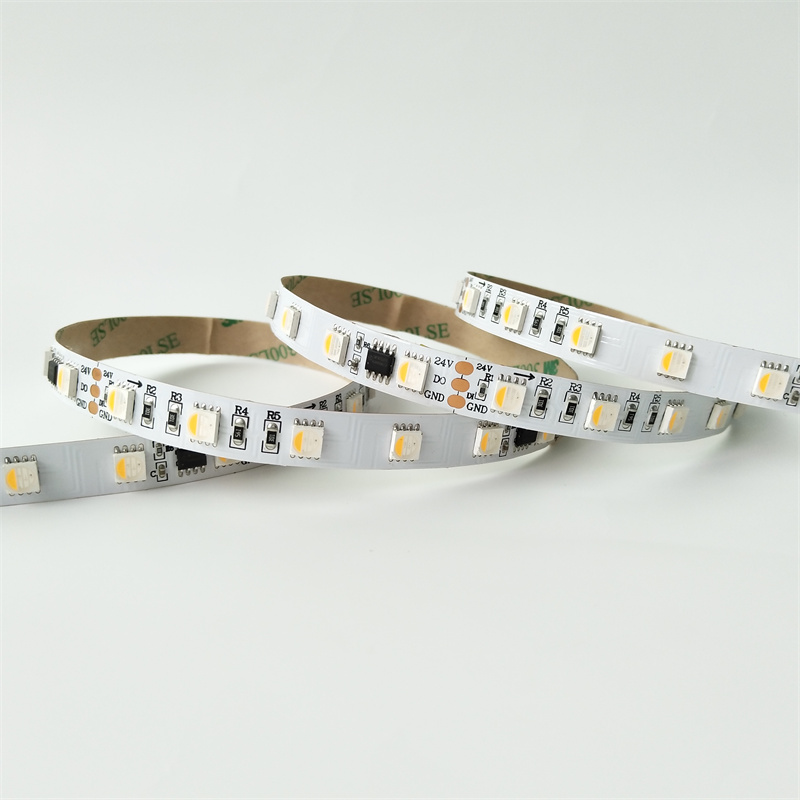

ws2814a sm16704 tm1814 rgbw pixel led strip light

ws2814a sm16704 tm1814 rgbw pixel led strip light

1.  With original WS2814A/SM16704/TM1814 IC, not from a small company, more stable in quality
2. 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC24V design with 6led/group, allow longer connection during the installation
5. Epistar chip high brightness 4in1 led, white color can be customized
6. Strong flexible for heat dissipation and real 3M tape for a strong installation



Specification

Item
Specification
Item
Specification
Item Name
ws2814a led strip
Light Source
5050 rgbw 4in1
IC Type
WS2814A/SM16704/TM1814
IC QTY
60pixels/M
LED QTY
60leds/M
IC Location
External IC
Color
RGB Dream Color
Voltage
DC24V
Working T
-20 to 45 Degree
Power
16W/M
PCB color
Black/White/Yellow
Angle
120 degrees
IP Rating
IP20/65/66/68
Cutting Unit
10cm
Package
Anti-Static Bag
OEM&ODM
Available
Dimension
5000mm*10mm
Lifetime
50000hrs
Certificate
ETL, CE, RoHS, Reach...
Warranty
3 years

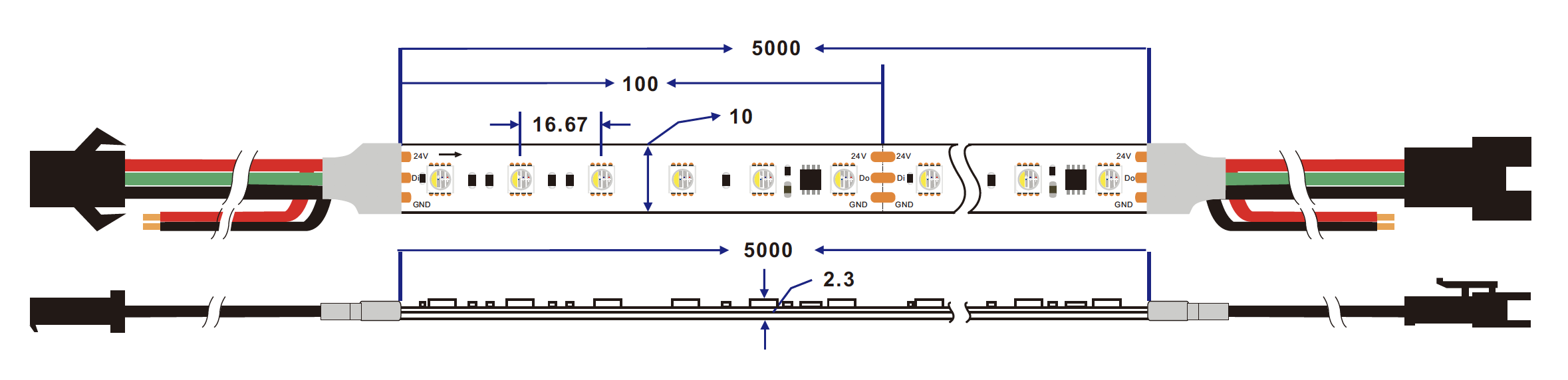

Dimension (mm)

dimension of ws2814a sm16704 tm1814 rgbw pixel led strip light

Connection




IP Rating

Waterproof Version of 2216 288LED/M led strip

Specification of waterproof 2216 288LED/M led strip


Application of ws2814a led strip

ws2814a sm16704 tm1814 rgbw pixel led strip light application

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
