Model No: HR00-B48AW130L50

50m 30m 20m per roll 2835 130LED/M white ultra length led strip

DC48V, Ra80/90/95, 4.8W/M
Delivery :
FOB
minimum order :
200 meters
Supply Ability :
300000meters / Month
Stock Time :
7Day
Country of Origin :
Shenzhen China
Quantity :
Download:
Contact Now

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


certificate of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip



Specification of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

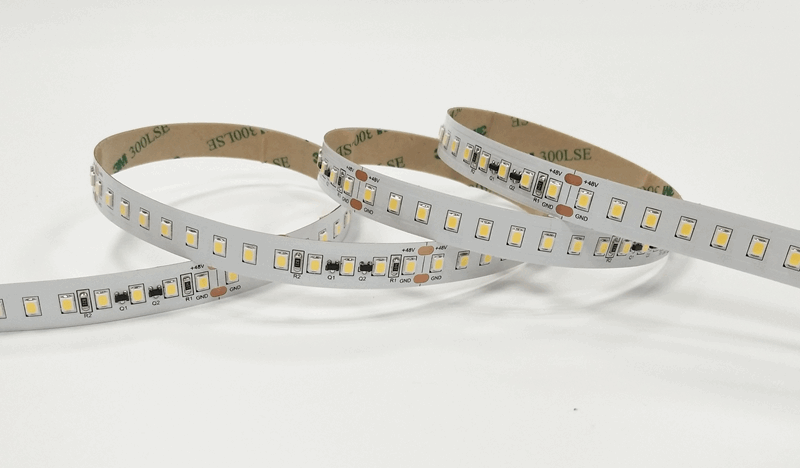

50m 30m 20m per roll 2835 130LED/M white ultra length led strip

Strip Type50m 30m 20m per roll 2835 130LED/M white ultra length led strip
SMD TypeSMD 2835
LED QTY/M130LED/M
VoltageDC48V
ColorWhite
CRI(Ra)90
Cutting Length100mm
Brightness1440LM/M
Dimension20M/30M/50M*12mm*1.4mm
Beam Angle120°
Working TemperatureTa: -20~+45℃
Lifespan50000hrs
Warranty5year

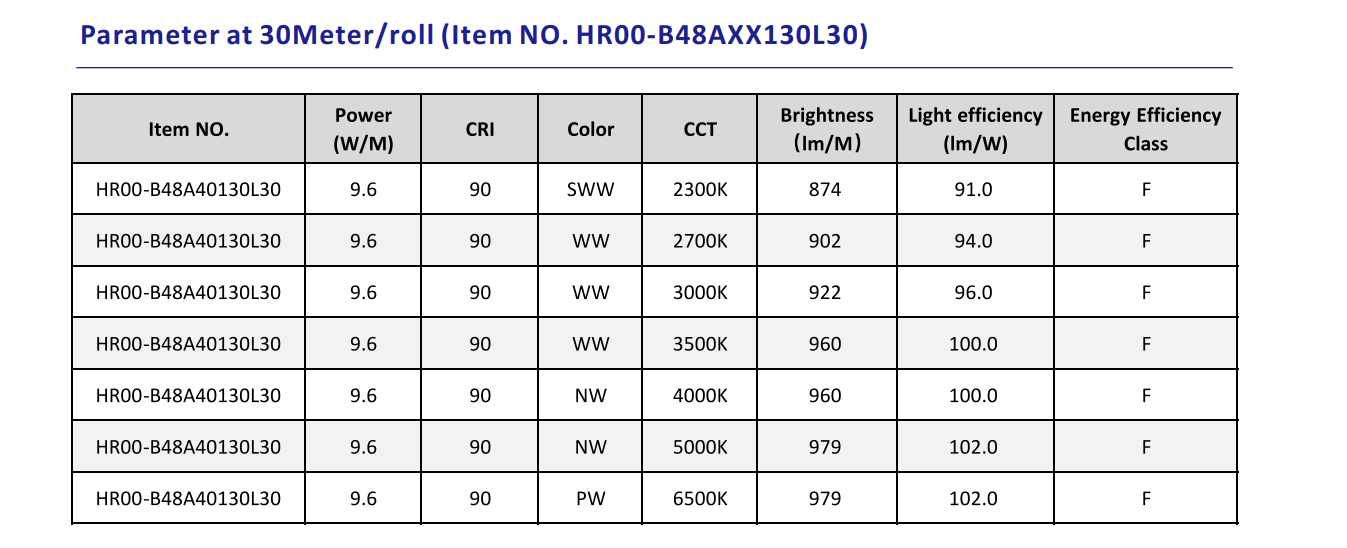

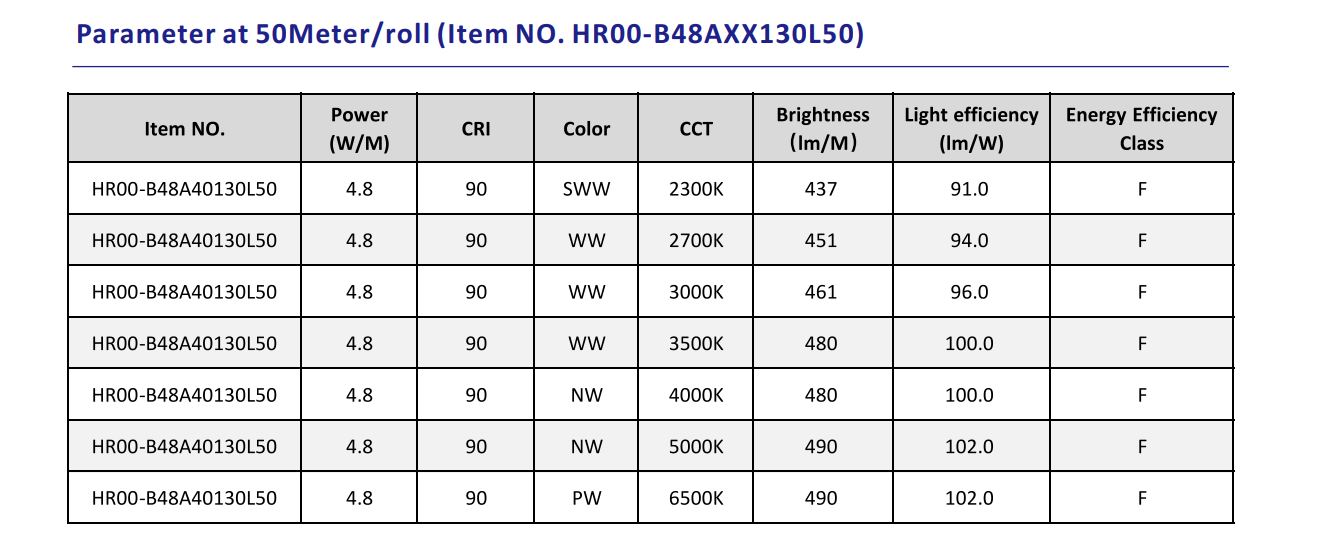

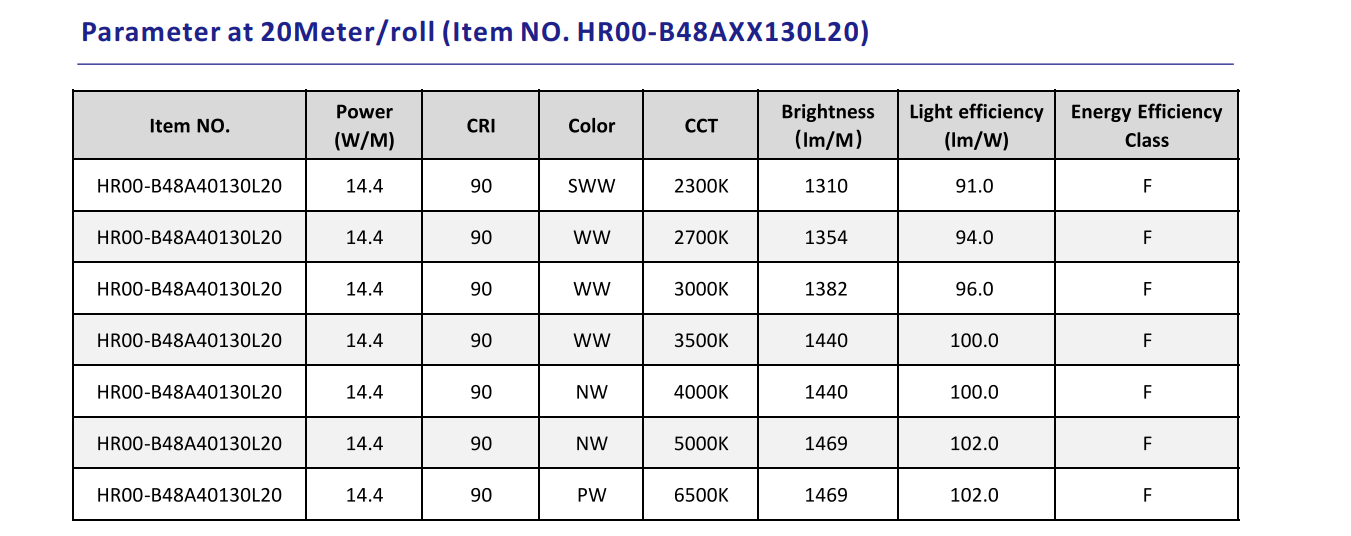

Parameter of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

Parameter of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

Parameter of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

Dimension(mm)

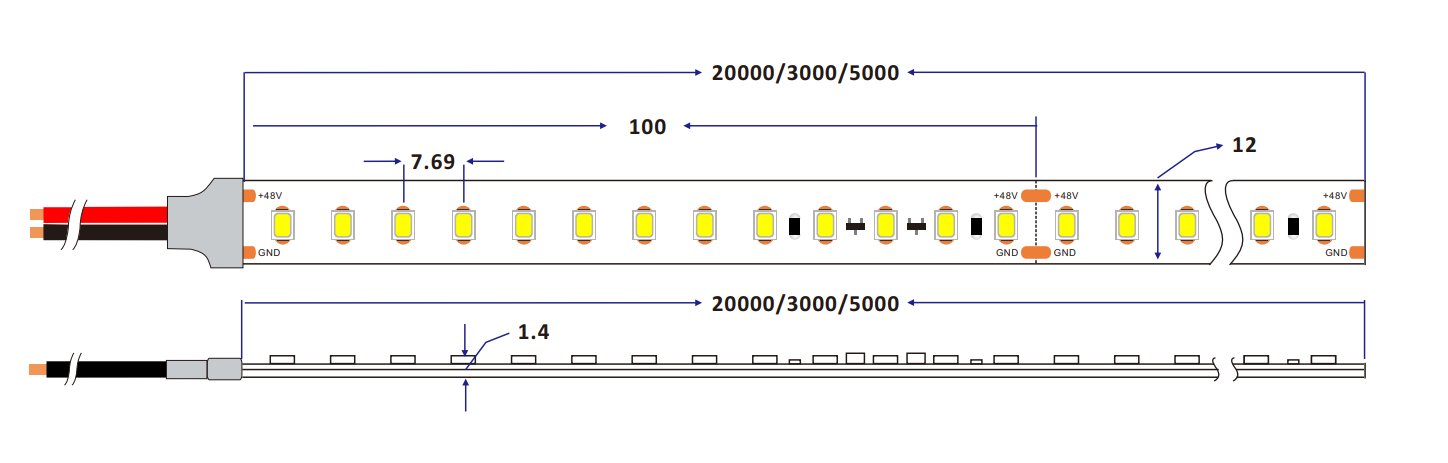

Dimension of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

Installation of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip


Connection of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip
Connection of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

Application of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip



Application of 50m 30m 20m per roll 2835 130LED/M white ultra length led strip

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
