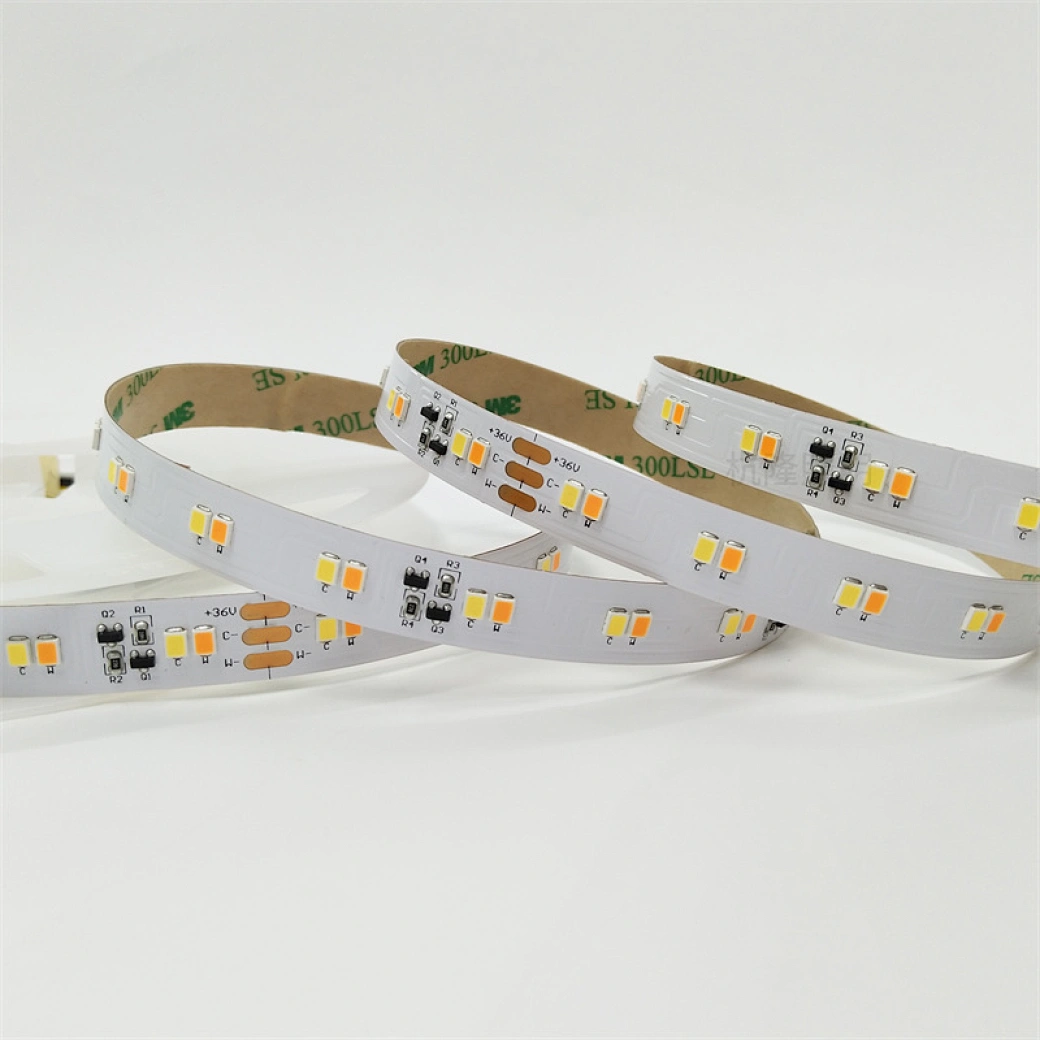

30m/roll 2835 dual color long lasting led strip lights
30m/roll 2835 dual color long lasting led strip lights
30m/roll 2835 dual color long lasting led strip lights
Model No: HR00-B36ATW108L30

30m/roll 2835 dual color ultra length led strip

DC36V, Ra90, 8W/M
Delivery :
FOB
minimum order :
200 meters
Supply Ability :
300000meters / Month
Stock Time :
7Day
Country of Origin :
Shenzhen China
Quantity :
Download:
Contact Now

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


certificate of 30m/roll 2835 dual color long lasting led strip lights



Specification of 30m/roll 2835 dual color long lasting led strip lights

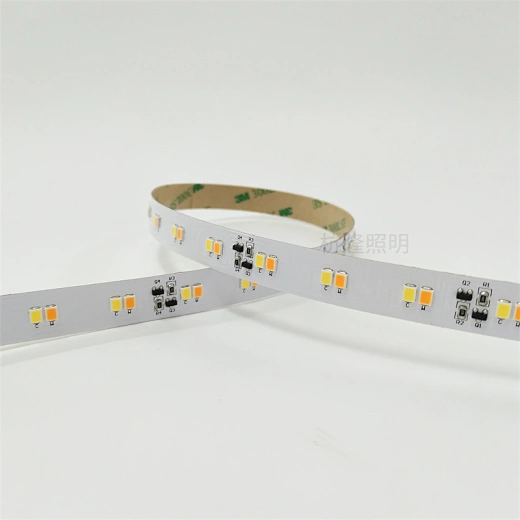

30m/roll 2835 dual color long lasting led strip lights

Strip Type2835 dual white led lights long strips
LED Type2835 led
LED QTY108LED/M
Cutting Length16.67cm
VoltageDC36V
CRI80 Or 90
CCT2700K+6000K
Power8W/M
Brightness800LM/M
Dimension30000*12mm
IP RatingIP20/IP65/IP66/IP67/IP68
Beam Angle120°
Lifespan30000hrs
Warranty3year




Dimension(mm)


dimension of 30m/roll 2835 dual color long lasting led strip lights

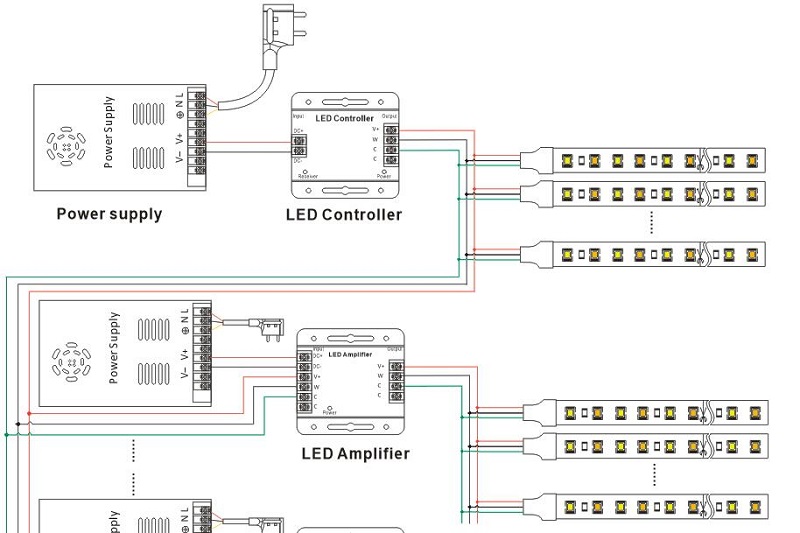

Installation of 30m/roll 2835 dual color long lasting led strip lights


1） Standard Connection
Standard Connection of 30m/roll 2835 dual color long lasting led strip lights

2）Long Connection

Long Connection of 30m/roll 2835 dual color long lasting led strip lights

3）DMX Connection


DMX Connection of 30m/roll 2835 dual color long lasting led strip lights

IP Rating Available


Waterproof Version of 30m/roll 2835 dual color long lasting led strip lights

Specification of waterproof 30m/roll 2835 dual color long lasting led strip lights


Application of 30m/roll 2835 dual color long lasting led strip lights


Application of 30m/roll 2835 dual color long lasting led strip lights

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
