Model No: HR00-sm16512-rgbw-60-24

SM16512 RGBW 24V 60leds/m Led strip

The best manufacturer & supplier of sm16512 rgbw dmx512 pixel led tape led ribbon light from China. ISO9001:2015, ETL, CE, RoHS, etc. OEM & ODM available.
Delivery :
EXW
minimum order :
30 meters
Supply Ability :
600000meters / Month
Stock Time :
7-12Day
Country of Origin :
Shenzhen
Quantity :
Download:
Contact Now
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

sm16512 led ribbon


Feature of sm16512 led ribbon

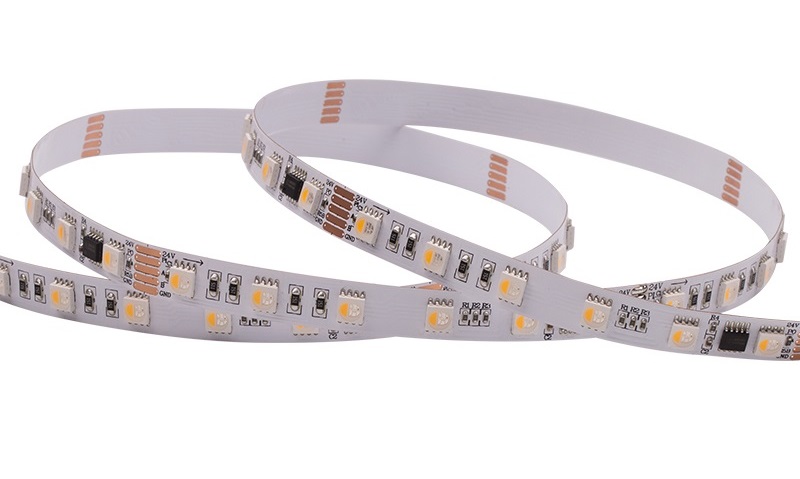

sm16512 led rbbon

For DMX512 led strip:

1. Standard DMX512 signal, more stable signal transmission compare to SPI signal
2. No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi point damage does not affect other parts of the strips and continue work, etc.

3. DC24V design to allow a longer connection, more convenient during installation
4. It can work with Madrix and some DMX controllers to program
5. Only 10mm width in PCB, suitable for more types of aluminum profile
6. RGBW, 4in1 color, more colors compare to RGB



Specification

Item
Specification
Item
Specification
Item Name
sm16512 led ribbon
Light Source
5050 RGBW 4in1
IC Type
SM16512
IC QTY
10pixels/M
LED QTY
60leds/M
IC Location
External IC
Color
RGBW Dream Color
Voltage
DC24V
Working T
-20 to 45 Degree
Power
19.2W/M
PCB color
Black/White
Angle
120 degrees
IP Rating
IP20/65/66/68
Cutting Unit
10cm
Package
Anti-Static Bag
OEM&ODM
Available
Dimension
5000mm*10mm
Lifetime
50000hrs
Certificate
ETL, CE, RoHS, Reach...
Warranty
3 years



Dimension (mm)

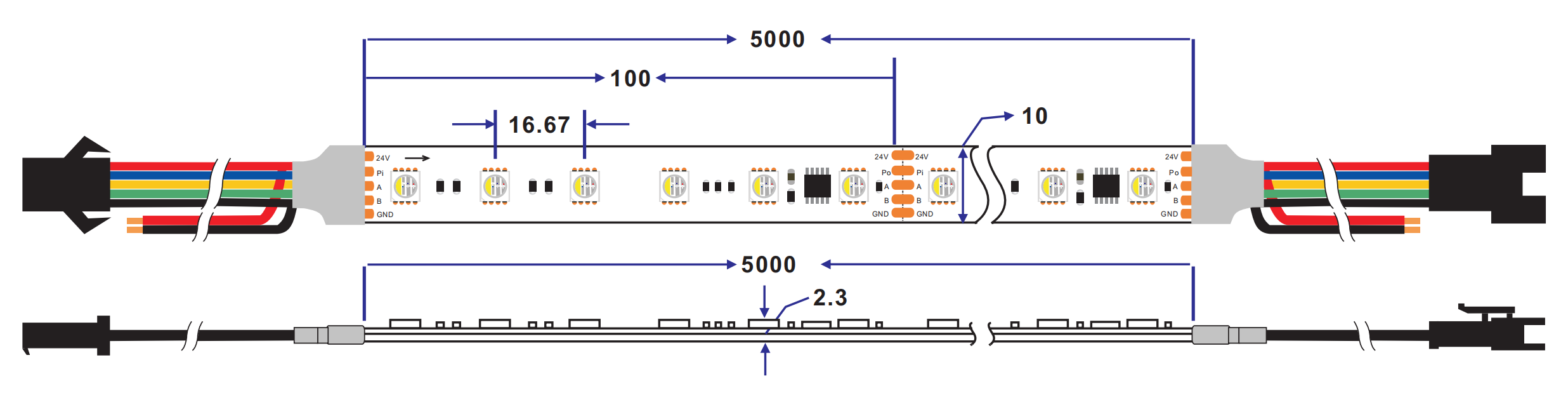

DIMENSION OF sm16512 led ribbon


 Connection

IP Rating

Waterproof Version of 2216 288LED/M led strip

Specification of waterproof 2216 288LED/M led strip

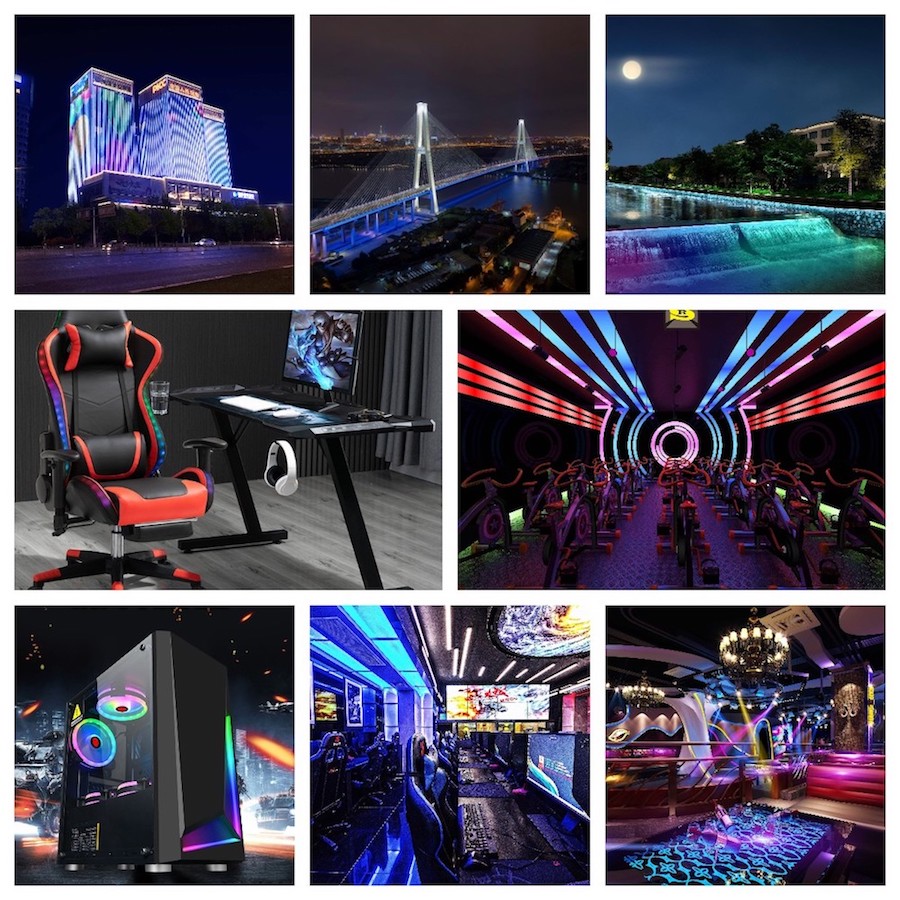

Application of sm16512 led ribbon

application of sm16512 led strip

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
