Power Supply

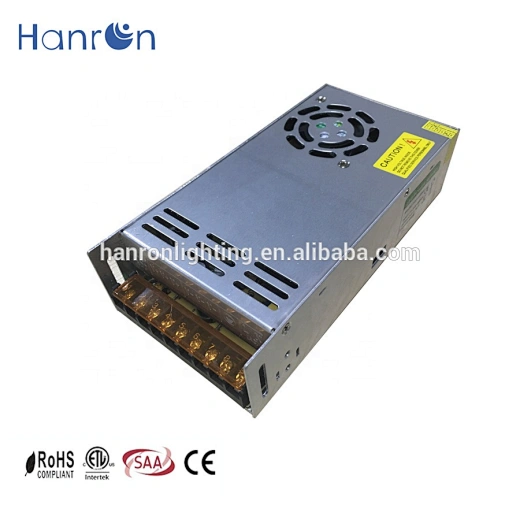

Model No: HR02-24V400WA

12V 24vdc switching switch mode LED dc Power supply for led strip light

China led switching power supply manufacturer for led strip
Delivery :
FOB
minimum order :
1 piece
Supply Ability :
10000piece / Day
Country of Origin :
shenzhen
Quantity :
Download:
Contact Now
  • Place of Origin:CN
  • Output Power:301 - 400W
  • Output Type:Multiple
  • Brand Name:Hanron
  • Model Number:HR02-24V400WA
  • Output Voltage:DC12V/24V
  • Output Frequency:0Hz
  • Output Current:13.3


Product Description of switching power supply


1). Features

Easy to connection and simple to use

Protection: Overload / over voltage / short circuit protection

Working Temperature: 0 - 40 Deg.C

Storage Temperature: -20 - 60 Deg.C

Ambient Humidity: 0 - 95 percent non-condensation

2). Applications

Our switch led power supply are designed specifically for LED strip light.

They are of high quality and good solution for 3825 5050 5630 3014 2835 7020 LED strip light, wireless router, ADSL Cats, HUB, switches, security cameras

3). Parameters

NO.Item No.Unit Weight (Kg)Input Voltage (V)Output Voltage (V)Ouput Current (A)Power (W)Wire RequirementIP Rating
1HR02-5V200WA0.70170V-264V/AC5VDC40A200WVED WireIP20
2HR02-5V300WA0.6790~130V/AC OR 170-264V/AC5VDC60A300WVED WireIP20
3HR02-12V350WA0.6790~130V/AC OR 170-264V/AC5VDC70A350WVED WireIP20
4HR02-12V15WA0.06100V-264V/AC12VDC1.25A15WVED WireIP20
5HR02-12V25WA0.05100V-264V/AC12VDC2.08A25WVED WireIP20
6HR02-12V36WA0.14100V-264V/AC12VDC3A36WVED WireIP20
7HR02-12V60WA0.22100V-264V/AC12VDC5A60WVED WireIP20
8HR02-12V100WA0.32100V-264V/AC12VDC8.3A100WVED WireIP20
9HR02-12V120WA0.32100V-264V/AC12VDC10A120WVED WireIP20
10HR02-12V150WA0.40100V-264V/AC12VDC12.5A150WVED WireIP20
11HR02-12V200WA0.50170V-264V/AC12VDC16.6A200WVED WireIP20
12HR02-12V250WA0.57170V-264V/AC12VDC20.8A250WVED WireIP20
13HR02-12V350WA0.6790~130V/AC OR170-264V/AC12VDC29.2A350WVED WireIP20
14HR02-12V400WA0.67170V-260VAC12VDC33.3A400WVED WireIP20

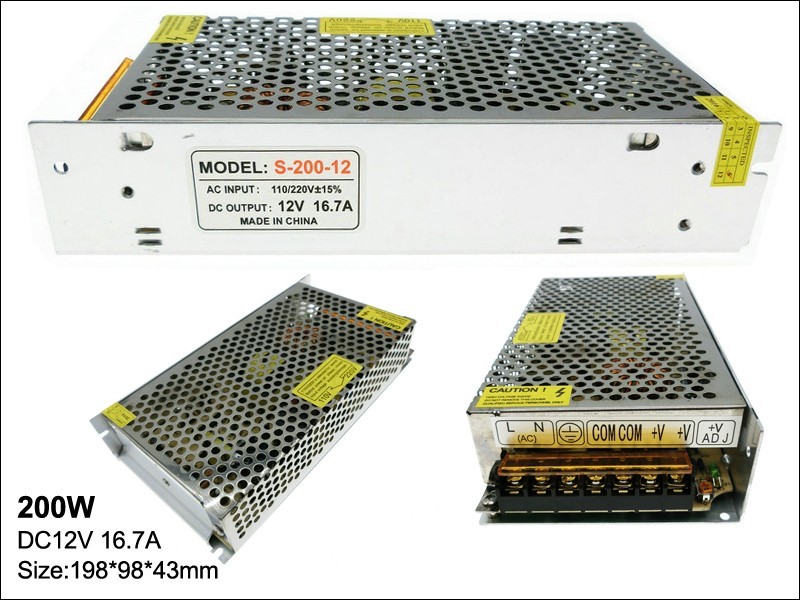

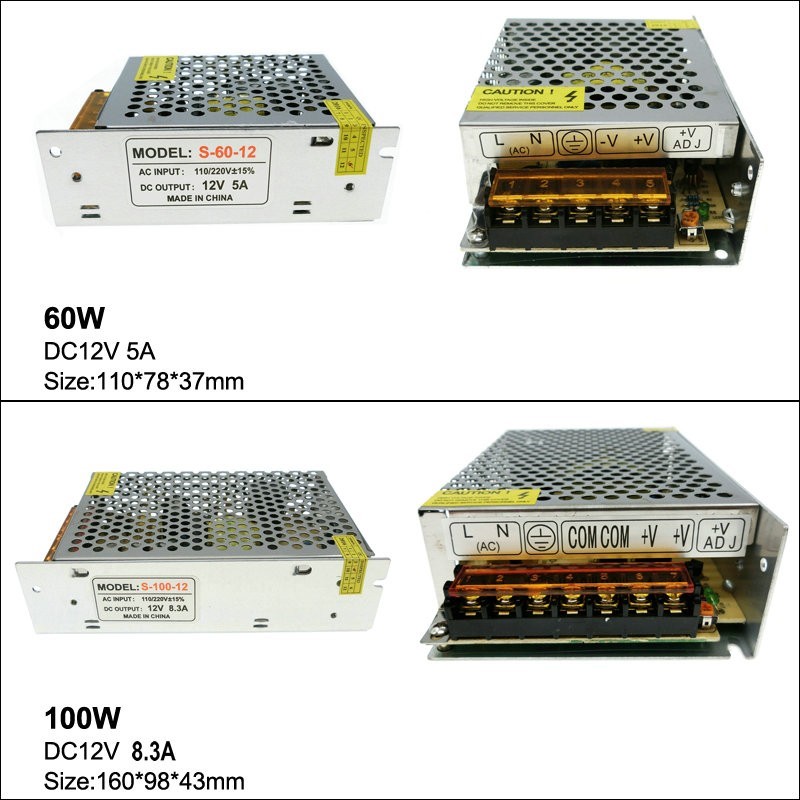

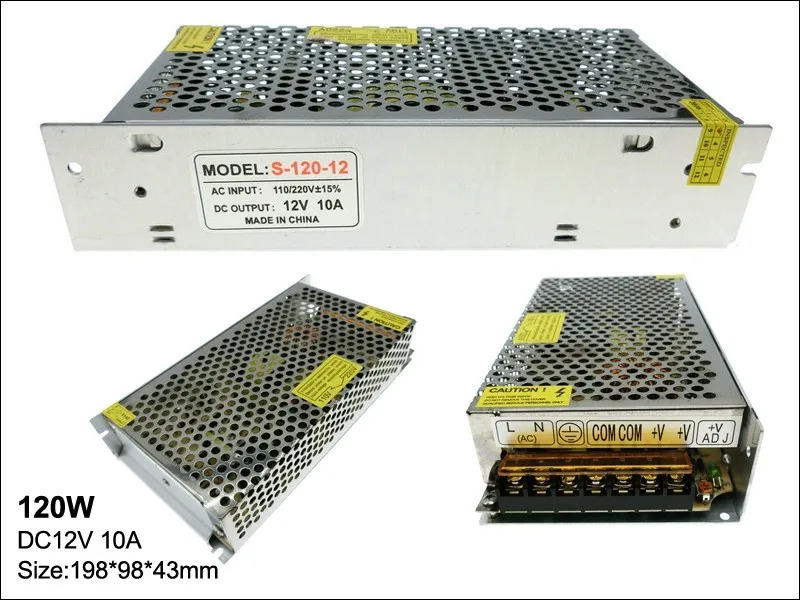

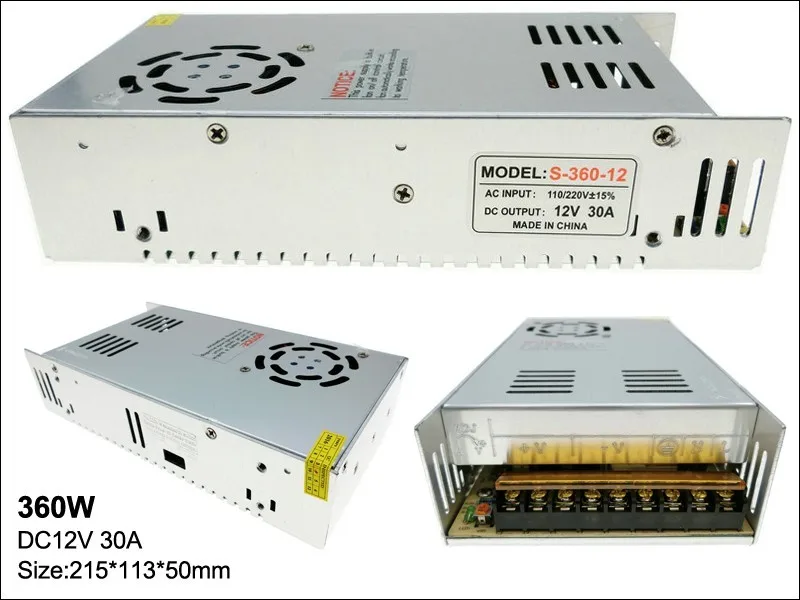

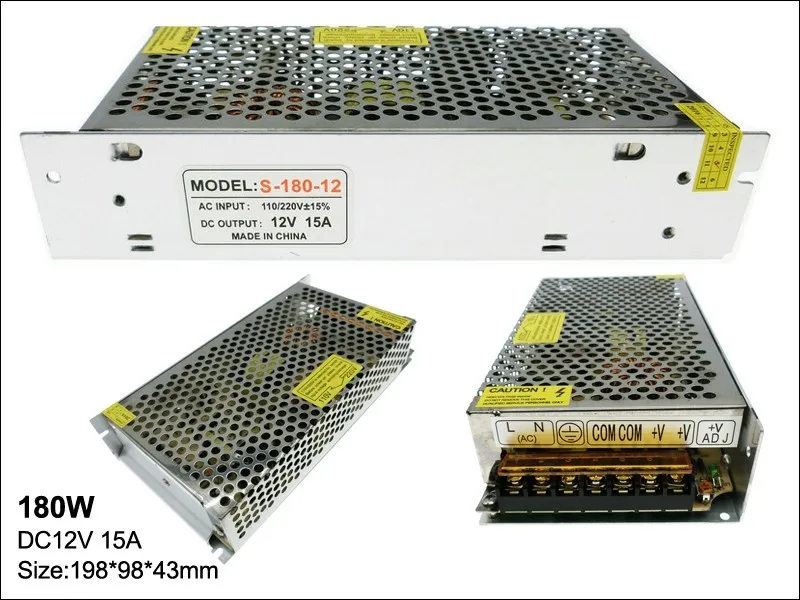

Product Pictures




HTB1k7JqKFXXXXXGXFXXq6xXFXXXI.jpgHTB1C9NnKFXXXXa9XFXXq6xXFXXXp.jpgHTB1YHhvKFXXXXboXpXXq6xXFXXXb.jpgHTB1mns.KpXXXXbYaXXXq6xXFXXXd.jpgHTB1IlBrKFXXXXc0XpXXq6xXFXXXQ.jpg



How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
